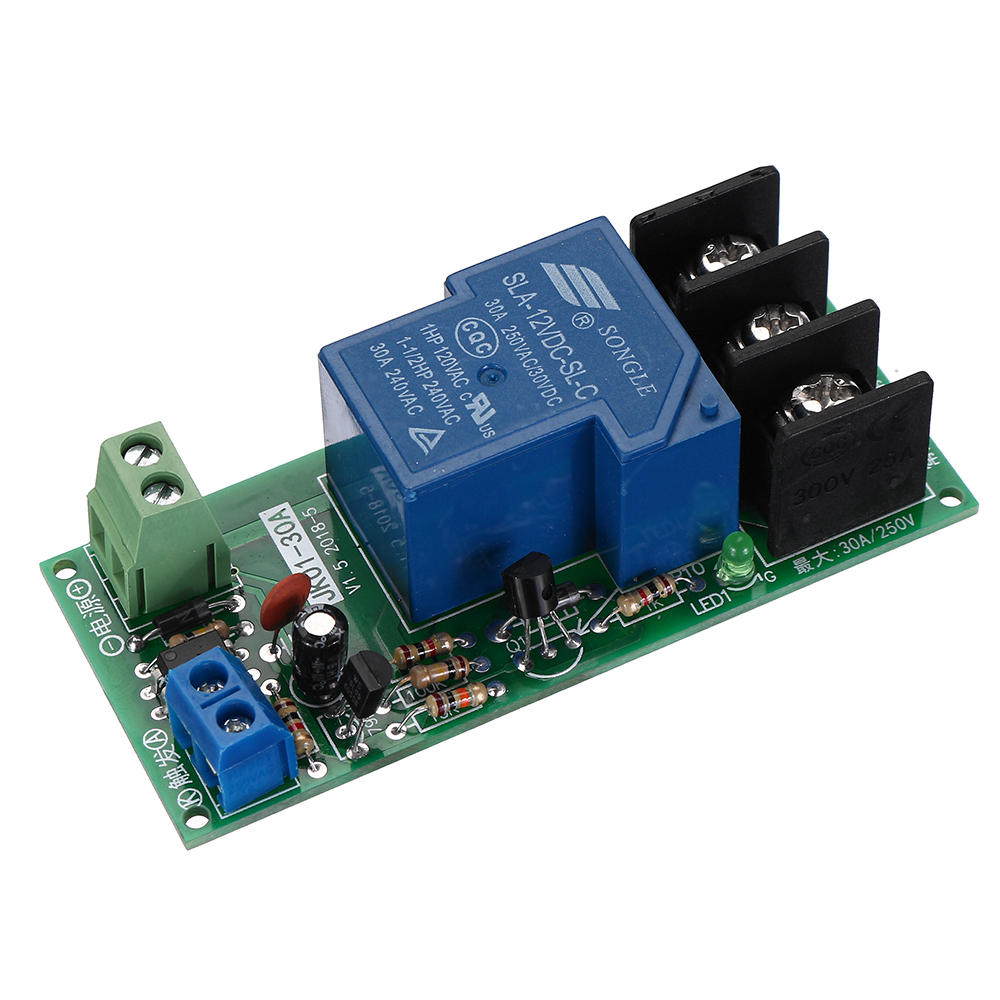

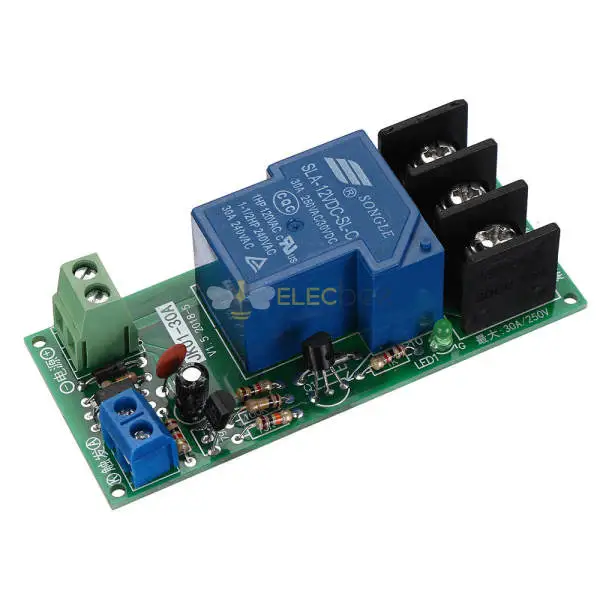

Elecbee JK01-30A 12V 0-60Min Trigger Delay Optocoupler Isolation Multi-function Relay Module 30A Timer Relay

SKU: EB0046195

Favorites

Key Features

xa0

- The delay length setting requires a soldering iron to be short-circuited according to the time value in the table.

- When all the short contacts are disconnected, the trigger is bistable, that is, the trigger is triggered, and then the trigger is disconnected.

- The control signal is triggered, and the signal is cancelled or maintained after the trigger does not affect the delay.

- Trigger again during the delay and will re-clock

- If the button is shorted, each time the control panel is powered up, a trigger delay action will be generated, which is equivalent to pressing the trigger button once.

- Module board size: 82mm x 35mm

- This module has reverse power protection.

xa0

Specifications

Show Similar Products >

Attribute

Value

Model

JK01

Show Similar Products >

Description

1 x JK01-30A 12V 0-60Min Trigger Delay Optocoupler Isolation

JK01-30A-12V-0-60Min-Trigger-Delay-Optocoupler-Isolation-Multi-function-Relay-Module-30A-Timer-Relay-1593286
