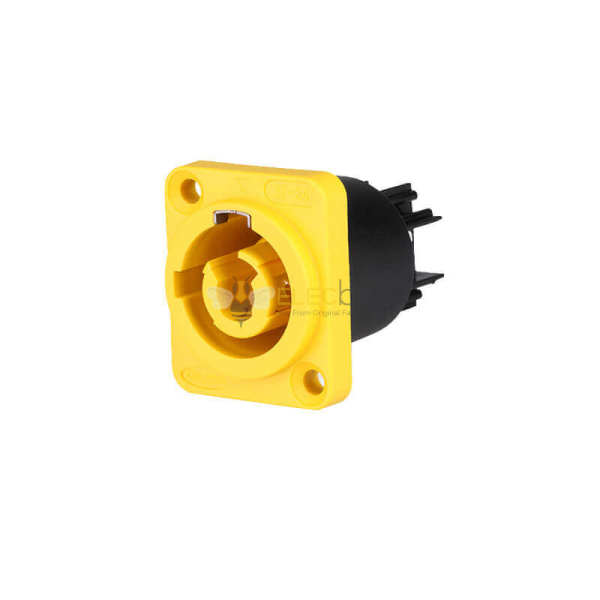

Elecbee IP65 Plastic Screw Led Screen Square Socket 3 Pole Lockable
SKU: EB-046-0021
Favorites
Key Features
YF-24 connectors
Locking 3-pin device connector with contacts for neutral, straight, pre-installed safety ground.
Large current capacity 20A/250VAC.
Use different colors (blue input) for input and output (grey output) control to avoid the possibility of matching each other.
Quick and easy locking system.
Use American imported beryllium copper for silver plating double quality assurance, increase current stability and effective temperature rise control.
Waterproof products meet IP68/IP67 protection level in assembled state.
Rated current: 20A rms.
Unique inner core copper pin anti-export design.
Also it is widely used in audio, video and power devices.
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Flange
Termination
Screw Terminal
Contact Type
Female Pin
Number of Positions
3 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+80℃
Ingress Protection
IP44
Rated Current
20A
Rated Voltage
500VAC
Connector Series
YF
Color
Yellow
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Engineering Plastics
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
9mm~11mm
Description
