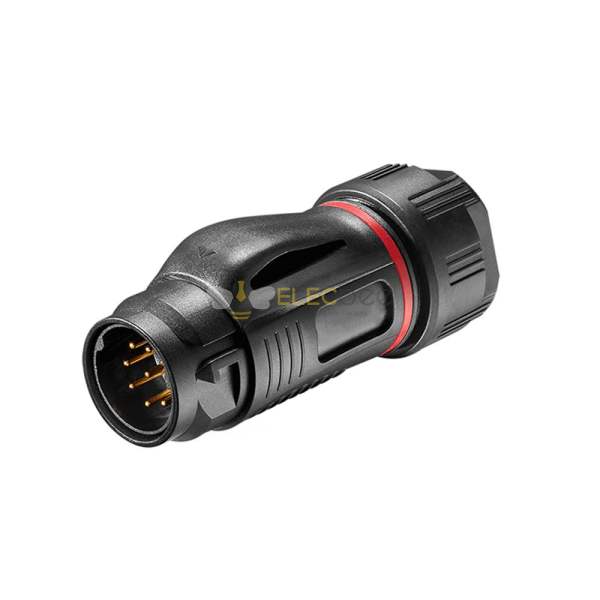

Elecbee Industrial Connector BD20 Waterproof 9-Pin Aviation Plastic Shell Male Plug
SKU: EB-045-0038
Favorites
Key Features
- Designed as a BD20 9-pin male plug, this circular connector supports dependable power or signal interconnection for industrial systems.
- Rated for 5A at 250VAC, it uses solder cup termination for 22–20 AWG conductors and is configured for cable-mount installation.
- The engineering-plastic shell, engineering-plastic insulation, and copper alloy contacts with a gold-plated finish provide a durable electrical interface, while the bayonet fastening system helps maintain a secure connection.
- With an IP67 ingress-protection rating and an operating temperature range of -40°C to +85°C, this waterproof circular connector is suitable for industrial cable assemblies, equipment wiring, and detachable power or signal connections.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder Cup
Contact Type
Male Pin
Number of Positions
9 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
250VAC
Connector Series
BD20
Color
Black
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Engineering Plastics
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
22AWG~20AWG
