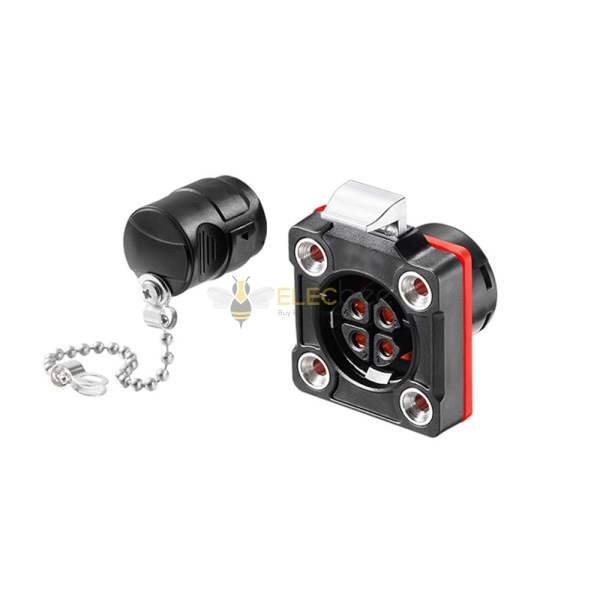

Elecbee Industrial Connector Bd20 Waterproof 4-Pin Aviation Plastic Shell Female Socket
SKU: EB-045-0043
Favorites
Key Features
- This BD20 4-pin female receptacle provides a compact circular interface for reliable power or signal connection in industrial equipment.
- Rated for 20A at 300VAC, it uses solder cup termination for 14–12 AWG conductors and is configured for panel-mount installation.
- The engineering-plastic shell, engineering-plastic insulation, and copper alloy contacts with a gold-plated finish provide a durable electrical interface, while the bayonet fastening system helps maintain a secure connection.
- With an IP67 ingress-protection rating and an operating temperature range of -40°C to +85°C, this waterproof circular connector is suitable for equipment panels, control enclosures, and fixed industrial power or signal interfaces.
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Female Pin
Number of Positions
4 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
20A
Rated Voltage
300VAC
Connector Series
BD20
Color
Black
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Engineering Plastics
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
14AWG~12AWG
Description
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
M
Perfect fit for my truck’s lighting system. The IP67 rating really holds up — survived heavy rain and dust without any issues. Easy one-hand connection is a big plus.
F
Solid build quality and the gold-plated pins ensure great conductivity. Took a few tries to fully seat the cable, but once connected, it's stable and waterproof as advertised.
S
Used in an industrial control box — compact size saves space and the plastic shell resists vibrations. Performs flawlessly in both high and low temps.
C
Works well overall, but the female socket feels slightly tight when mating. Waterproof seal is excellent though, and it’s clearly built to last.
A
Exactly what I needed for my tractor’s auxiliary lights. Quick plug design makes maintenance easy. Highly recommend for outdoor vehicle use.
