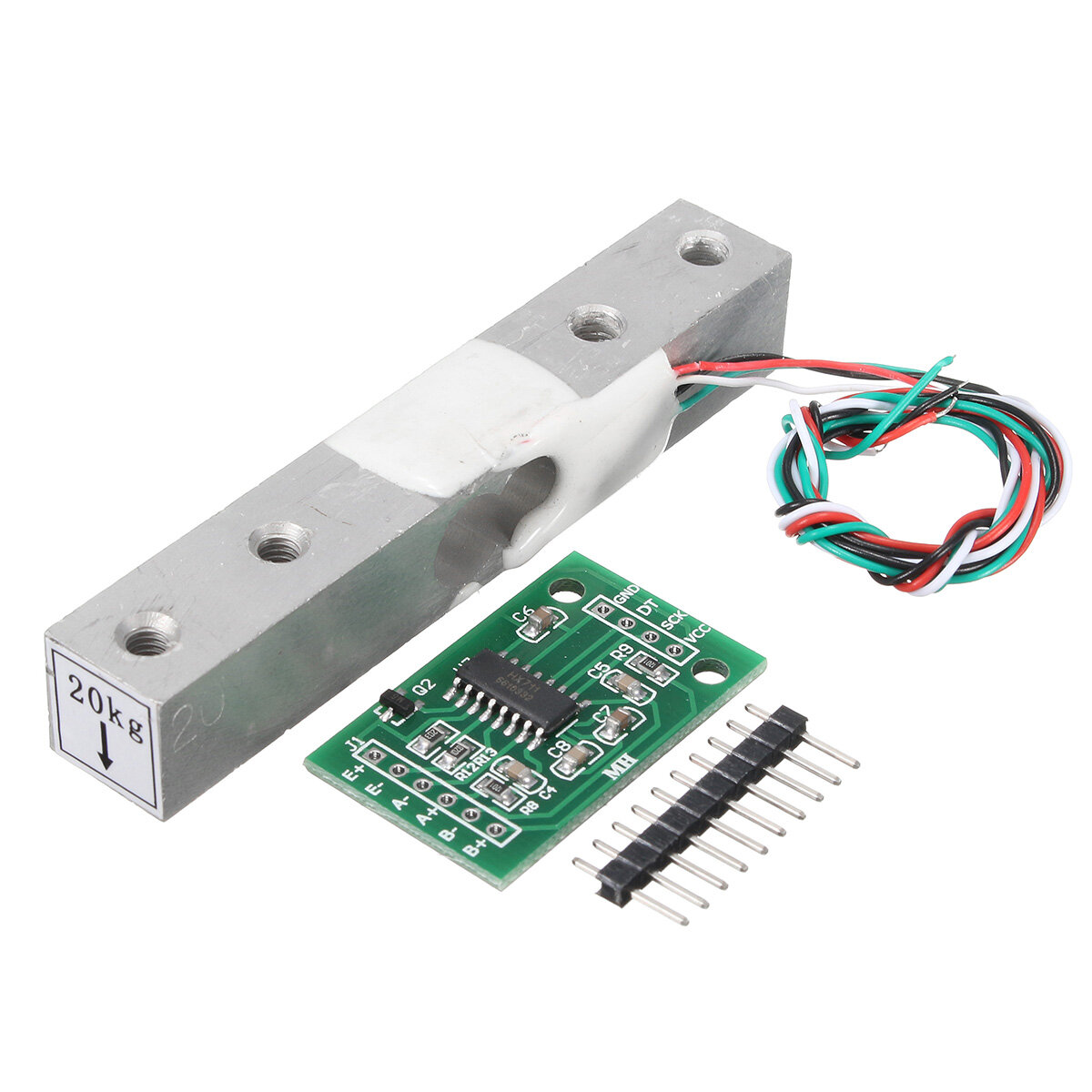

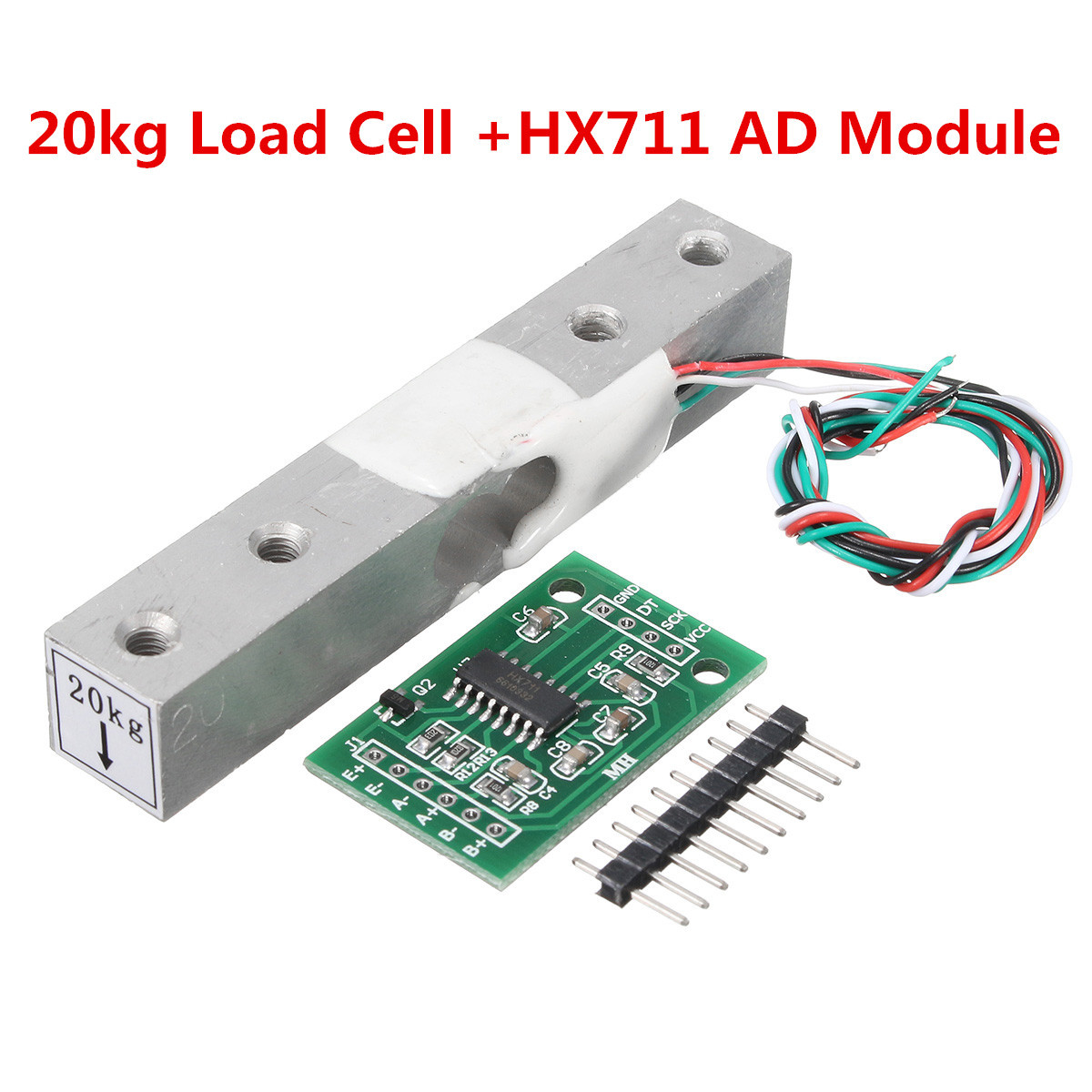

Elecbee HX711 AD Module and 20kg Aluminum Alloy Load Cell Kit High-Precision Weighing Sensor for Arduino DIY Scale and Micro-Testing Equipment 5V-10V

Building accurate digital scales or automated force-testing systems requires a seamless link between mechanical stress and digital data. This HX711 Module and 20kg Load Cell Kit solves the complexity of low-signal amplification, providing a high-precision weighing solution for developers and engineers. Whether you are designing micro-automatic testing equipment or a custom Arduino scale, this kit ensures professional-grade sensitivity and stability.

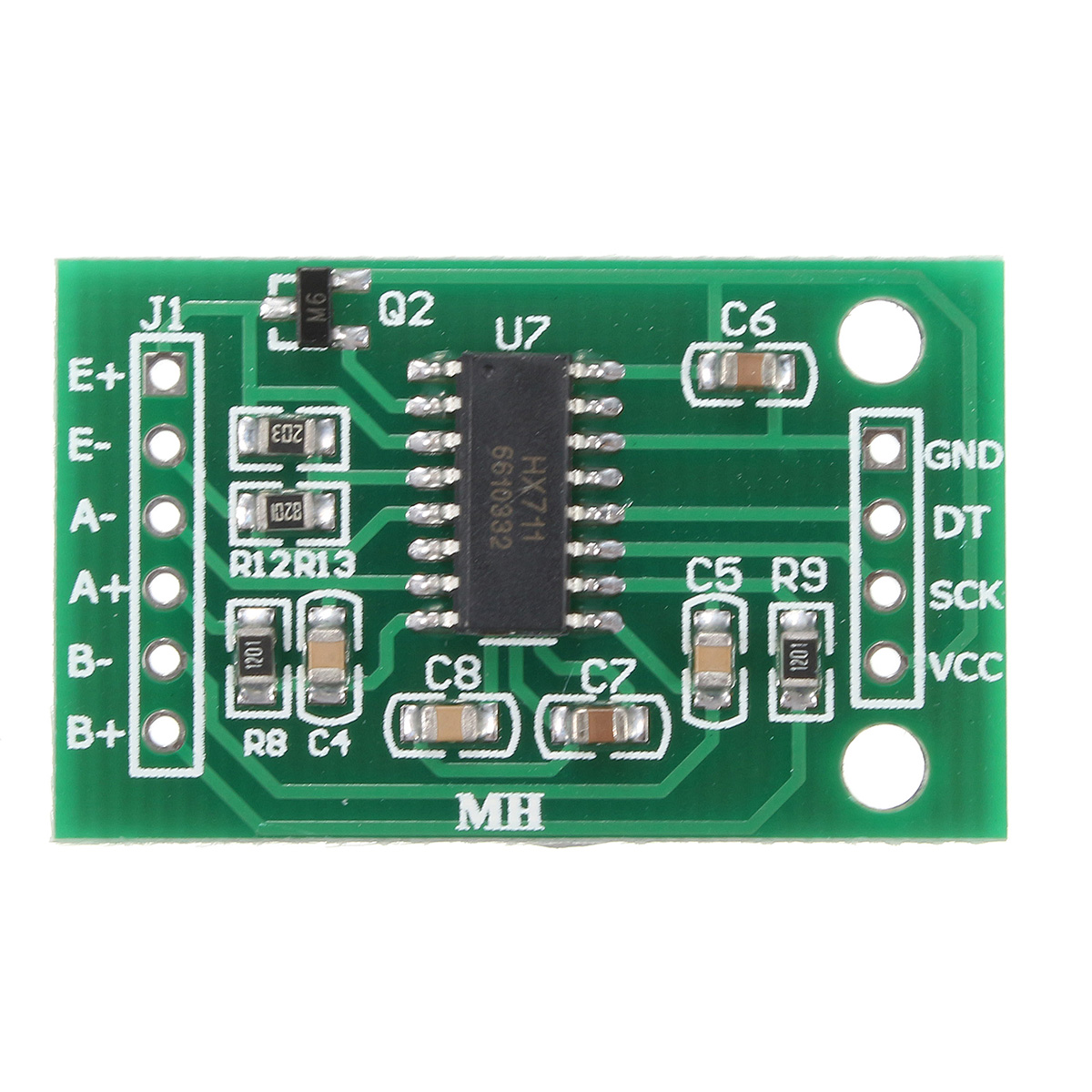

The hardware features a 20kg aluminum alloy sensor paired with a specialized 24-bit A/D converter chip. Key technical specifications include:

• Rated Output: 1.0 ± 0.1 mV/V
• Input/Output Impedance: 1000 ± 50Ω
• Excitation Voltage: 5-10V DC
• Safe Overload: 150% Full Scale
• Wiring: Red (E+), Black (E-), White (A-), Green (A+)

Designed for longevity, the industrial-grade load cell operates reliably between -10℃ and +50℃. The HX711 amplifier minimizes interference, making it perfect for pull pressure tests, push-pull equipment, and small-scale industrial weighing. The zero-point temperature drift of 0.2% F.S. guarantees that your measurements remain accurate over long-term monitoring tasks.

,,,,
