Elecbee 1Kg Load Cell Weight Sensor HX711 24 Bit ADC Amplifier Module

Elecbee 1Kg Load Cell Weight Sensor HX711 24 Bit ADC Amplifier Module

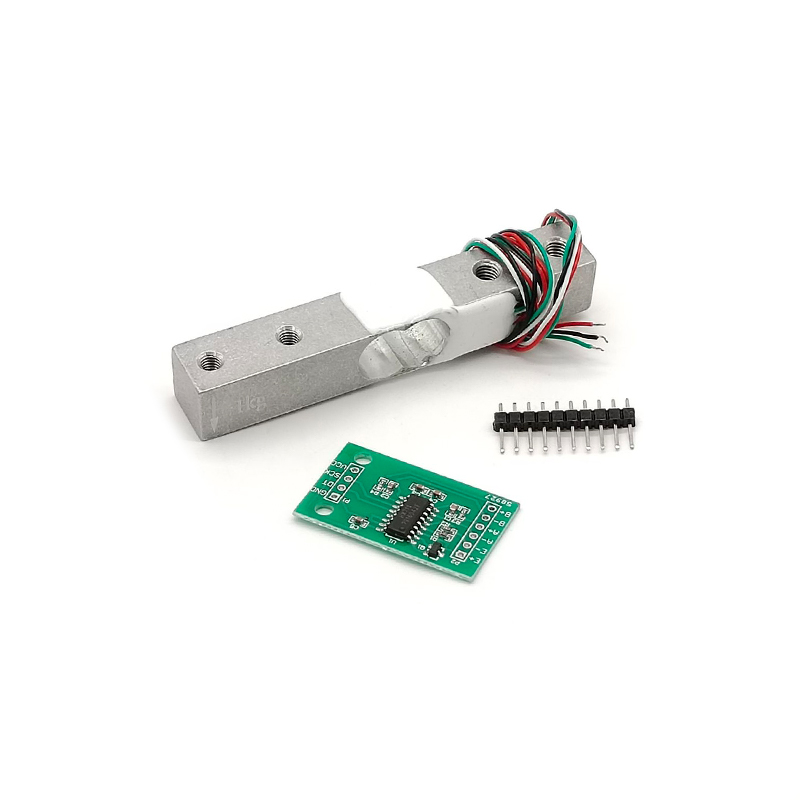

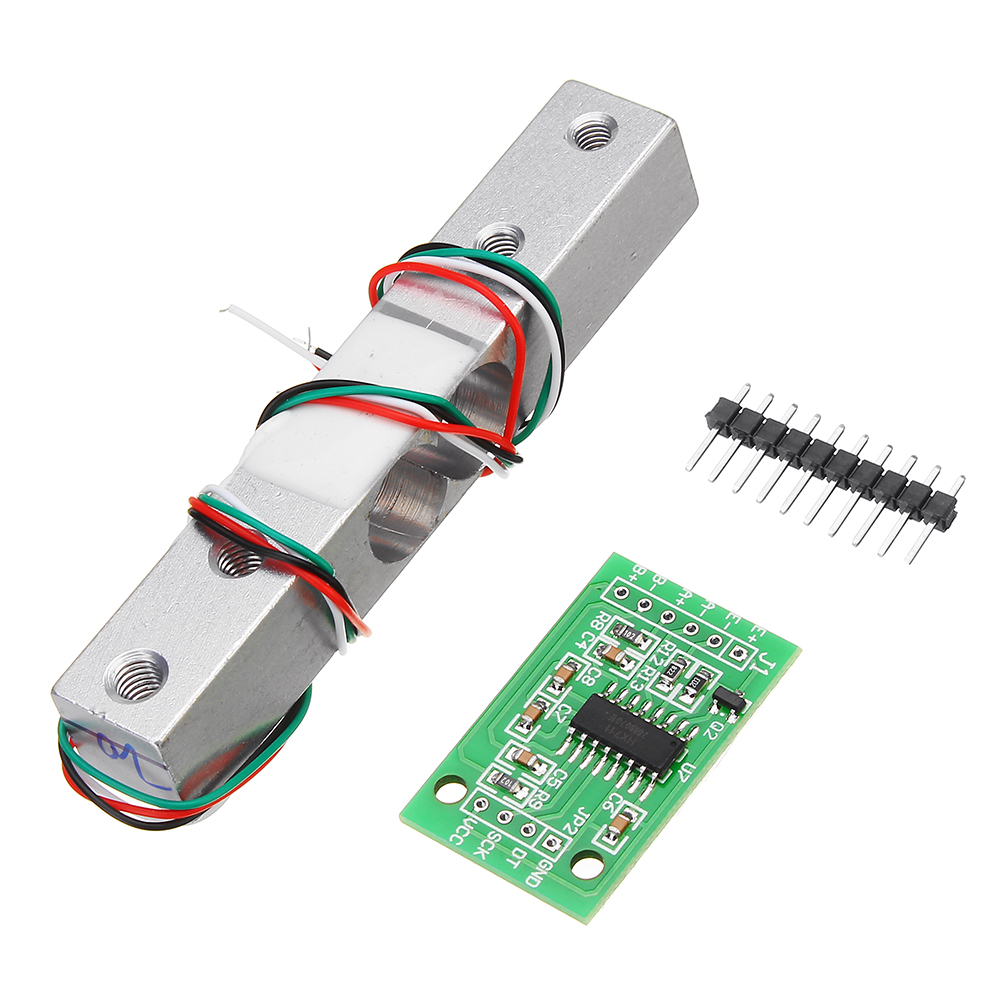

Elecbee 1Kg load cell weight sensor with HX711 24 bit ADC amplifier module supports high-precision weight measurement and force sensing for electronic scales, embedded systems, industrial automation, smart weighing devices, and Arduino development applications. The module converts low-level analog load cell signals into stable digital output for accurate measurement and monitoring systems.

Technical Specifications

• Brand: Elecbee
• Product Type: Load Cell Weight Sensor with HX711 ADC Module
• Load Capacity: 1Kg
• Signal Processing Chip: HX711 24 Bit ADC
• Sensitivity: 1.0±0.1mV/V
• Comprehensive Error: 0.05% F.S
• Non-Linearity: 0.05% F.S
• Repeatability: 0.05% F.S
• Hysteresis: 0.05% F.S
• Creep: 0.05% F.S/3min
• Input Resistance: 1000±50Ω
• Output Resistance: 1000±50Ω
• Recommended Excitation Voltage: 3V to 12V
• Working Temperature Range: -10°C to +50°C
• Overload Capacity: 150% F.S
• Insulation Resistance: ≥2000MΩ (100VDC)

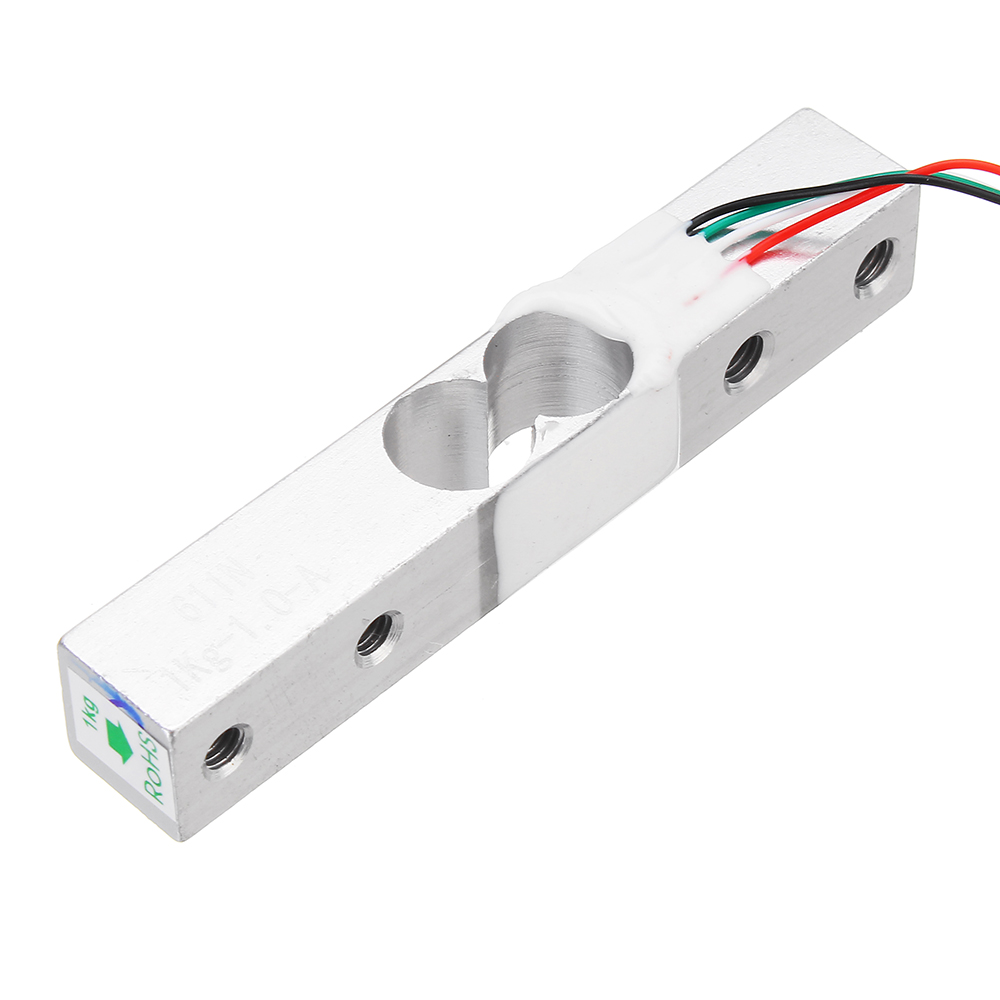

Sensor Signal Output

The load cell outputs analog voltage signals proportional to applied force or weight. Under DC5V excitation voltage, the full-scale output signal range is 0-5mV. Increased applied load produces corresponding voltage changes for accurate digital weight measurement and force sensing applications.

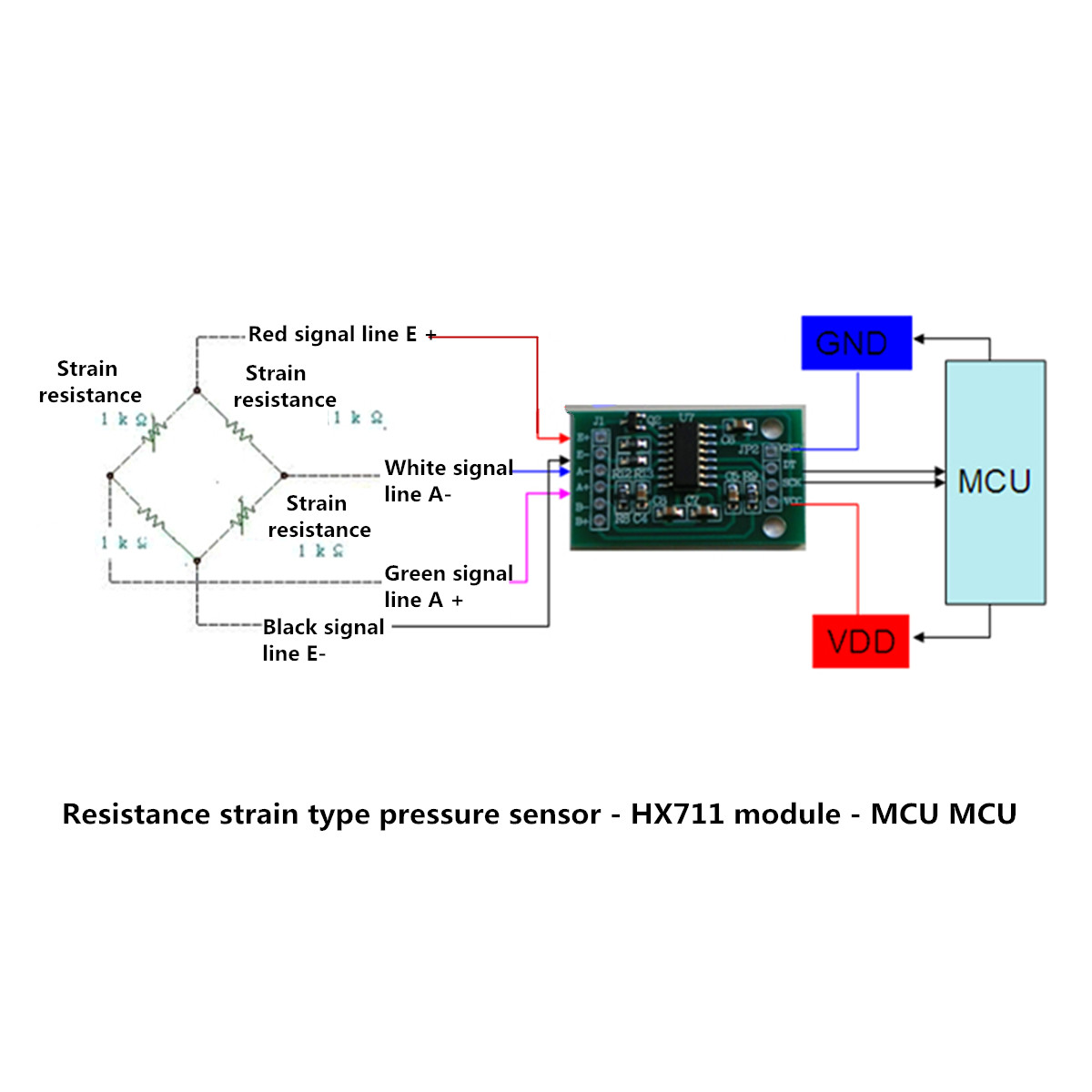

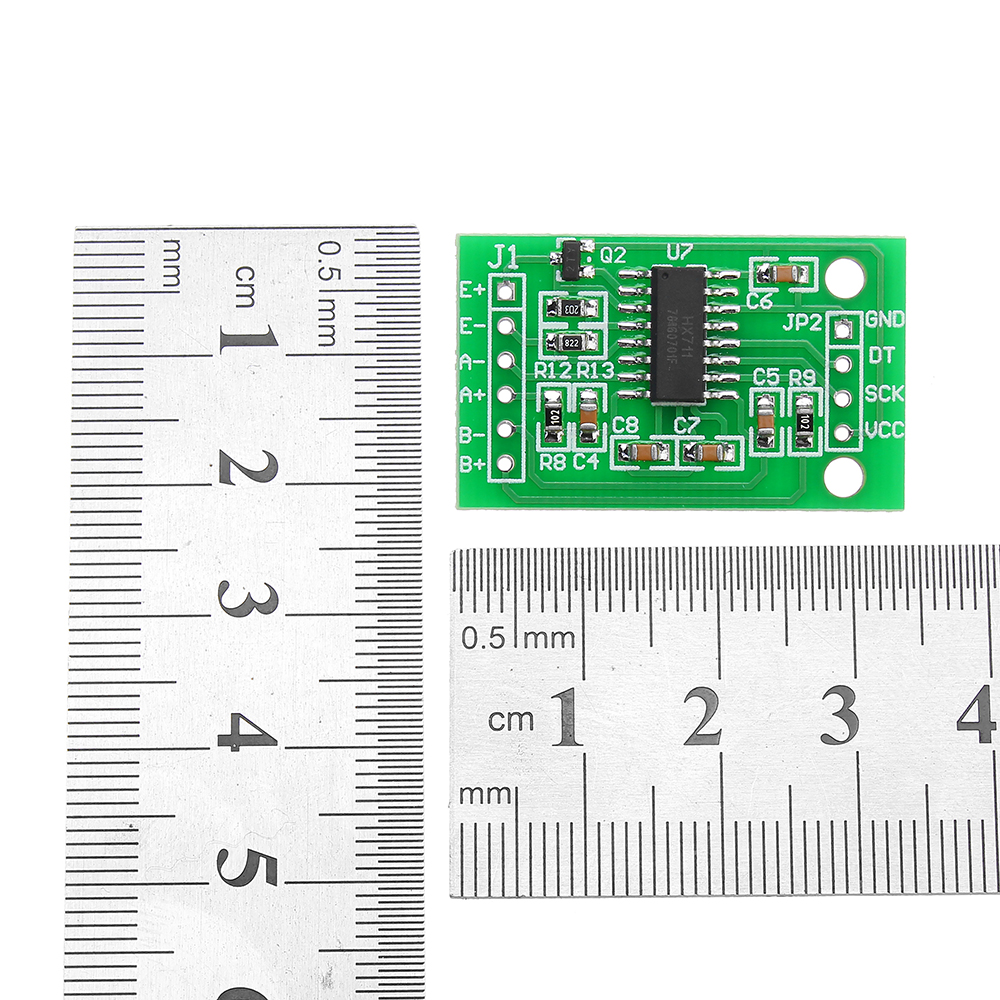

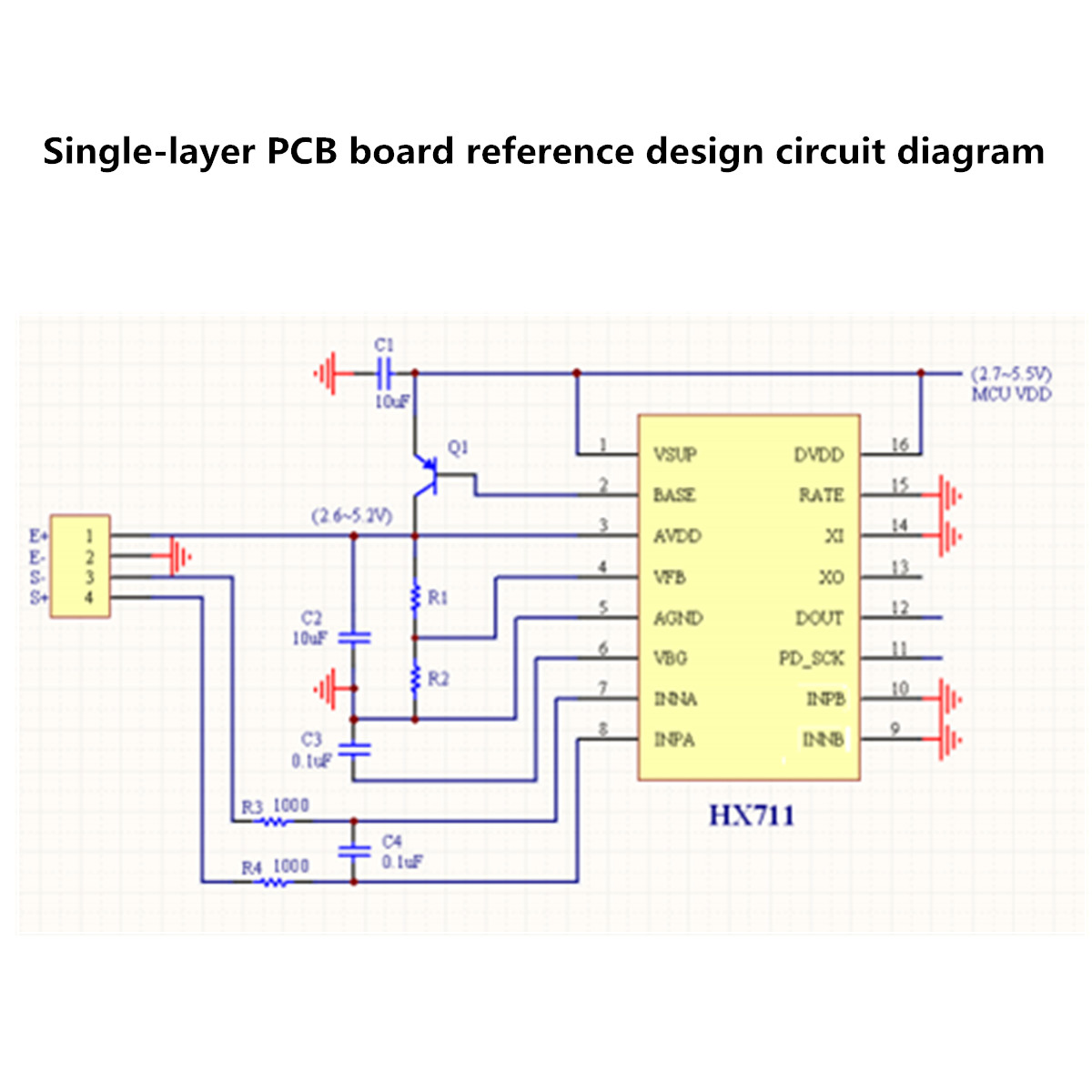

Wiring Information

• Red Wire: Excitation Voltage Positive
• Black Wire: Excitation Voltage Negative
• Green Wire: Signal Output Positive
• White Wire: Signal Output Negative

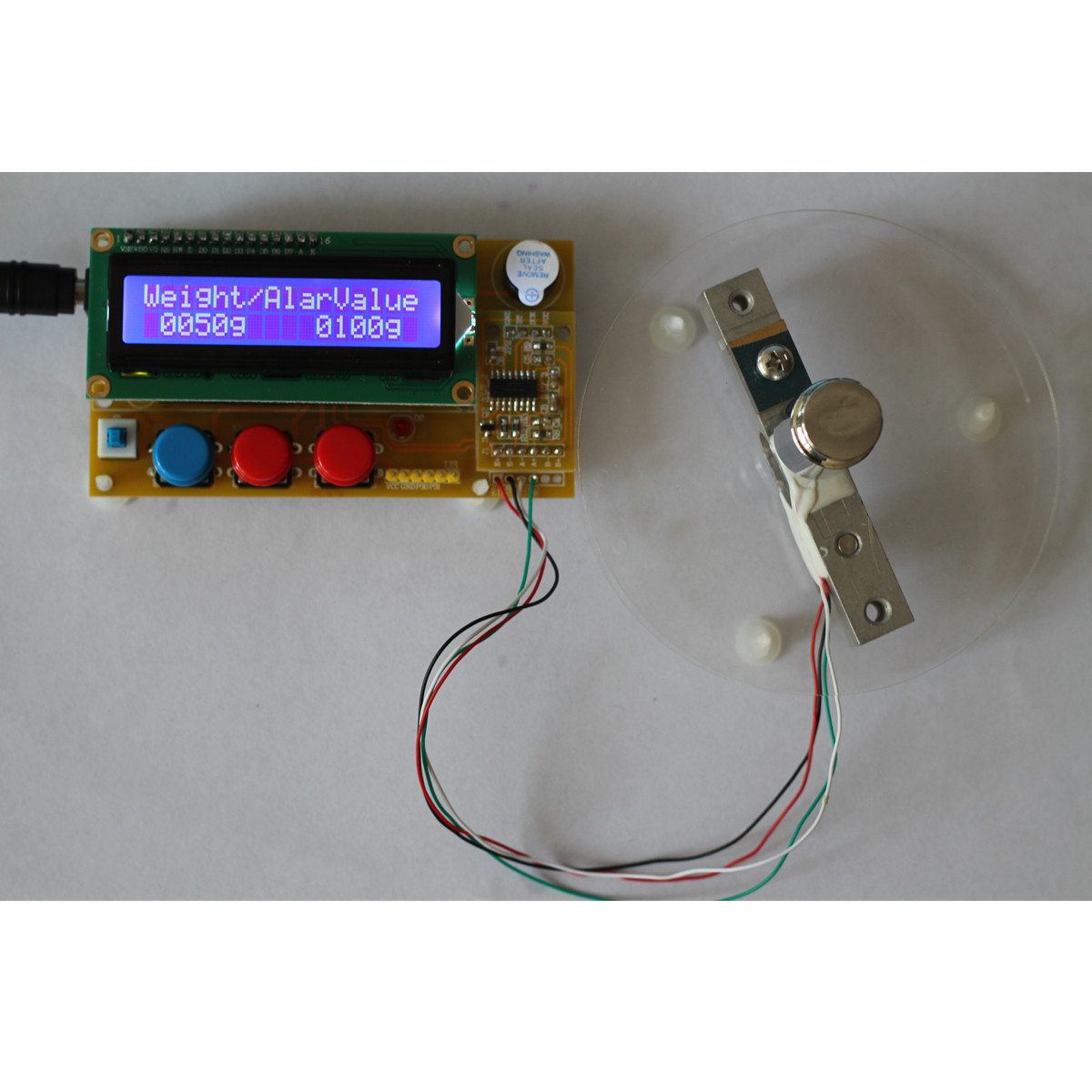

Application Scenarios

This HX711 load cell module is suitable for electronic scales, smart weighing systems, industrial sensing devices, Arduino projects, Raspberry Pi applications, embedded monitoring systems, force detection equipment, IoT devices, automation control systems, and DIY electronics development.

Reliable Measurement Performance

The module combines precision load cell sensing technology with HX711 24 bit analog-to-digital conversion to support stable low-noise signal acquisition and accurate digital measurement performance for industrial and embedded electronic systems.

Compatibility Information

Compatible with Arduino, Raspberry Pi, ESP32, STM32, embedded development boards, industrial automation systems, electronic weighing equipment, smart sensing devices, and automation monitoring applications.
