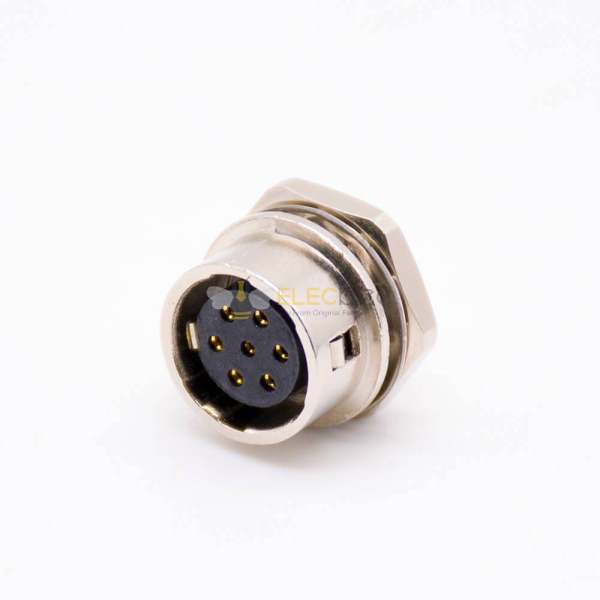

Elecbee HR10 Circular Connector Female Receptacle 7 Pin Straight PCB Through Hole Back Mount Circular Push-Pull Connector

SKU: HR10A-7R-7SA
Favorites
Key Features

Features:

  • Female Receptacle,7 Pin,Straight,PCB,Through Hole,Back Mount,HR10,Circular Push-Pull Connector
  • Push-pull self-locking connection is simple and fast;
  • Exquisite self-locking device, protect the connection is firm and reliable;
  • Reasonable key position design with anti-blind insertion function and multiple key position changes;
  • Miniaturized compact structure design can effectively save equipment space;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Female Pin
Shell Finish
Chrome Plated
Number of Positions
7 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-25℃~+85℃
Shielding
Unshielded
Rated Current
2A
Rated Voltage
100VAC, 140VDC
Connector Series
HR10
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Zinc Alloy, Brass
Packing
Individual Packaging
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PBT
Shell Size
7
