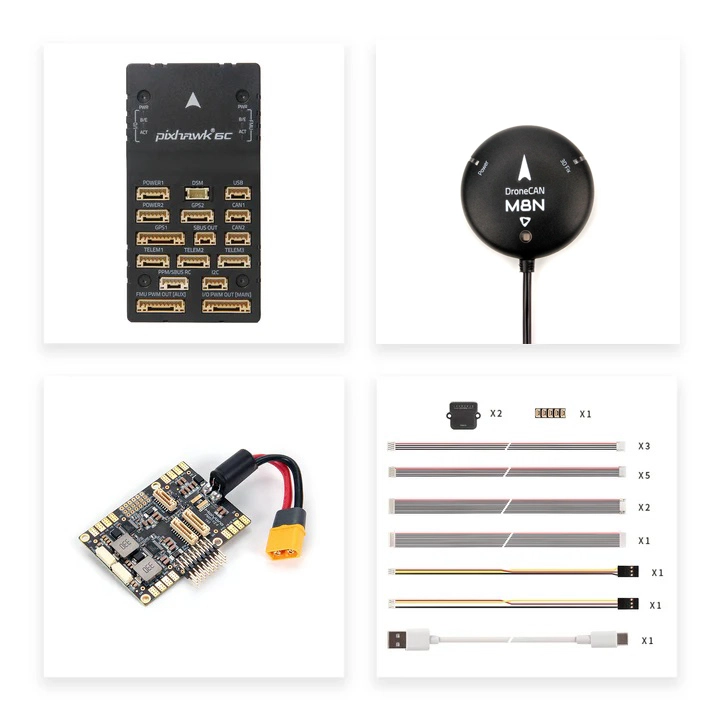

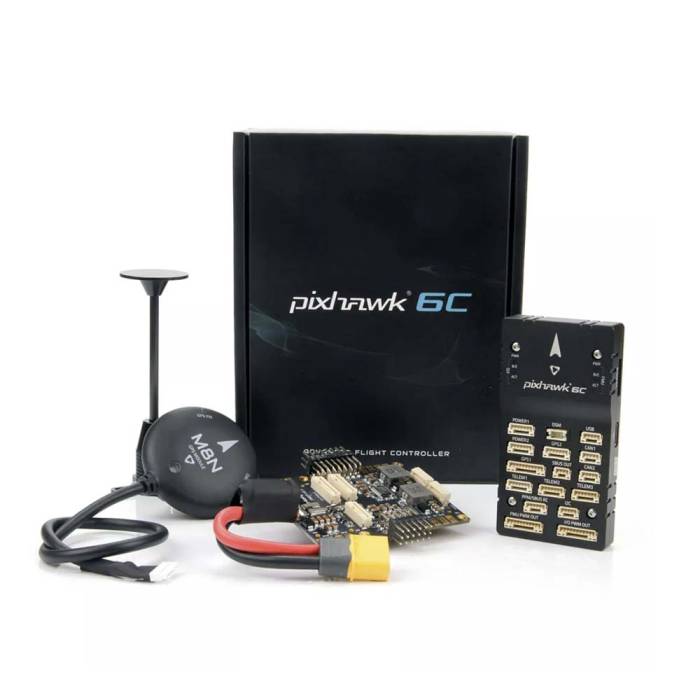

Elecbee Holybro Pixhawk 6C Flight Controller Kit with PM07 Power Module & M8N GPS

The Pixhawk 6C is the latest update to the successful family of Pixhawk flight controllers, based on the Pixhawk FMUv6C Open Standard and Connector Standard. It comes with PX4 pre-installed. Inside the Pixhawk 6C, you can find an STMicroelectronics based STM32H743, paired with sensor technology from Bosch & InvenSense, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk 6C's H7 microcontroller contain the Arm Cortex-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models. The FMUv6C open standard includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. The Pixhawk 6C is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Specification

Processors & Sensors

FMU Processor: STM32H743

32 Bit Arm Cortex-M7, 480MHz, 2MB memory, 1MB SRAM

IO Processor: STM32F103

32 Bit Arm Cortex-M3, 72MHz, 64KB SRAM

On-board sensors

Accel/Gyro: ICM-42688-P

Accel/Gyro: BMI055

Mag: IST8310

Barometer: MS5611

Electrical data

Voltage Ratings:

Max input voltage: 6V

USB Power Input: 4.75~5.25V

Servo Rail Input: 0~36V

Current Ratings:

Telem1 & GPS2 combined current limit: 1.5A

All other ports combined current limit: 1.5A

Operating Temperature: -25-85°C
