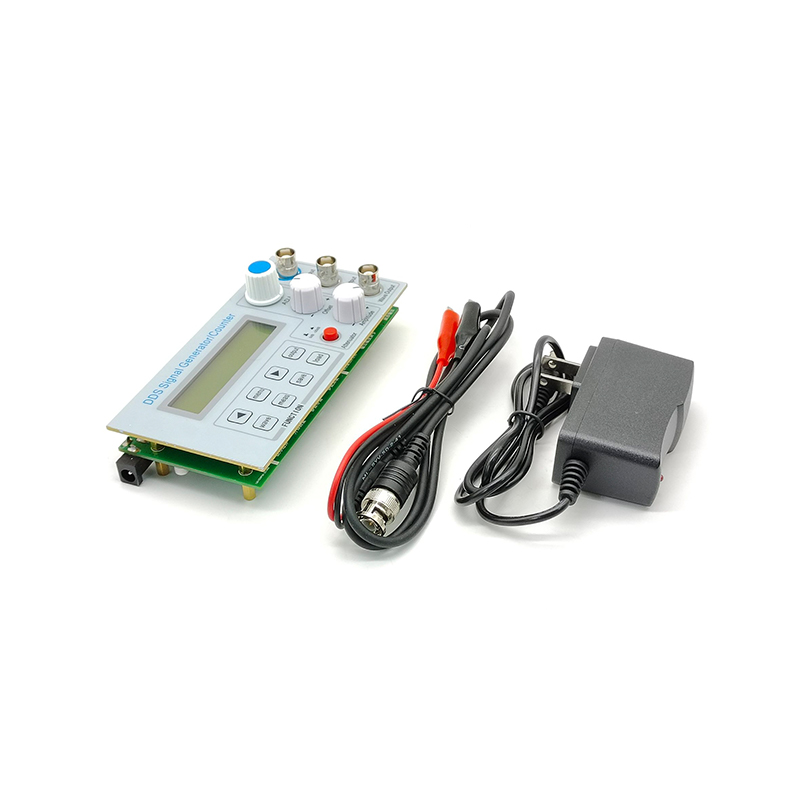

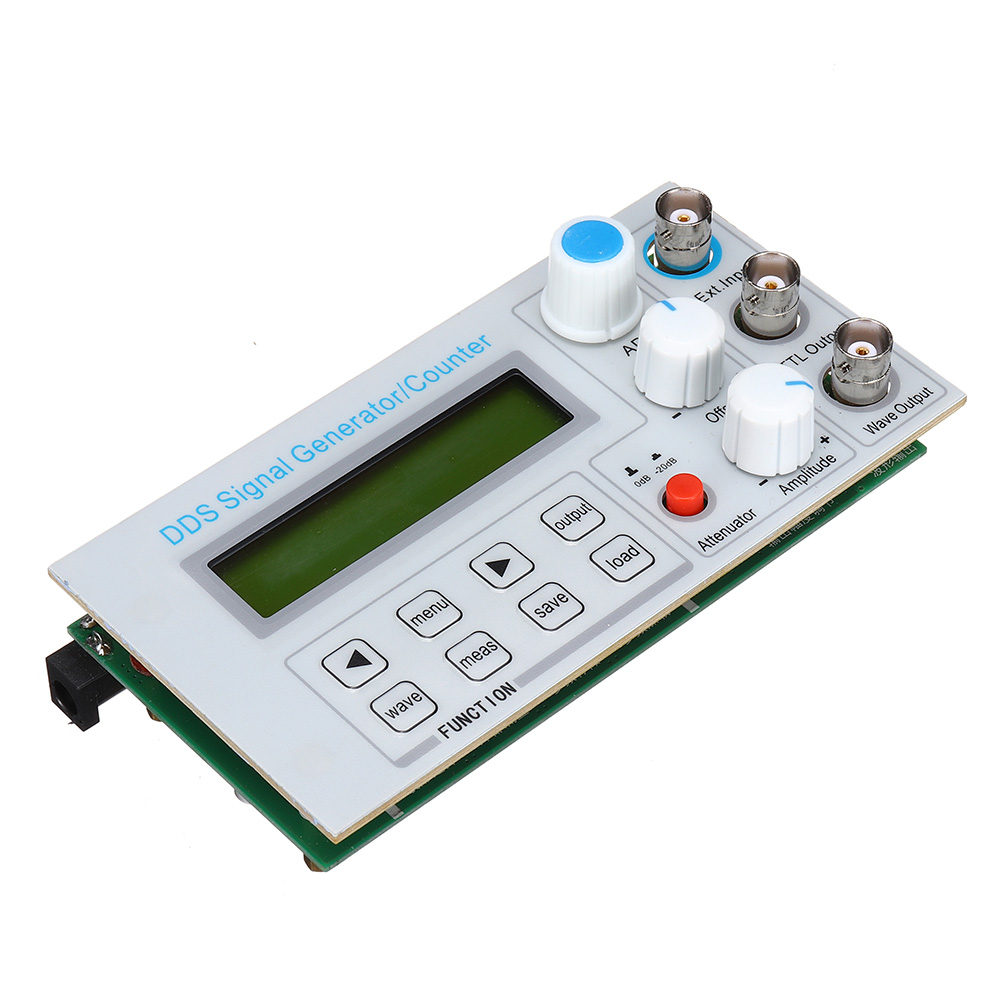

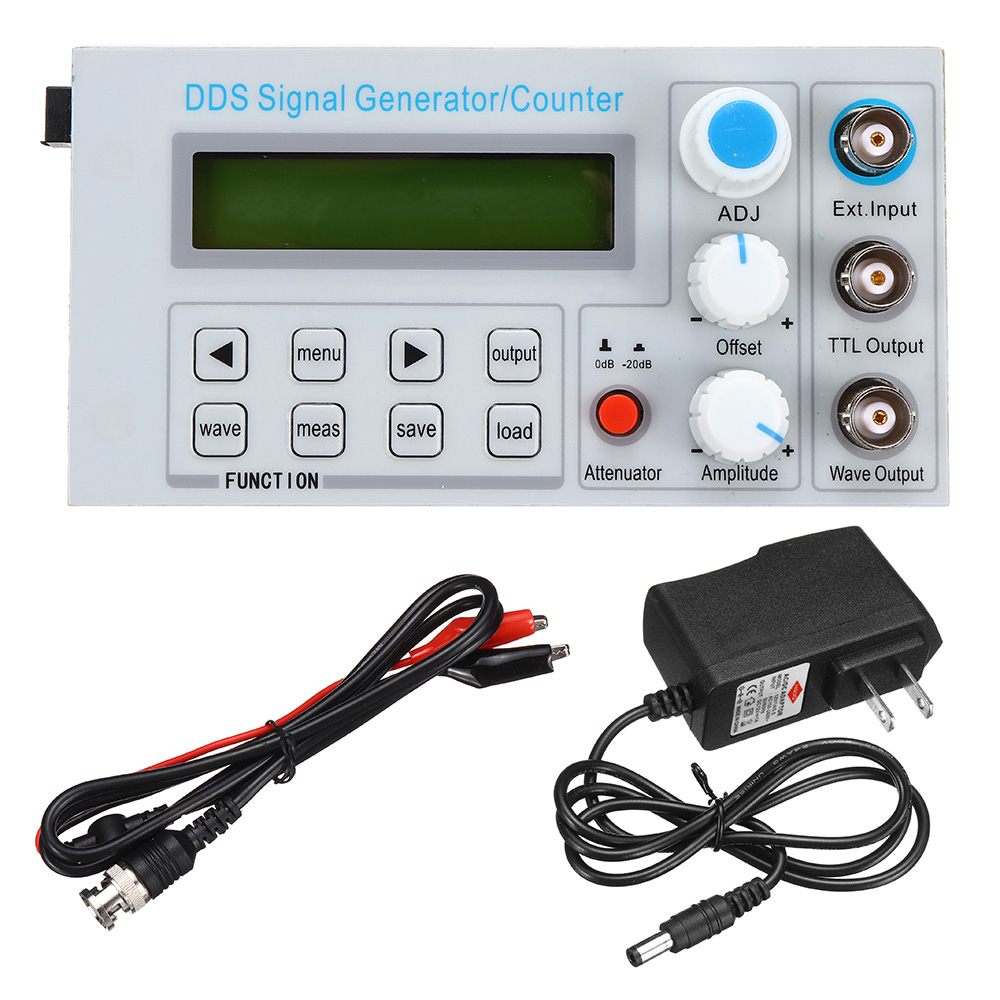

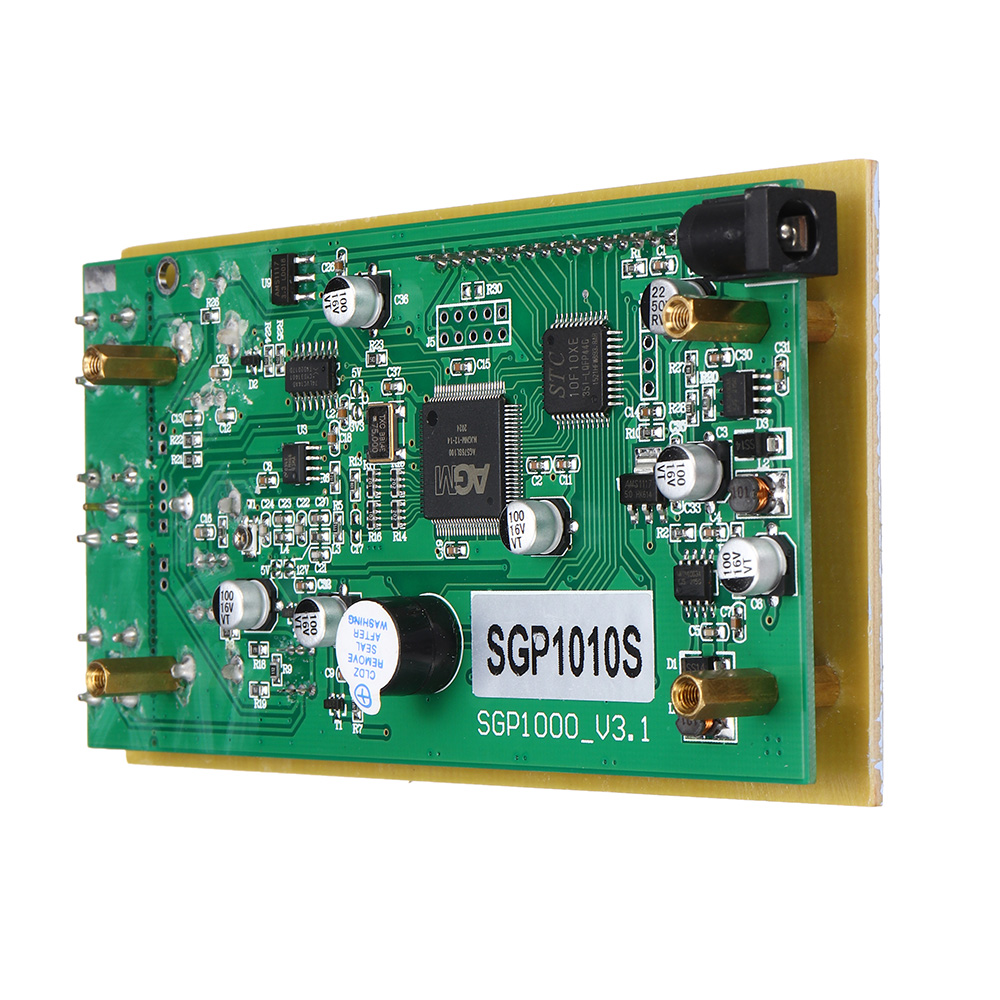

Elecbee High Precision DDS Digital SGP1010S Signal Generator Frequency Meter Function Generator

Frequency

Model

SGP1002S

SGP1005S

SGP1010S

Sine

0.01Hz-2Mhz

0.01Hz-5Mhz

0.01Hz-10Mhz

Square

0.01Hz-2Mhz

0.01Hz-5Mhz

0.01Hz-10Mhz

Ramp/Triangle

0.01Hz-2Mhz

0.01Hz-5Mhz

0.01Hz-10Mhz

Pulse

0.01Hz-2Mhz

0.01Hz-5Mhz

0.01Hz-10Mhz

TTL

0.01Hz-2Mhz

0.01Hz-5Mhz

0.01Hz-10Mhz

Others

0.01Hz-2Mhz

0.01Hz-5Mhz

0.01Hz-10Mhz

Signal Output Function

Output waveforms

Sine wave, Sqoare wave (Duty cycle adjustable) and Triangle wave (include sawtooth wave)

Output amplitude

≥10Vp-p (signal output, no load)(MAX)About 0.1Vp-p (MIN)

Output impedance

51Ω±10%(signal output)

DC offset

±3V(no load)

Resolution

0.01Hz(10mHz)

Frequency accuracy

±5×10 - 6

Frequency Stability

±2×10 - 6/3 Hours

Sine wave distortion

≤0.8% (reference frequency is 1kHz)

Triangle linearity

≥98%  (0.01Hz~10kHz)

Rise and fall time

≤100ns(sqoare wave)

Duty range

1%~99%(digital control mode)

TTL Output Function

Amplitude

>3Vp-p

Fan Out

>20 TTL loads

COUNTER  function

Counter Range

0-4294967295

Frequency Meter Range

1Hz~60MHz

Input Voltage Range

0.5Vp-p~20Vp-p

SWEEP  function

Sweep mode

Linear sweep, Logarithmic sweep

Sweep range

fM1 (pre-set) to fM2 (pre-set)

Sweep time

1s~99s

Others

Display

LCD1602 in English

Save and Load Parameter

M0-M9(M0: default load)

Size

135mm*65 mm*35mm

Buzzer warning tone

Can be turned On/Off by setting

Production technology

Surface mounting technology, large scale integrated circuit, reliable and durable

Operation feature

Button-controlled, Knob-adjusted continuously

Conditions requirement

Temp: 0~40℃   Humidity: <80%
