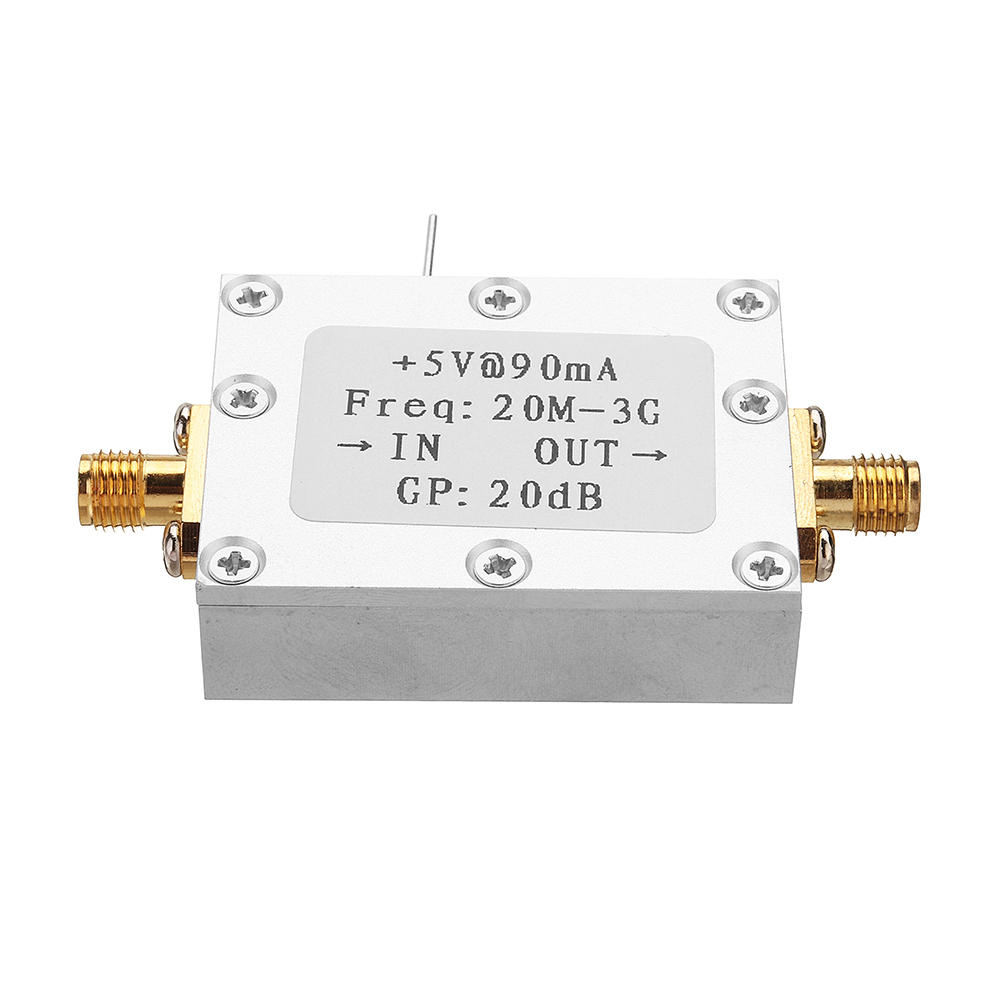

Elecbee High Linearity Wideband RF Amplification 20dB 0.02-3G High Performance Medium Power Amplifier Module

Name: Elecbee High Linearity Wideband RF Amplification 20dB 0.02-3G High Performance Medium Power Amplifier Module
Brand: Elecbee
SKU: EB0051553
Price: 34.71 USD
Availability: InStock

SKU: EB0051553

Favorites

Key Features

xa0

The high-performance InGaP HBT MMIC amplifier uses a Darlington configuration and an active bias network.

The active bias network provides stable current variation with temperature and test process.

Designed to run directly from a 5V supply, there is no need for a buck resistor compared to a typical Darlington amplifier.

The product is designed for high linearity requiring small size and minimal external 5V gain.

xa0

Description:

xa0

1. Supply voltage: typical +5V (typical current value 90mA)

2. Gain: Typical value 20dB@2G Input and output impedance: 50 ohms

3. Maximum output power: P1db +20dBm (@2GHz

4. Input signal: <+10dBm (output signal is distorted when input is greater than +10dBm)

5. Bandwidth: 0.02-3GHZ (the gain is slightly different at different frequencies,)

6. Noise figure: 4.1dB@1GHz

xa0

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Cellular

Model

DESCRIPTIONIMAGE0

Show Similar Products >

Description

1 x RF Amplifier

High-Linearity-Wideband-RF-Amplification-20dB-002-3G-High-Performance-Medium-Power-Amplifier-Module-1381560
