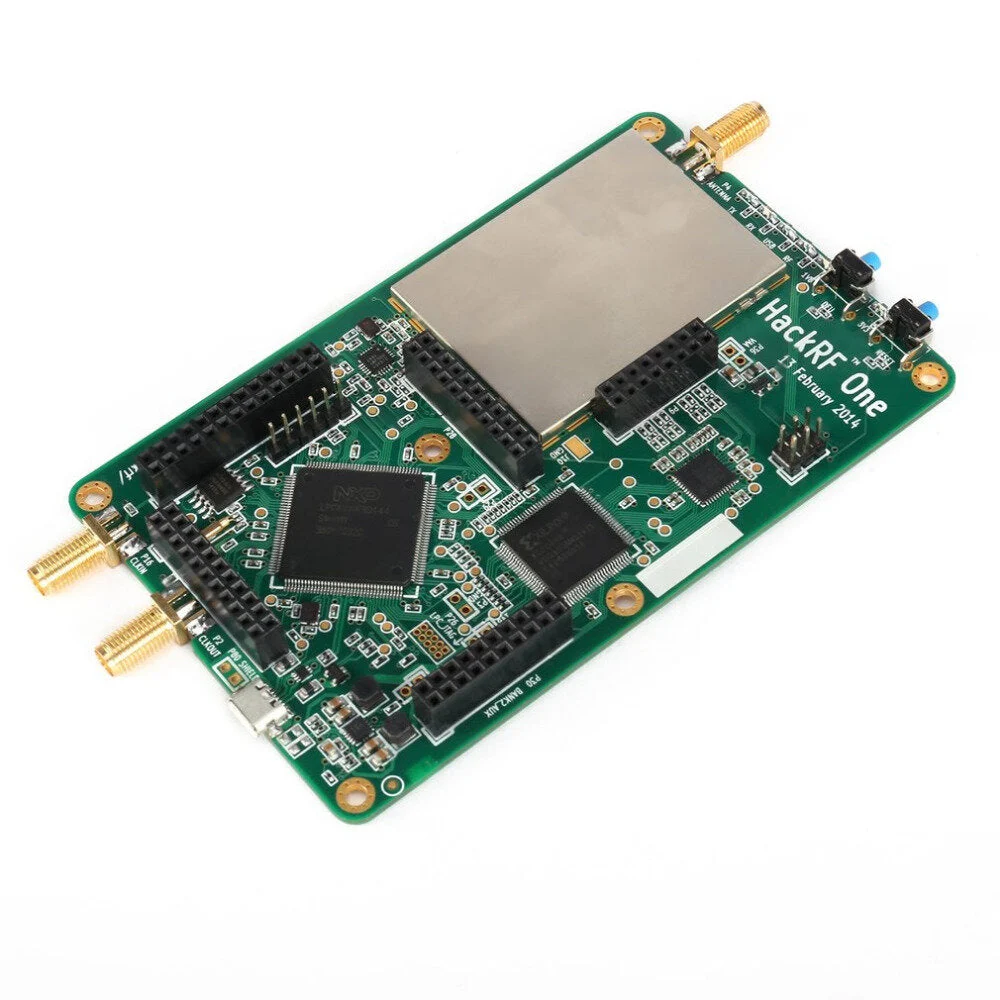

Elecbee HackRF One 1MHz-6GHz SDR Platform - 20M Sampling Transceiver for RF Research & Ham Radio
SKU: EB-1992905
Favorites
Key Features
1MHz-6GHz FULL SPECTRUM: Capture/transmit signals from LoRa to 5G with lab-grade precision.
20M SPS & 8-BIT IQ SAMPLING: Analyze complex waveforms for RF security testing and reverse engineering.
OPEN-SOURCE INTEGRATION: Plug-and-play with GNU Radio, SDR#, and custom protocol stacks.
EXPANDABLE AUTONOMY: Programmable buttons + internal headers for standalone field deployments.
USB-POWERED 10DBM TX: SMA antenna/clock sync ports for multi-device chaining in research labs.
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth + Cellular
Model
R9
USB Support
USB
Description
Specifications:
- 1MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- Compatible with GNU Radio, SDR#, and more
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)

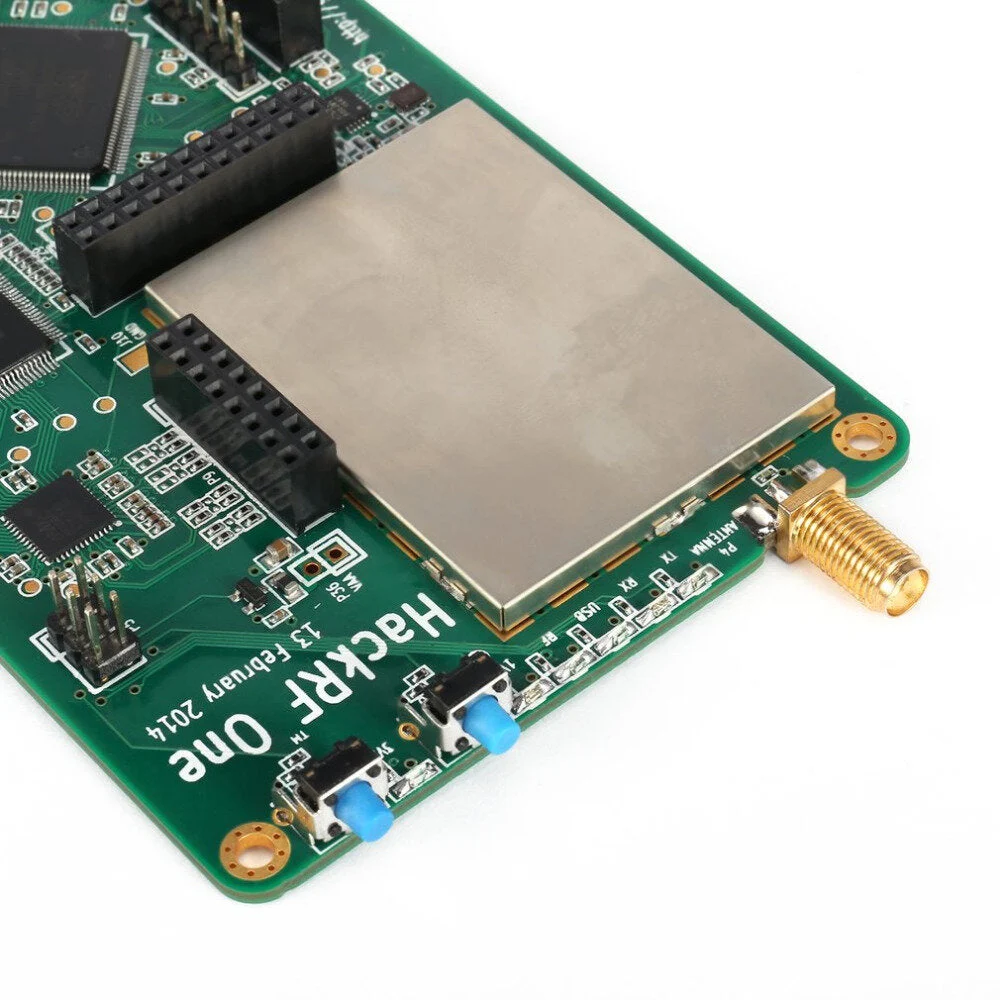

- SMA female antenna connector

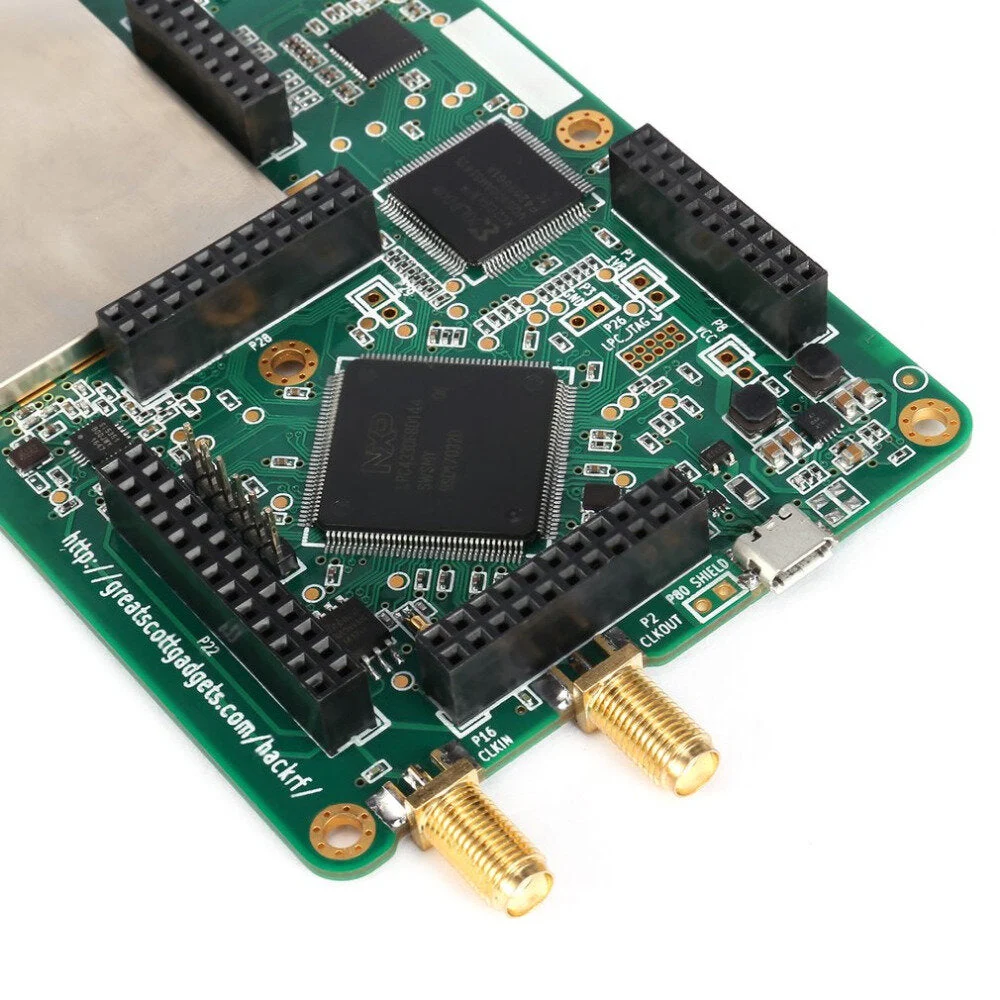

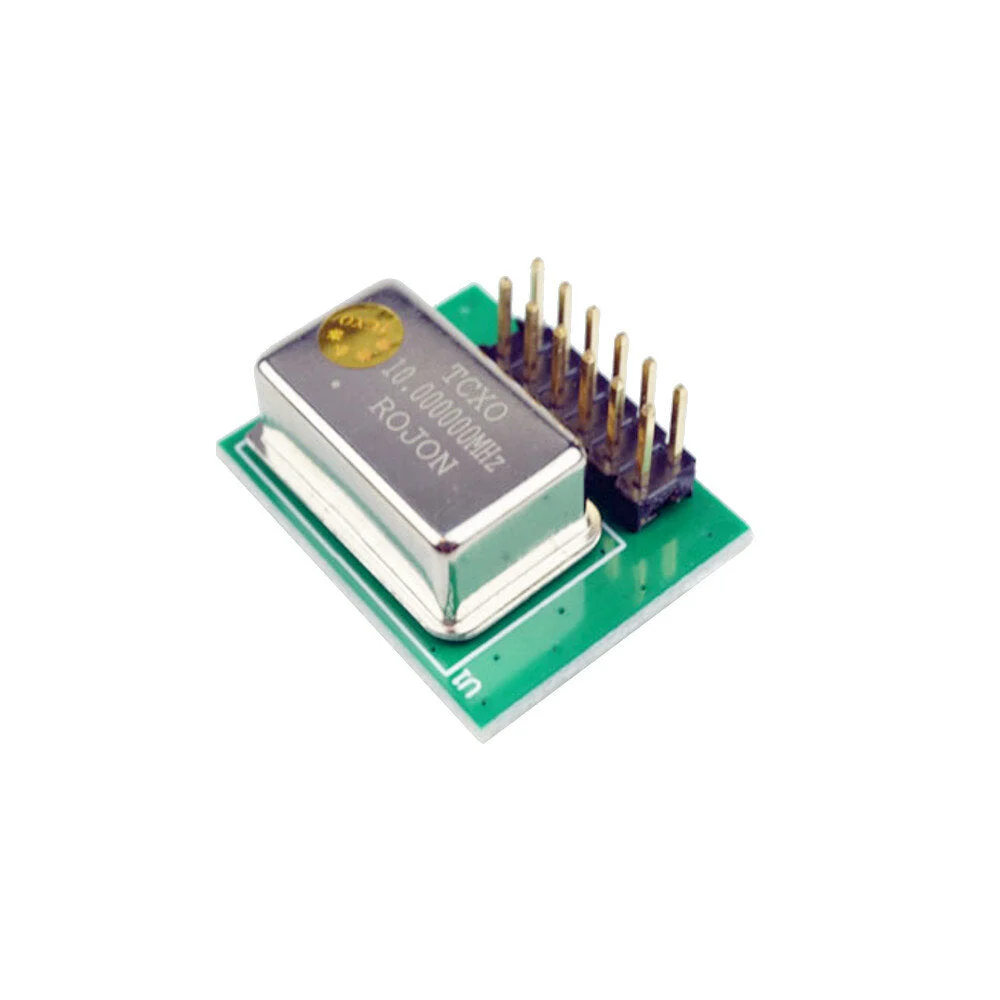

- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open-source hardware
Parameters:
- Frequency band: 1MHz-6Ghz
- Data bandwidth: 20MHz
- Sampling accuracy ( ADC/DAC) : 8BIT
- Sampling speed ( ADC/DAC): 20Mbps
- Interface: USB2.0
- Open-source
- Maximum transmitting power: 10dbm
- 64QAM transmitting EVM: 1.5%
