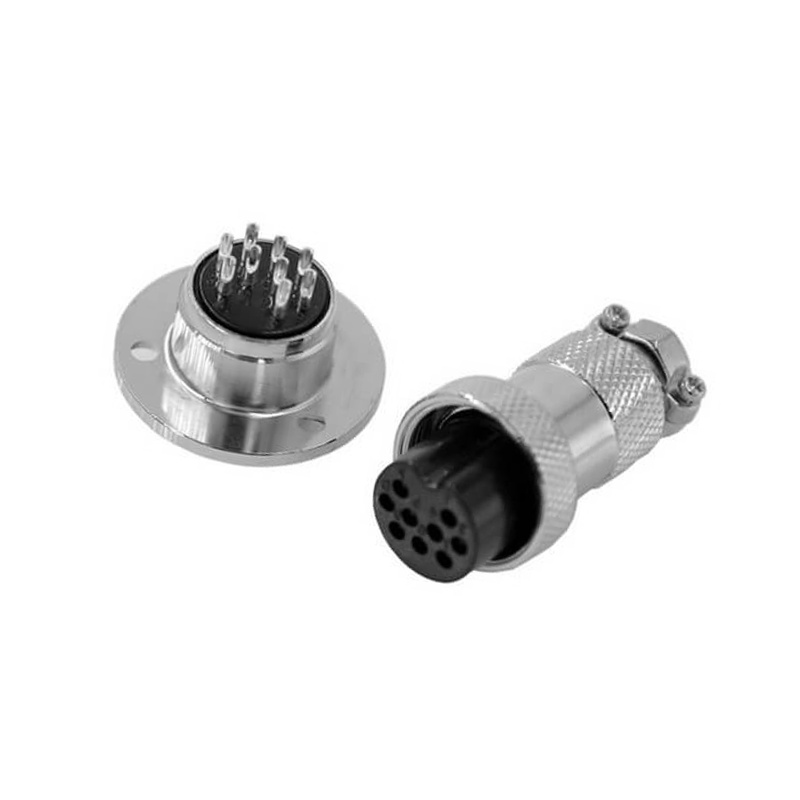

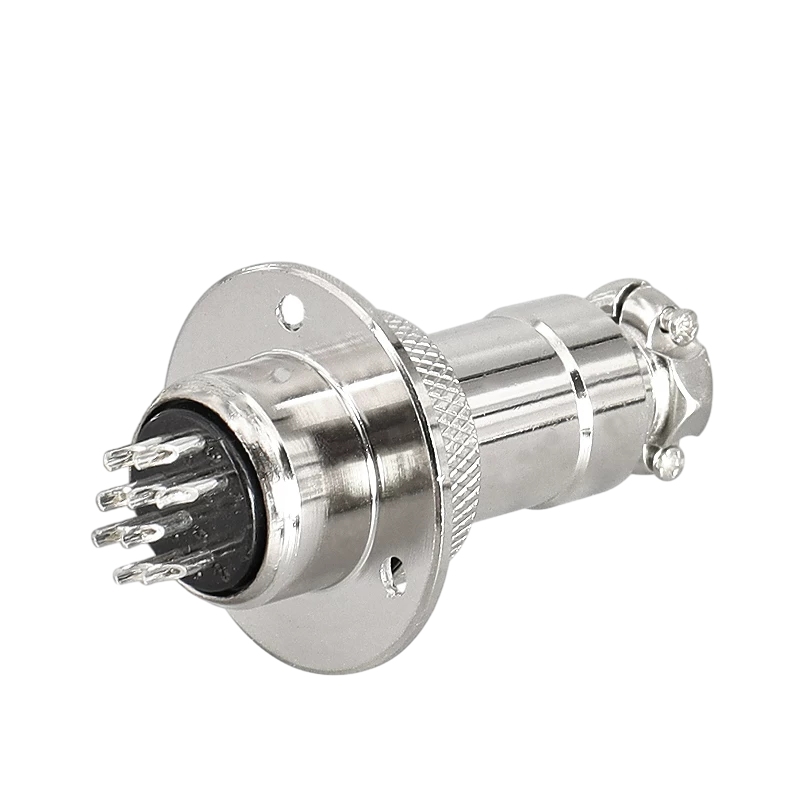

Elecbee GX20 Aviation connector Straight 9 Pin Flange Plug, Receptacle (one Pair) Silver Plated
SKU: EB-405-0030
Favorites
Key Features
Elecbee GX20 9 Pin plug and receptacle set is designed as an aviation connector for multi core signal, automation and equipment wiring in industrial and DIY devices.
The threaded zinc alloy shell, nickel plated finish and Bakelite insulation help keep the circular connector stable during repeated assembly.
The GX20 size class uses a 20 mm circular connector format with straight flange panel mount and solder cup termination for practical wiring layouts.
silver plated copper alloy contacts, 5A rated current, 150VAC rated voltage, IP54 protection provide dependable performance for low voltage power, signal and control equipment connections.
The threaded zinc alloy shell, nickel plated finish and Bakelite insulation help keep the circular connector stable during repeated assembly.
The GX20 size class uses a 20 mm circular connector format with straight flange panel mount and solder cup termination for practical wiring layouts.
silver plated copper alloy contacts, 5A rated current, 150VAC rated voltage, IP54 protection provide dependable performance for low voltage power, signal and control equipment connections.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Flange
Termination
Solder Cup
Contact Type
Male，Female Pin
Shell Finish
Nickel Plated
Number of Positions
9 Pin
Ingress Protection
IP54
Rated Current
5A
Rated Voltage
150VAC
Connector Series
GX20
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Silver Plated
Insulating Materials
Bakelite
Description
