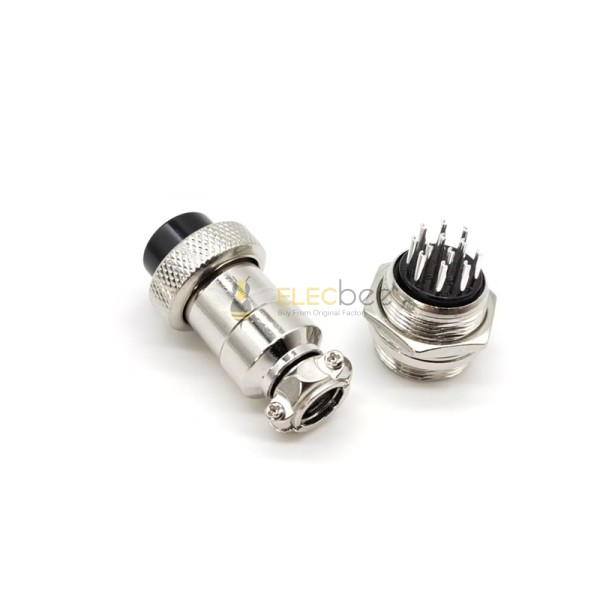

Elecbee GX20 Aviation connector Straight 12 Pin Bulkhead - Rear Side Nut Plug, Receptacle (one Pair) Silver Plated
SKU: EB-405-0036
Favorites
Key Features
Elecbee GX20 12 Pin plug and receptacle set is designed as an aviation connector for multi core signal, automation and equipment wiring in industrial and DIY devices.
The threaded zinc alloy shell, nickel plated finish and Bakelite insulation help keep the circular connector stable during repeated assembly.
The GX20 size class uses a 20 mm circular connector format with straight rear nut bulkhead panel mount and solder cup termination for practical wiring layouts.
silver plated copper alloy contacts, 5A rated current, 150VAC rated voltage, IP54 protection provide dependable performance for low voltage power, signal and control equipment connections.
The threaded zinc alloy shell, nickel plated finish and Bakelite insulation help keep the circular connector stable during repeated assembly.
The GX20 size class uses a 20 mm circular connector format with straight rear nut bulkhead panel mount and solder cup termination for practical wiring layouts.
silver plated copper alloy contacts, 5A rated current, 150VAC rated voltage, IP54 protection provide dependable performance for low voltage power, signal and control equipment connections.
Show More
In-Stock
Qty.
1
Unit Price
$ 2.76
Ext. Price
$ 2.76
$ 2.76
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder Cup
Contact Type
Male，Female Pin
Shell Finish
Nickel Plated
Number of Positions
12 Pin
Ingress Protection
IP54
Rated Current
5A
Rated Voltage
150VAC
Connector Series
GX20
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Silver Plated
Insulating Materials
Bakelite
Description
Related Resources
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(6)
5 /5
All reviews come from verified purchasers
5
67%
4
17%
3
17%
2
0%
1
0%

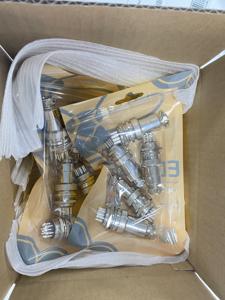

Z****y
A shopping that makes people happy.
c****A
Perfect fit for my industrial project. The metal housing feels durable and the 12-pin setup made wiring clean and secure.
R****l
Good quality aviation connector. Soldering took time but the connection is solid. Love the panel mount design.
R****y
Exactly what I needed for my custom control box. The male-female pair works flawlessly together.
P****n
Works well, but soldering pins require patience. Connection is strong once assembled.
a****a
Great build quality and exactly as described. Will definitely buy again for future projects.
