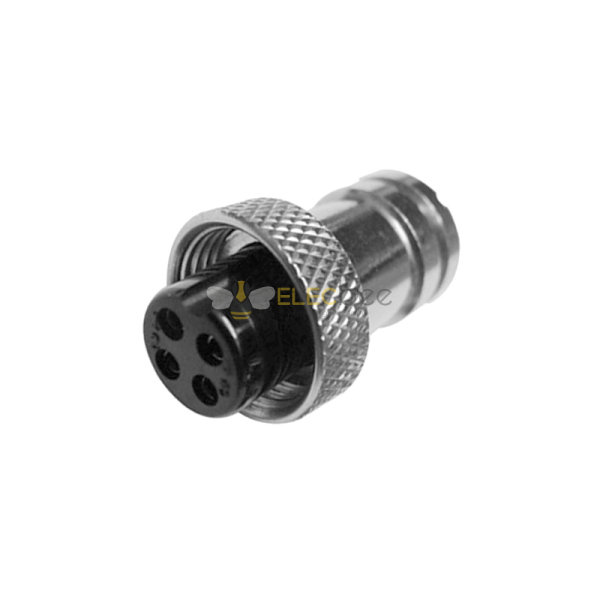

Elecbee GX12 Aviation connector female 4pin Straightcable line Solder Type connector

SKU: EB-403-0001
Favorites
Key Features

High-Strength Connection:

The GX12 Connector features a metal housing for a robust electrical connection and mechanical strength.

Various Pin Configurations:

Available in multiple pin configurations to meet the needs of various devices and applications.

Easy Installation:

Simple design supports quick connection and disconnection, enhancing installation efficiency.

Wide Application:

Widely used in automation, robotics, aerospace, and various other fields.

Show More
Attribute
Value
Connector Type
Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Female Pin
Shell Finish
Nickel Plated
Number of Positions
4 Pin
Operating Temperature
-20℃~+85℃
Rated Current
5A
Rated Voltage
125VAC
Connector Series
GX12
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Silver Plated
Insulating Materials
PBT
Cable Diameter
5mm~6.5mm
Shell Size
12
Insulation Color
Black
Key
A Code
Description

Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Recommended For You

Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
0%
4 stars
0%
5 stars
100%
J****n

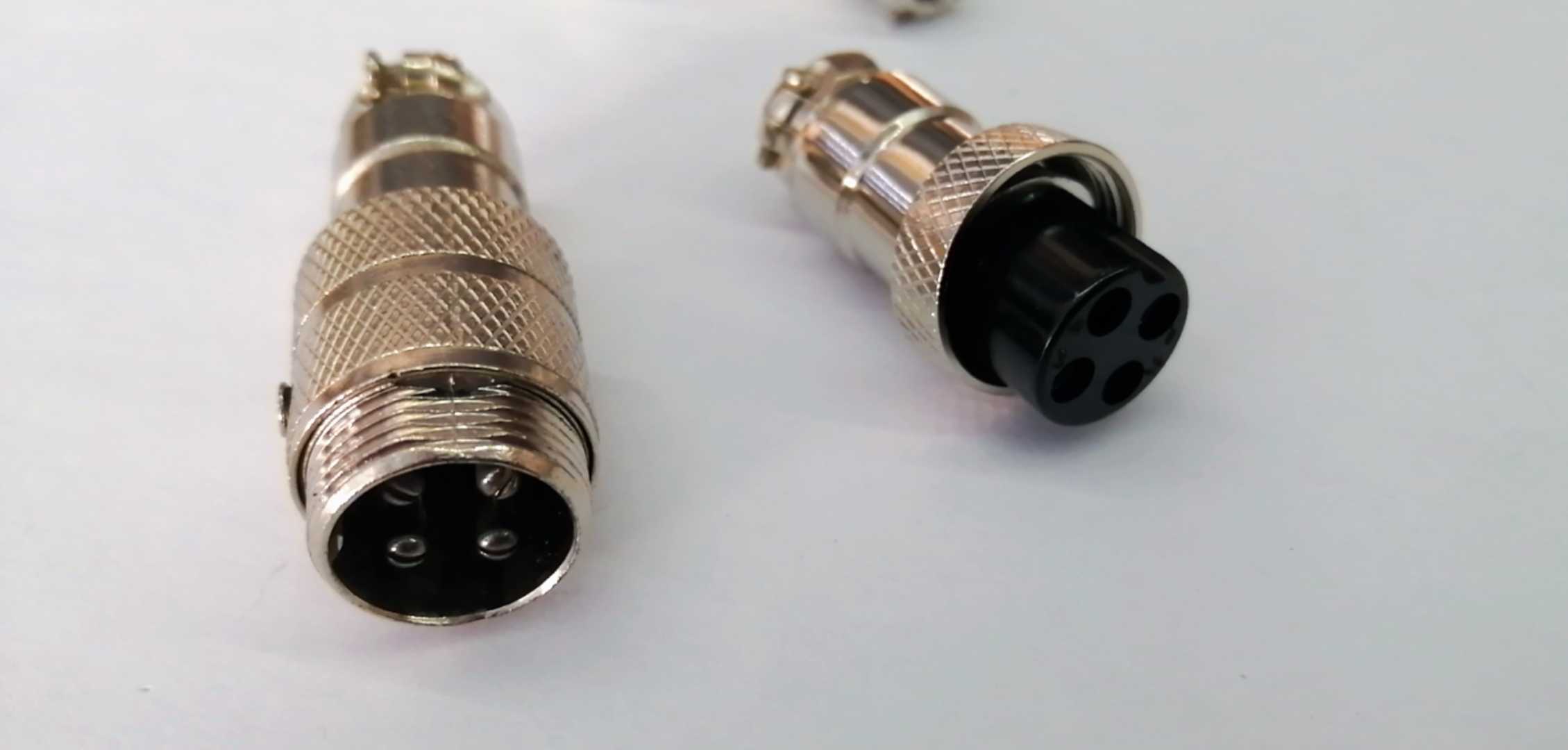

I am using these to adapt an old Wideband TV Yagi with a 75ohm output to an RTL-SDR. They seem sturdy enough and do the job nicely!
review-image
A****s

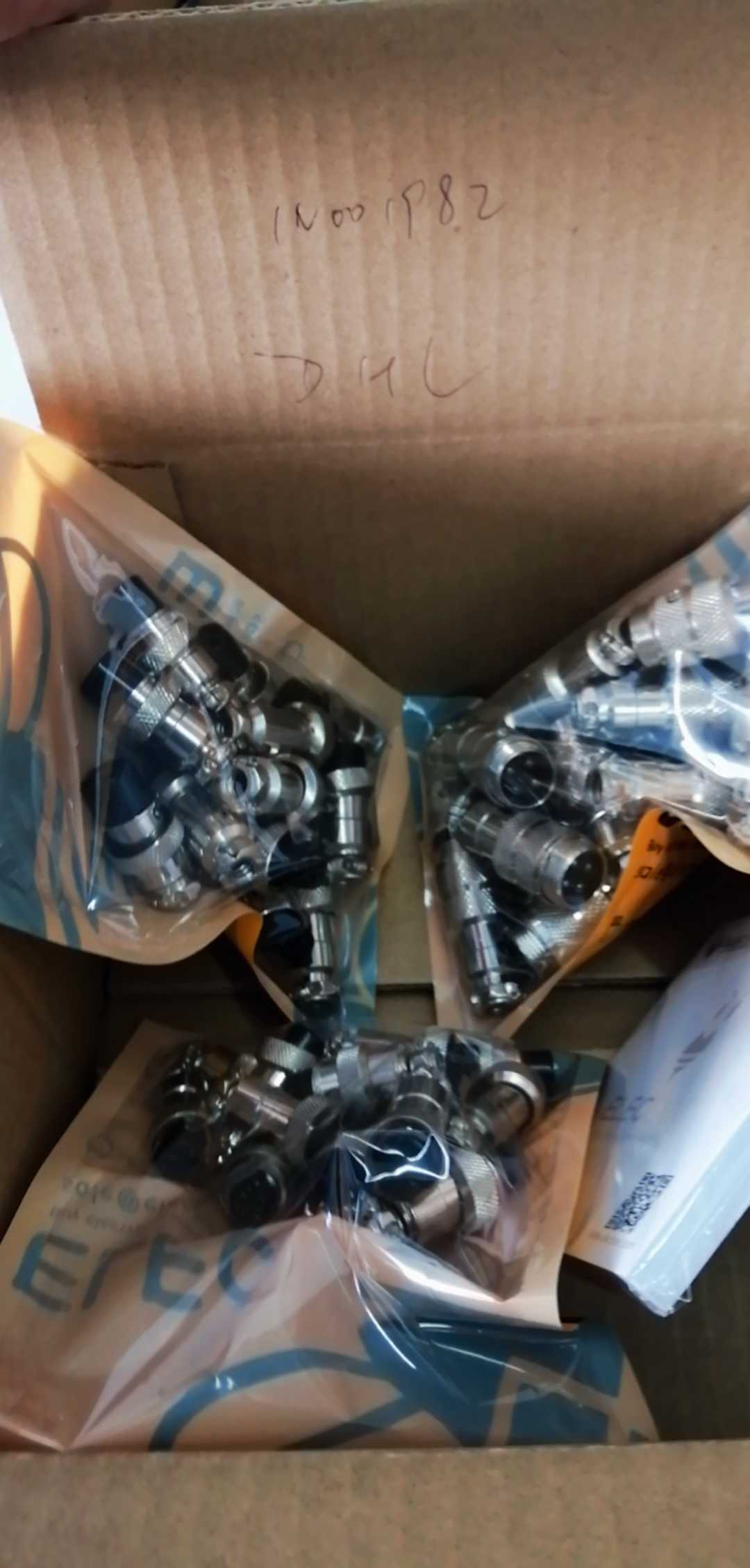

Very good will buy again
review-image
T****m
Easy to solder leads and passes a clean signal for each lead. Had difficulty taking apart one. Needed pliers to unjam it, but it works ok after reassembly.
