Embedded 2D Barcode Scanner Module (OEM CMOS Engine)

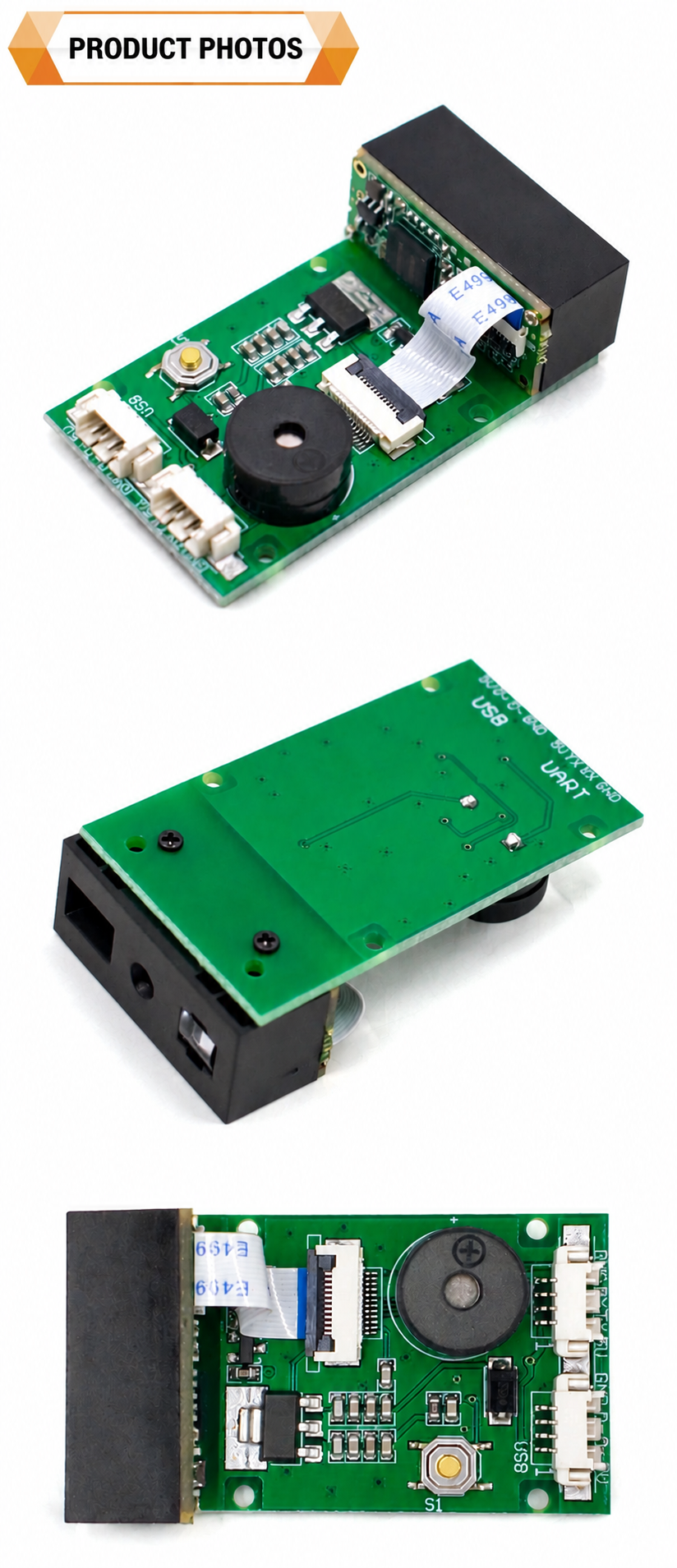

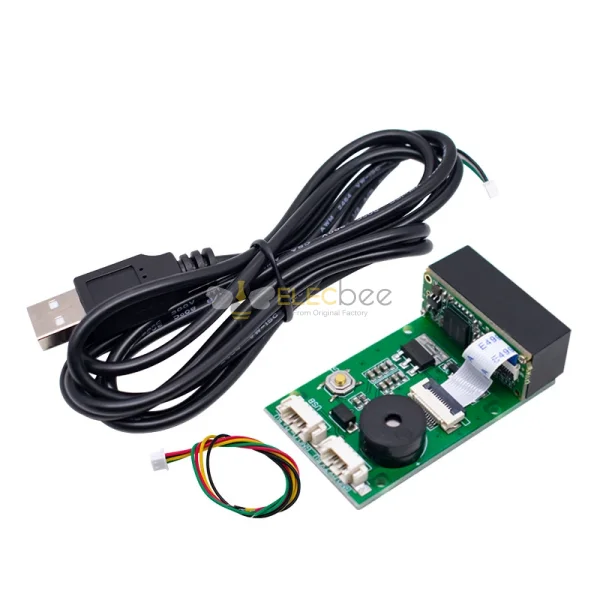

The Elecbee embedded 2D barcode scanner module is an OEM-grade imaging engine designed for industrial data capture, supporting QR Code, Data Matrix, and major 1D/2D barcodes. Built on a 640×480 CMOS sensor with dual USB and UART interfaces, it enables flexible integration into embedded systems, kiosks, POS terminals, and industrial automation equipment.

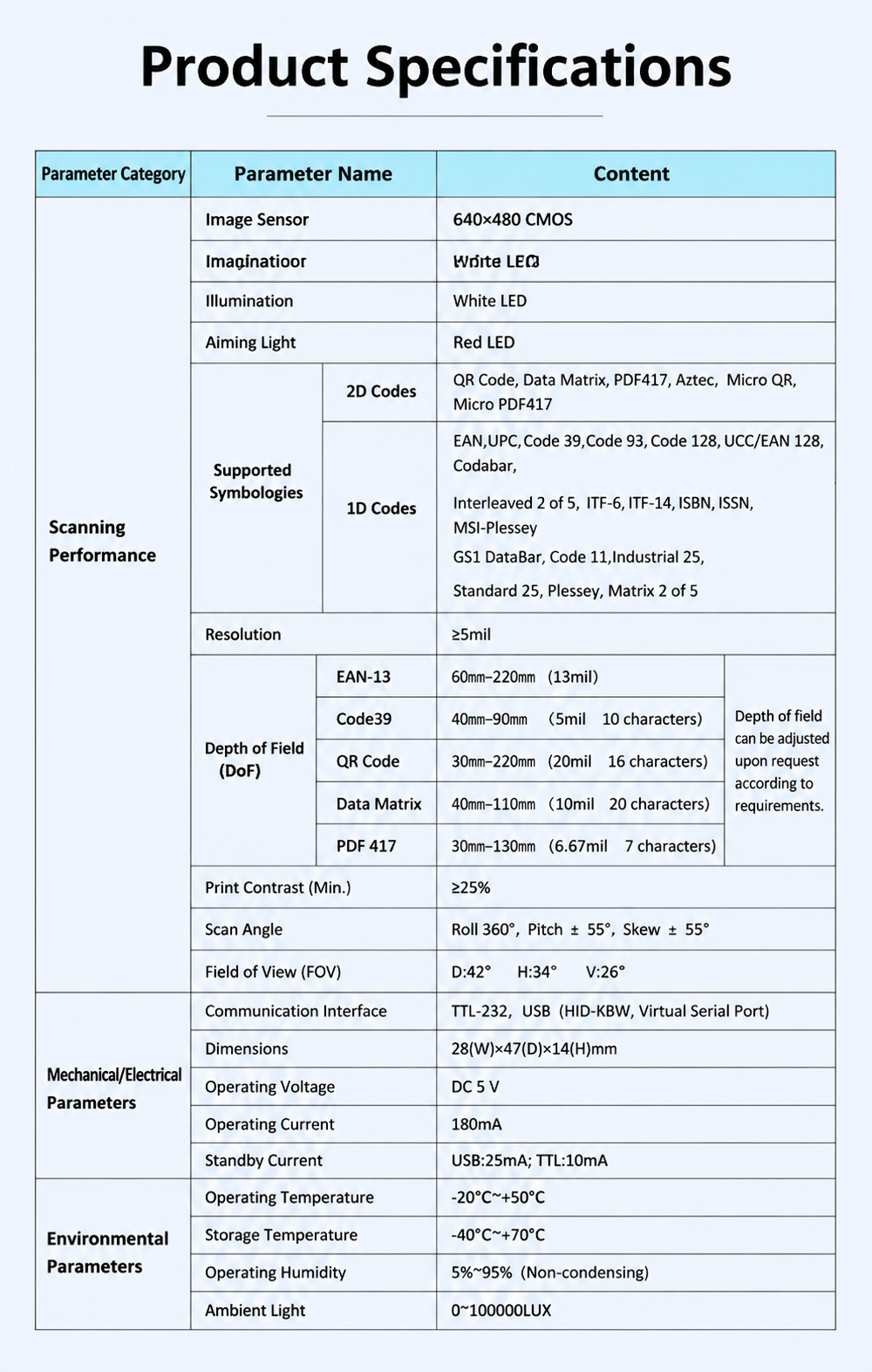

Technical Specifications

• Image Sensor: 640×480 CMOS imaging engine

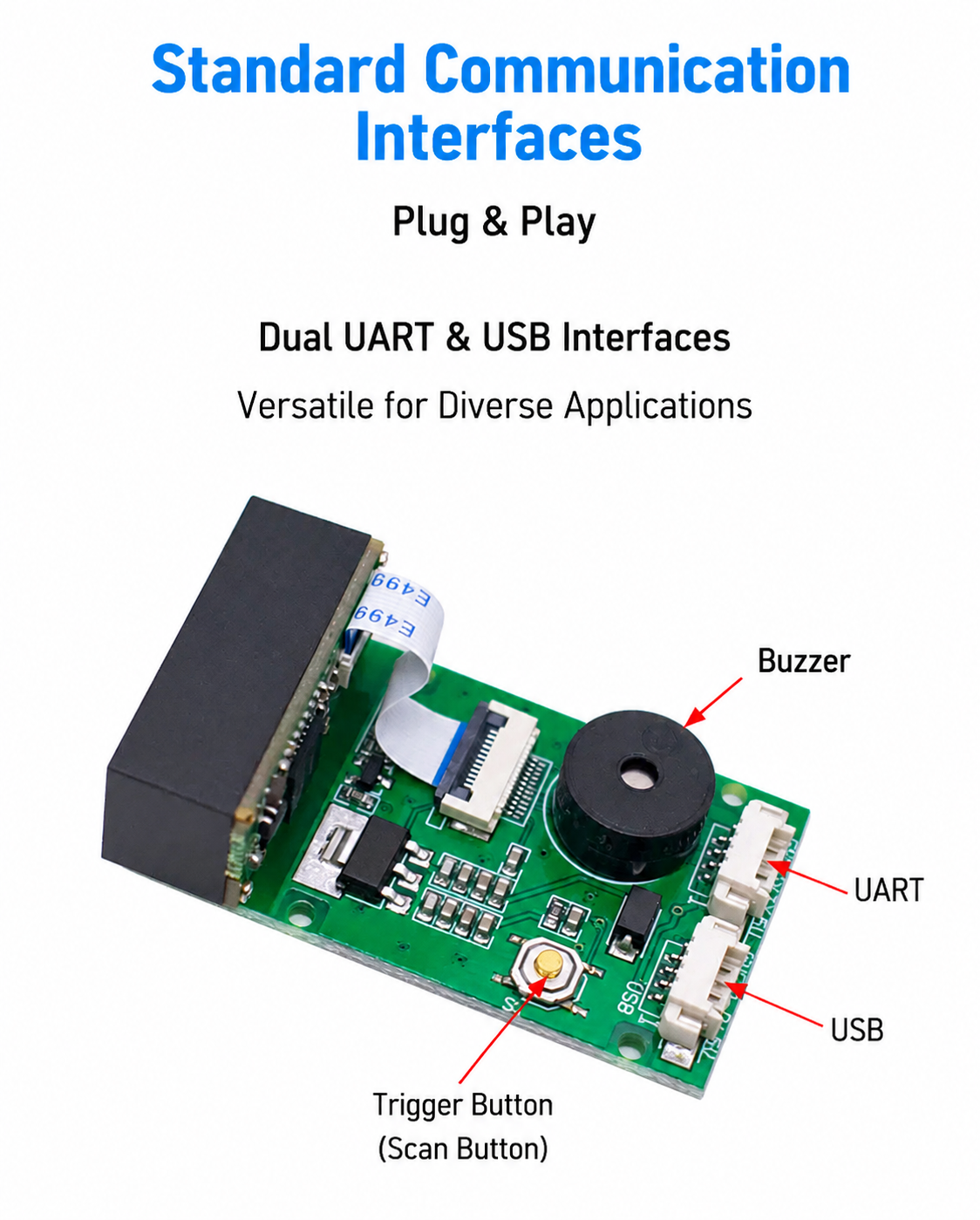

• Supported Interfaces: USB HID Keyboard, USB Virtual COM (VCP), UART TTL-232
• Power Supply: 5V DC operating voltage
• Illumination: White LED lighting + Red LED aiming
• Decode Capability: QR Code, Data Matrix, PDF417, Aztec, Micro QR, Micro PDF417
• 1D Codes: EAN, UPC, Code 39/93/128, GS1 DataBar, ISBN, ISSN
• Scan Precision: ≥ 5 mil
• Field of View: 42° diagonal / 34° horizontal / 26° vertical
• Scan Angle: 360° roll, ±55° pitch, ±55° skew
• Depth of Field: 60–220 mm (EAN-13, 13mil, adjustable)
• Dimensions: 28 × 47 × 14 mm compact embedded design

Industrial Applications

Designed for embedded integration in industrial automation systems, POS terminals, access control devices, logistics tracking systems, self-service kiosks, and handheld scanning equipment requiring reliable barcode recognition and stable serial communication.

Performance & Reliability

The module delivers stable decoding performance under varied lighting conditions (0–100,000 Lux) and supports industrial temperature ranges from -20°C to +50°C. Its low-power design ensures efficient operation for embedded and battery-powered systems.

System Compatibility

Supports USB HID plug-and-play operation and UART TTL serial output for MCU, ARM, Arduino, Raspberry Pi, and industrial controller integration. Default output format is ASCII data stream for direct system parsing.
