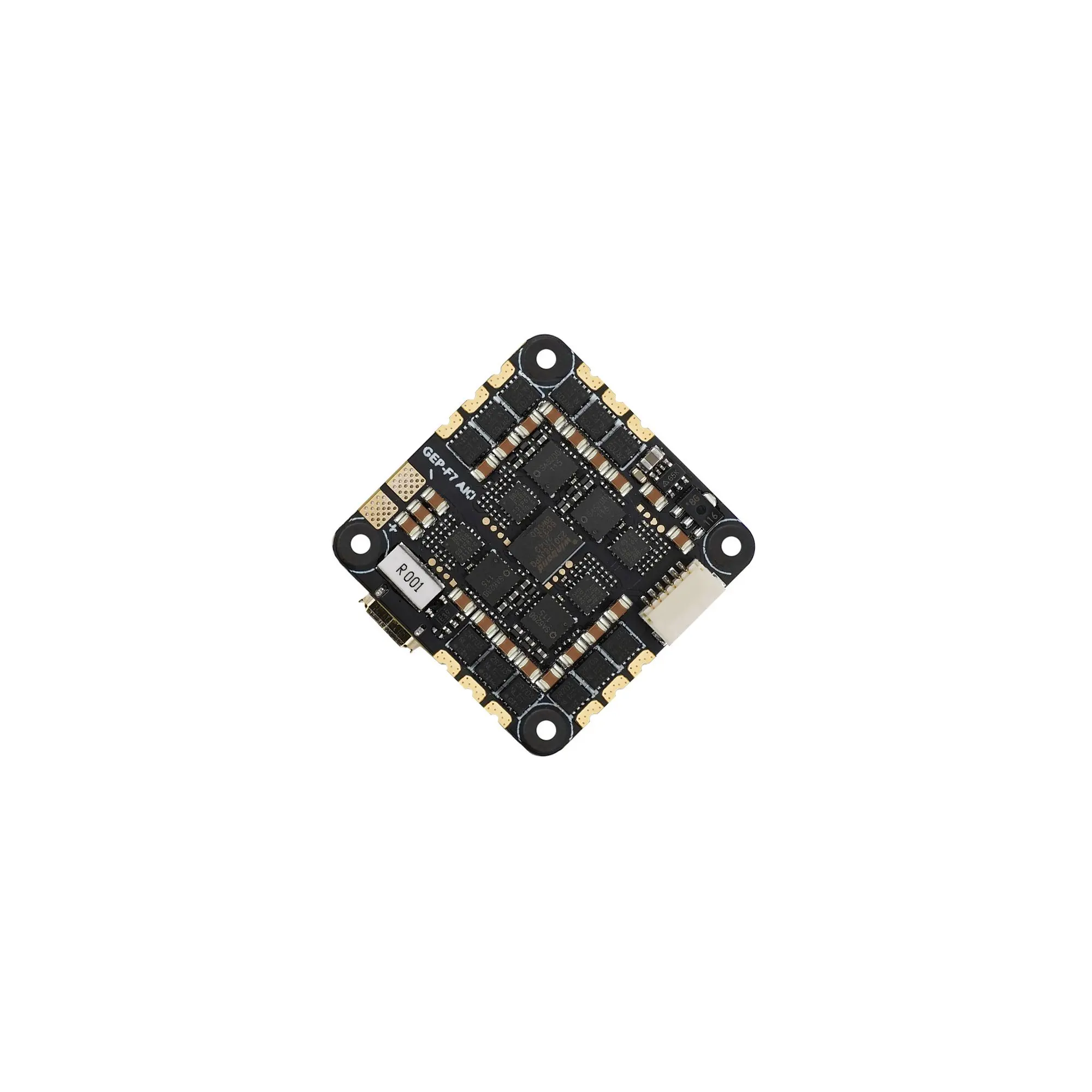

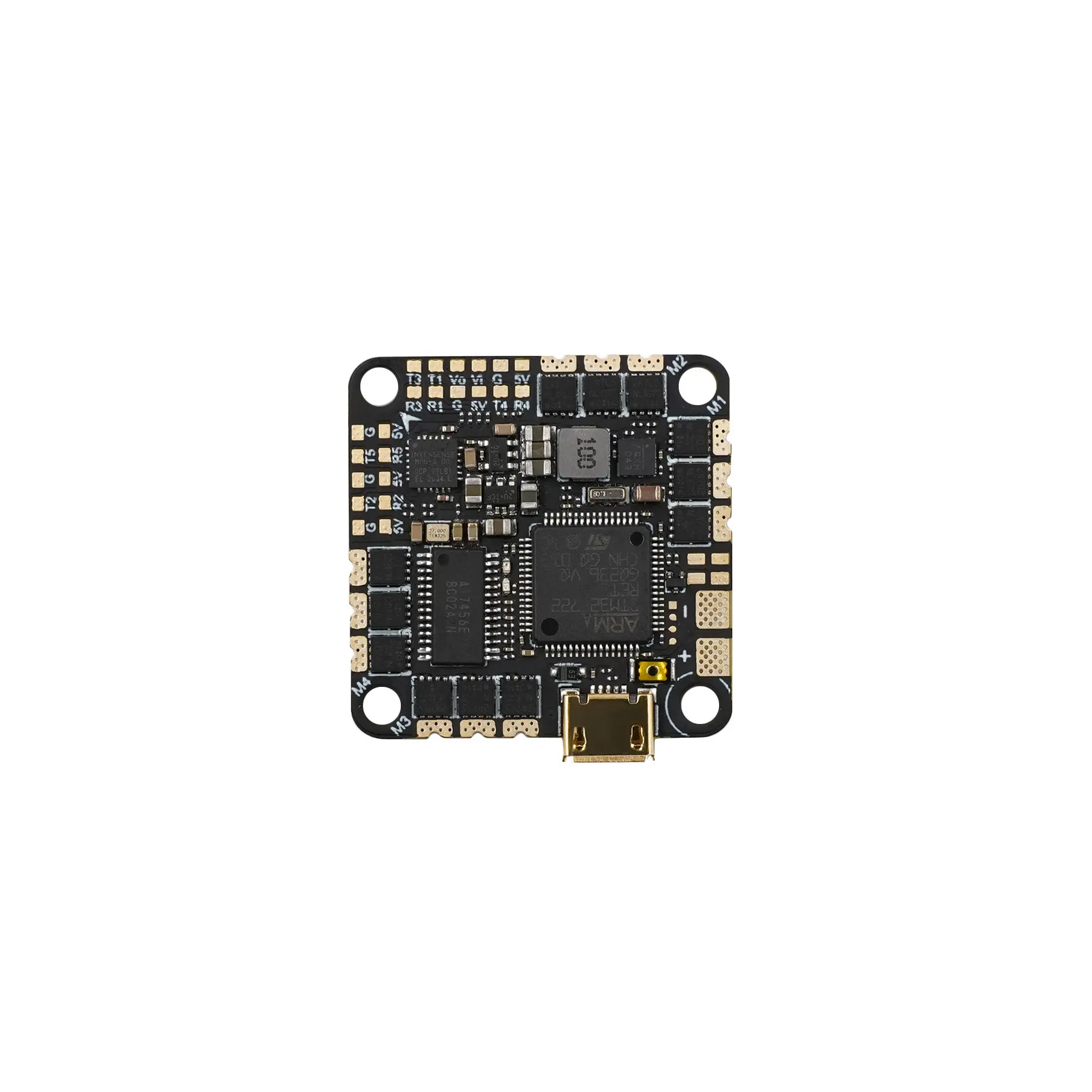

Elecbee GEPRC F722 AIO - F722 FC+ 35A 2S-6S BLS ESC

Name: Elecbee GEPRC F722 AIO - F722 FC+ 35A 2S-6S BLS ESC
Brand: Elecbee
SKU: EB-315-0082-L
Price: 162.66 USD
Availability: InStock

SKU: EB-315-0082-L

Favorites

Key Features

Description

Features

MCU: STM32F722, with strong performance and higher computing speed.

It has 5 full UART ports, which connect more external devices

3Design 6p connector for DJI AIR UNIT MODULE, and just plug and play.

The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, and brings the drone a stronger flight performance.

Support OSD parameter adjustment, buzzer, led, and other functions.

8.8g ultra-lightweight

26.5mm * 26.5mm mounting hole, suitable for most frames

Specifications

Model Name:GEP-F722-35A AIO

MCU:STM32F722

IMU:MPU6000 gyro/accelerometer(SPI)

Firmware target:GEPRC_F722_AIO

OSD:Betaflight OSD w/ AT7456Ev

UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5

Beeper: YES

LED: YES

USB: Micro USB

BEC output:5V@1A

Integrated LC Filter

ESC MCU:8BB21F16G

Continuous current:35A

MAX current:40A (10s)

Input:2~6S

Supports:Dshot600,Oneshot,Multishot

BlackBox: 16Mb

Traget:G_H_30

Size:32x32mm Board

Installing Hole:26.5×26.5mm,M2

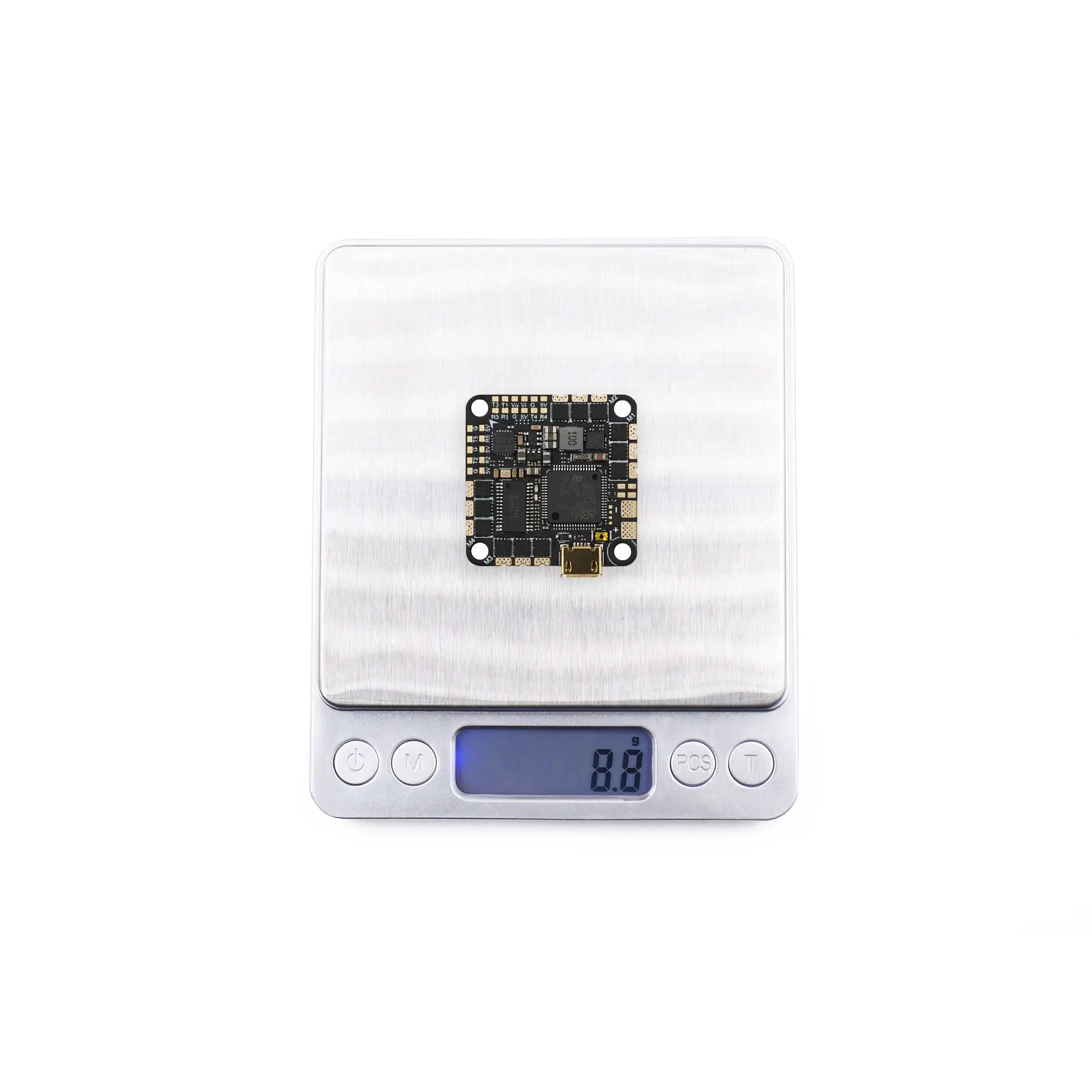

Weight:8.8g

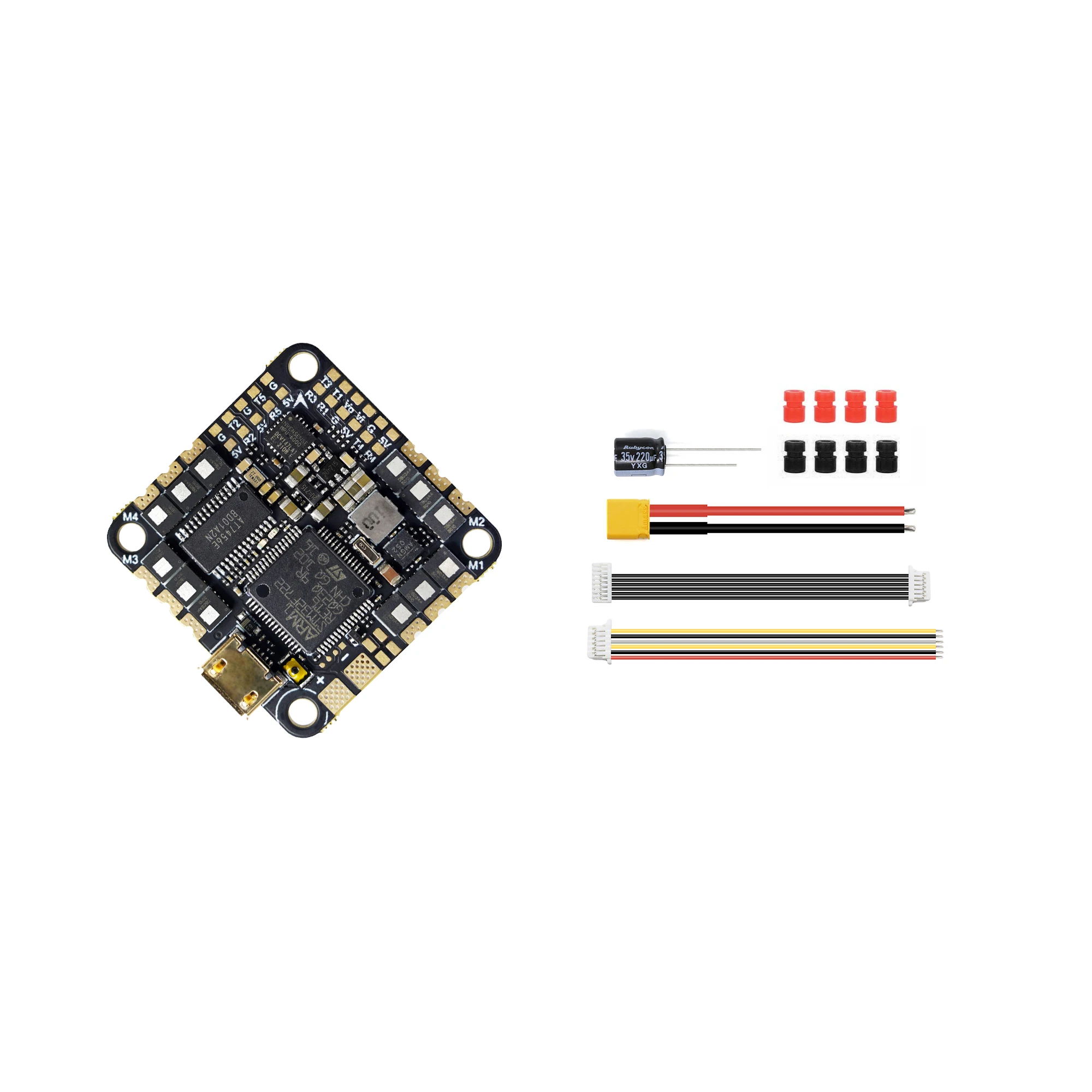

package inclusion

1 x GEP-F7-35A AIO

1 x XT30-7CM-18AWG Power cables

1 x 35V220UF capacitance

1 x SH1.0-6Pin to GH1.25-8Pin cables

8 x M2*6.5mm Damping ring
