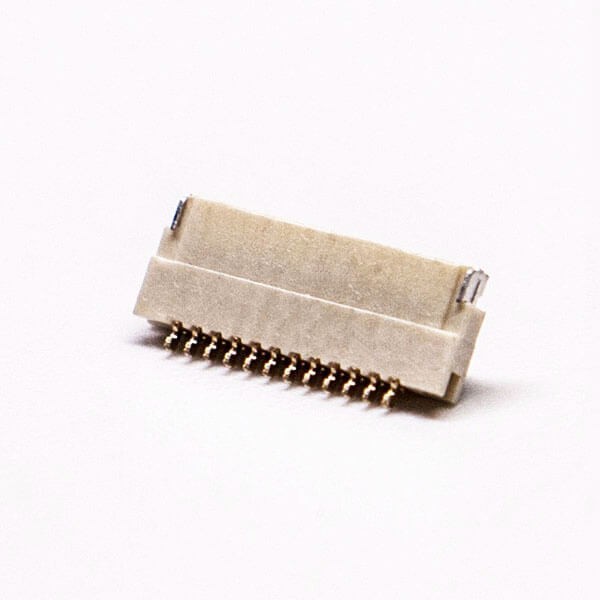

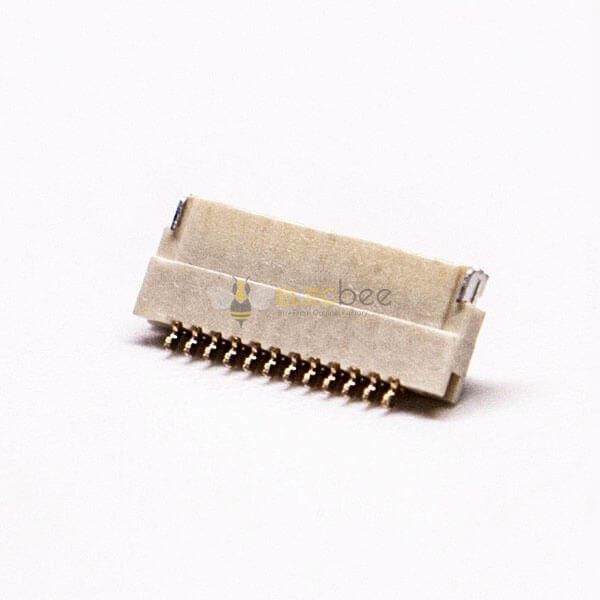

Elecbee FFC FPC Connector 0.5 MM Front Flip and Bottom Contact Style 1.0H FOR PCB

SKU: EB-500-9019

Favorites

Key Features

Features:

FFC/FPC Connector,PCB Mount,0.5 Pitch,12PIN,Bottom Contact,Solder Type,Front Flip,1.0H;
offer the best combination of signal;
Superior contact reliability, compactness, wide circuit size range;
Narrower width and shorter length dimensions, provide additional space savings;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Applications:

Automobile Infotainment: Display Audio, Car Navigation
Consumer: Flat Panel TV, Portable Game, Personal Navigation Equipment
Datacommunications: Optical Disk Drives, Tablet and Notebook PCs, Printers and Copiers

Show More

Specifications

Show Similar Products >

Attribute

Value

Search

Number of Rows

1

Mounting Type

Panel Mount

Contact Finish

Gold Plated

Pitch

0.5mm

Show Similar Products >
