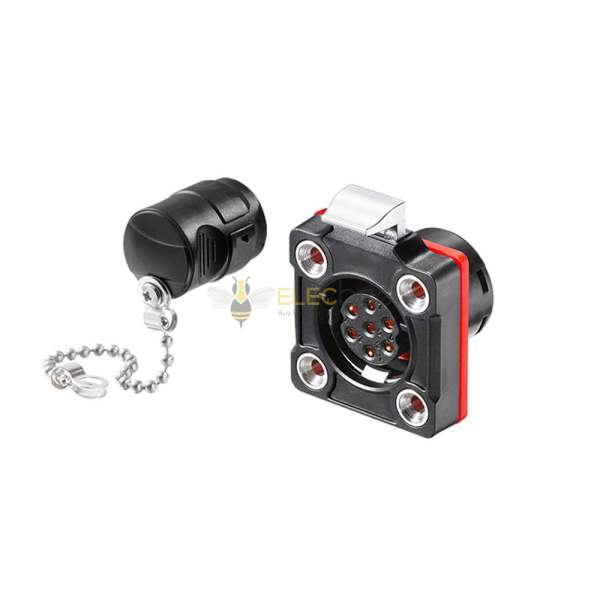

Elecbee Female Socket Plastic Shell Industrial Connector Bd20 Waterproof 7-Pin Aviation Cconnector
SKU: EB-045-0045
Favorites
Key Features
- The BD20 7-pin female receptacle combines a circular industrial format with a bayonet coupling for repeatable connection and disconnection.
- Rated for 10A at 300VAC, it uses solder cup termination for 18–16 AWG conductors and is configured for panel-mount installation.
- The engineering-plastic shell, engineering-plastic insulation, and copper alloy contacts with a gold-plated finish provide a durable electrical interface, while the bayonet fastening system helps maintain a secure connection.
- With an IP67 ingress-protection rating and an operating temperature range of -40°C to +85°C, this waterproof circular connector is suitable for equipment panels, control enclosures, and fixed industrial power or signal interfaces.
Show More
In-Stock
Qty.
1
Unit Price
$ 10.14$ 11.93
Ext. Price
$ 10.14$ 11.93
$ 10.14$ 11.93
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Female Pin
Number of Positions
7 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
10A
Rated Voltage
300VAC
Connector Series
BD20
Color
Black
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Engineering Plastics
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
18AWG~16AWG
