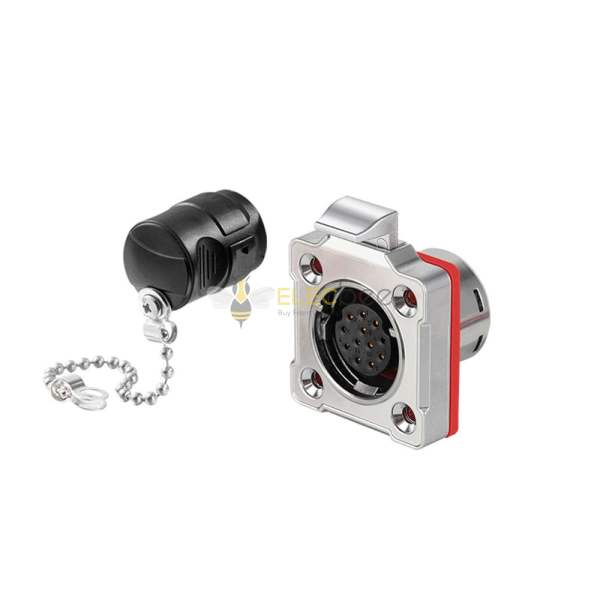

Elecbee Female Socket Metal Shell Industrial Connector Bd20 Waterproof 12-Pin Aviation
SKU: EB-045-0023
Favorites
Key Features
- Designed as a BD20 12-pin female receptacle, this circular connector supports dependable power or signal interconnection for industrial systems.
- Rated for 5A at 250VAC, it uses solder cup termination for 22–20 AWG conductors and is configured for panel-mount installation.
- The zinc alloy shell, engineering-plastic insulation, and copper alloy contacts with a gold-plated finish provide a durable electrical interface, while the bayonet fastening system helps maintain a secure connection.
- With an IP68 ingress-protection rating and an operating temperature range of -40°C to +85°C, this waterproof circular connector is suitable for equipment panels, control enclosures, and fixed industrial power or signal interfaces.
Show More
In-Stock
Qty.
1
Unit Price
$ 10.48$ 12.33
Ext. Price
$ 10.48$ 12.33
$ 10.48$ 12.33
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Female Pin
Number of Positions
12 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
5A
Rated Voltage
250VAC
Connector Series
BD20
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
22AWG~20AWG
Description
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
T
Perfect fit for my tractor's lighting system. The metal shell feels rugged and the IP67 rating is legit — survived heavy rain with no issues.
Y
Solid 12-pin connector, gold-plated pins make connection smooth. Took a few tries to fully seat the cable, but holds tight once locked.
D
Used this in an industrial control box. Love the quick one-hand plug design. Performs flawlessly in extreme temps from -20°C to 70°C.
M
Good connector overall, but the female socket was slightly tighter than expected. Needed extra care during mating to avoid pin damage.
G
Exactly what I needed for my truck’s aftermarket wiring. Metal housing gives confidence it’ll last. Waterproof seal works great.
