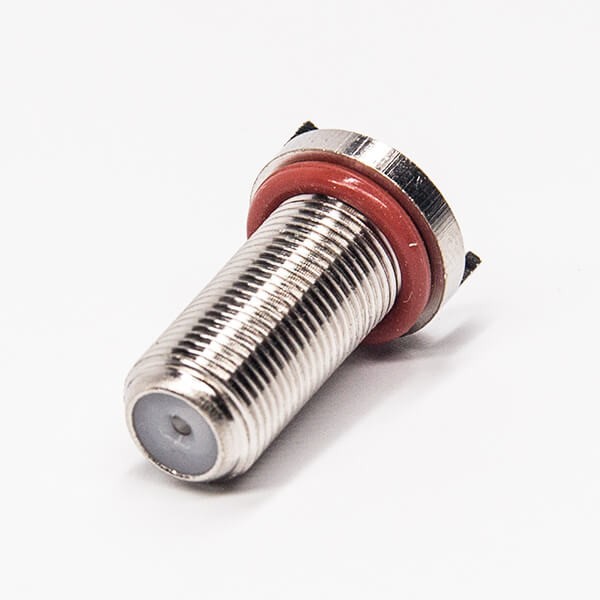

Elecbee F Type Waterproof Connector Straight Female Threaded Type Through Hole for PCB Mount
SKU: EB-003-0086
Favorites
Key Features
Product features:
- xa0F Connector,Jack/female,Straight/180°,Through Hole,PCB Mount,Waterproof;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:xa0
- Consumer Electronic: Statellite Boxes, set top boxes
- Telecommunications: CATV, CATV Networks.
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
75 Ohms
Frequency Max
3 GHz
Connector Series
F Type
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
Related Resources
Certificates
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
F****o
Perfect for my satellite box project! The waterproof feature and compact design saved space on the PCB. Easy to solder and the 75 ohm impedance matches perfectly.
A****v
Solid build quality for an F-type connector. The zinc body with nickel plating feels durable, and it fits exactly as described. Slight tightness when threading, but that ensures a secure connection.
m****R
Exactly what I needed for CATV network boards. Through-hole mounting is stable and the 3/8-32 thread works flawlessly. Great value from the original factory!
P****r
Good connector overall. Waterproof rating holds up, but took extra care during assembly since the pins are delicate. Would be better with slightly thicker insulation.
N****r
Love how small yet reliable these connectors are. Used in a high-frequency setup—performs well within the 3GHz range. Will definitely reorder.
