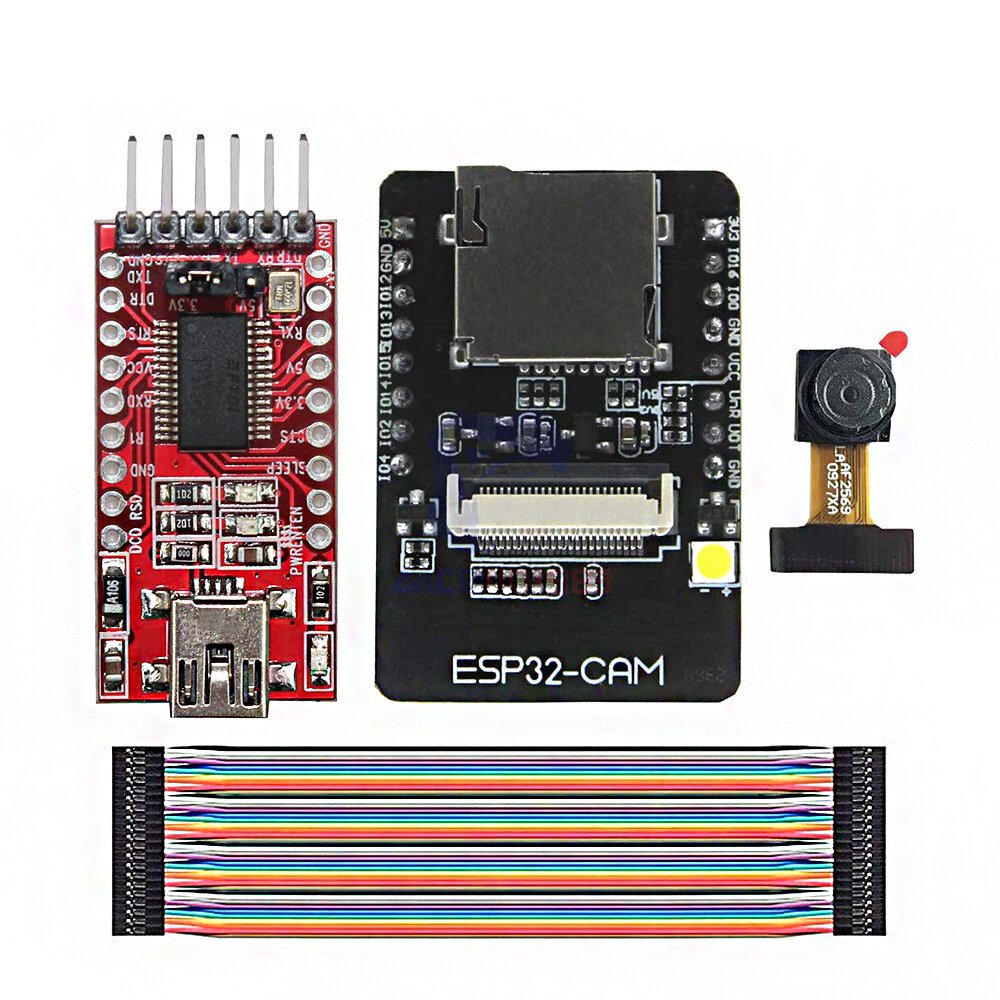

Elecbee ESP32-CAM WiFi + bluetooth Development Board ESP32 with FT232RL FTDI USB to TTL Serial Converter 40 Pin Jumper

Features:

- Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module

- Low-power dual-core 32-bit CPU for application processors

- Up to 240MHz, up to 600 DMIPS

- Built-in 520 KB SRAM, external 4M PSRAM

- Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC

- Support OV2640 and OV7670 cameras with built-in flash

- Support for images WiFI upload

-Support TF card

- Support multiple sleep modes

- Embedded Lwip and FreeRTOS

- Support STA/AP/STA+AP working mode

- Support Smart Config/AirKiss One-click distribution network

- Support for serial local upgrade and remote firmware upgrade (FOTA)

- Support secondary development

Note:

This product contains the OV2640 Camera Module. If you need to use the OV7670 camera, please purchase it separately.

Product Specifications:

Module model

ESP32-CAM

Package

DIP-16

Size

27*40.5*4.5(±0.2)mm

SPI Flash

default 32Mbit

RAM

internal520KB+external 4M PSRAM

bluetooth

bluetooth4.2BR/EDRxa0and BLE standards

Wi-Fi

802.11 b/g/n/e/i

Support interface

UART, SPI, I2C, PWM

Support TF card

Maximum support 4G

IO port

9

Serial port rate

default 115200 bps

Image output format

JPEG (only supported by OV2640), BMP, GRAYSCALE

Spectrum range

2412 ~ 2484MHz

Antenna form

onboard PCB antenna , gain 2dBi

Transmit power

802.11b: 17±2 dBm (@11Mbps)

802.11g: 14±2 dBm (@54Mbps)

802.11n: 13±2 dBm (@MCS7)

Receiving sensitivity

CCK, 1 Mbps : -90dBm

CCK, 11 Mbps: -85dBm

6 Mbps (1/2 BPSK): -88dBm

54 Mbps (3/4 64-QAM): -70dBm

MCS7 (65 Mbps, 72.2 Mbps): -67dBm

Power consumption

Turn off the flash: 180mA@5V

Turn on the flash and adjust the brightness to the maximum: 310mA@5V

Deep-sleep: The lowest power consumption can reach 6mA@5V

Moderm-sleep: up to 20mA@5V

Light-sleep: up to 6.7mA@5V

Security

WPA/WPA2/WPA2-Enterprise/WPS

Power supply range

5V

Operating temperature

-20 °C ~ 85 °C

Storage environment

-40 °C ~ 90 °C, < 90%RH

ESP32-CAM Picture Output Format Rate:

QQVGA

QVGA

VGA

SVGA

JPEG

6

7

7

8

BMP

9

9

-

-

GRAYSCALE

9

8

-

-

Test environment: camera model: OV2640 XCLK: 20MHz, the module transmits pictures to the computer browser by WiFi.

For more files, please click here:

file

[FT232RL Module]

FTDI USB Serial Adapter comes with the FT232RL chip and uses both 3.3V and 5V operating voltage. Adapter Logic-level can be set via jumpers on the board, which makes simple to connect to your controller. USB power has over current protection, using 500MA self-restore fuse. You can use the modules in this kit to burn the program directly without additional purchase.

[Female to Female Dupont Jumper Wires]

The Jumper wires are made of high-grade copper wire material for safe and durable to use. This set contains 20cm 40pin male to male Jumper Wires, with which you can easier to complete the project.
