Elecbee ESP32-CAM-MB OV2640 ESP32 WiFi Bluetooth Camera Module with Type-C USB Programmer
SKU: EB-1924300
Favorites
Key Features
Integrated Wireless Connectivity: ESP32 dual-core chipset supports WiFi 802.11b/g/n and Bluetooth BLE communication for embedded IoT networking applications.
Embedded Vision Support: Compatible with OV2640 and OV7670 camera modules for wireless image transmission, monitoring systems, and smart vision projects.
Convenient Type-C Programming: Integrated Type-C USB TTL programmer simplifies firmware uploading, debugging, and embedded development workflows.
Flexible Interface Expansion: Supports UART, SPI, I2C, PWM, ADC, and DAC interfaces for sensor integration, robotics control, and automation systems.
Low-Power IoT Operation: Multiple sleep modes and ESP32 low-power architecture support energy-efficient wireless monitoring and remote sensing applications.
Show More
In-Stock
Qty.
1
Unit Price
$ 8.91$ 10.48
Ext. Price
$ 8.91$ 10.48
$ 8.91$ 10.48
Specifications
Attribute
Value
Search
MCU/SoC Model
ESP32
CPU Architecture
Xtensa LX6
Wireless Capability
Wi-Fi + Bluetooth + Cellular
Model
ESP32
Clock Speed
240
Description

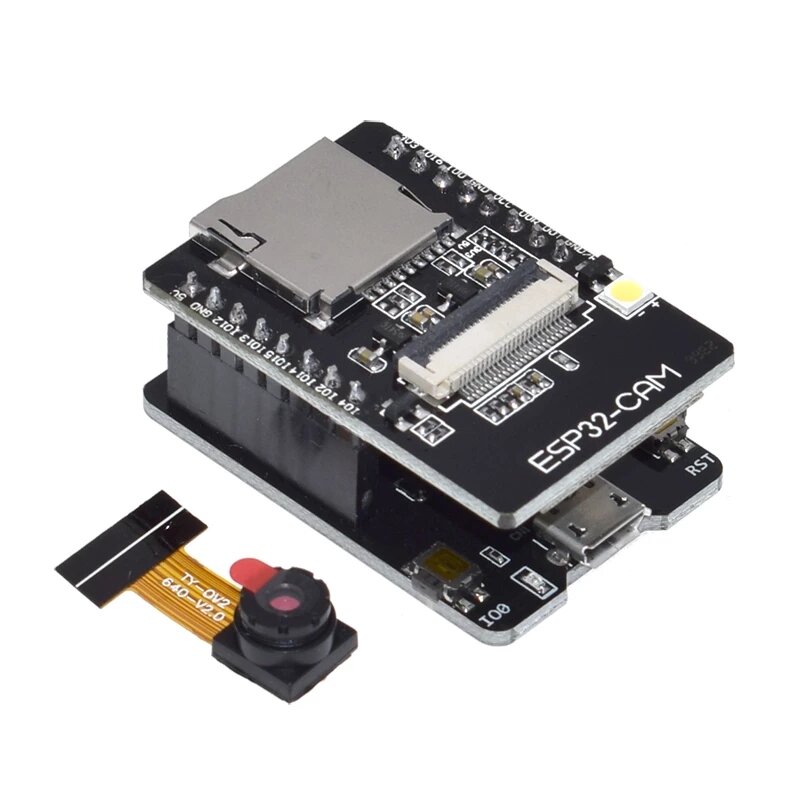

ESP32-CAM-MB WiFi Bluetooth Camera Development Board
ESP32-CAM-MB is a compact ESP32-based wireless camera development board designed for embedded IoT applications, wireless image transmission, smart monitoring systems, and AI vision projects. The module integrates WiFi and Bluetooth dual-mode communication with camera support and flexible expansion interfaces for industrial and DIY development applications.
The board includes a built-in Type-C USB TTL downloader module for convenient firmware programming and serial communication without requiring an external USB-to-TTL adapter.
Main Features
- ESP32 WiFi and Bluetooth dual-mode wireless communication
- Dual-core 32-bit LX6 processor with up to 240MHz frequency
- Supports OV2640 and OV7670 camera modules
- Supports JPEG, BMP, and grayscale image output
- Integrated Type-C USB TTL downloader module
- Built-in 520KB SRAM and external 8MB PSRAM
- Supports TF card storage expansion
- Supports UART, SPI, I2C, PWM, ADC, and DAC interfaces
- Supports STA, AP, and STA+AP working modes
- Supports SmartConfig and AirKiss wireless configuration
- Embedded LwIP and FreeRTOS support
- Low power consumption design for IoT applications
Technical Specifications
| Product Model | ESP32-CAM-MB |
| USB Interface | Type-C USB |
| Wireless Connectivity | WiFi + Bluetooth |
| WiFi Standard | 802.11 b/g/n/e/i |
| Bluetooth Standard | Bluetooth 4.2 BR/EDR + BLE |
| CPU Architecture | Dual-Core 32-bit LX6 CPU |
| Clock Frequency | 80MHz ~ 240MHz |
| Computing Performance | Up to 600 DMIPS |
| Internal SRAM | 520KB |
| External PSRAM | 8MB |
| SPI Flash | 32Mbit Default |
| Supported Camera | OV2640 / OV7670 |
| Image Output Format | JPEG, BMP, Grayscale |
| TF Card Support | Supported, up to 4GB |
| IO Ports | 9 |
| Default Baud Rate | 115200bps |
| Frequency Range | 2400 ~ 2483.5MHz |
| Antenna Type | Onboard PCB Antenna |
| Antenna Gain | 2dBi |
| Operating Voltage | 4.75V ~ 5.25V |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -40°C ~ 125°C |
| Humidity Requirement | <90% RH |
Wireless Transmission Performance
| Wireless Mode | Transmit Power |
|---|---|
| 802.11b @11Mbps | 17 ±2dBm |
| 802.11g @54Mbps | 14 ±2dBm |
| 802.11n @MCS7 | 13 ±2dBm |
Receiver Sensitivity
| Mode | Sensitivity |
|---|---|
| CCK 1Mbps | -90dBm |
| CCK 11Mbps | -85dBm |
| 6Mbps (1/2 BPSK) | -88dBm |
| 54Mbps (3/4 64-QAM) | -70dBm |
| MCS7 (65Mbps / 72.2Mbps) | -67dBm |
Power Consumption
| Operating Mode | Power Consumption |
|---|---|
| Flash Disabled | 180mA @5V |
| Flash Enabled Maximum Brightness | 310mA @5V |
| Deep Sleep | Minimum 6mA @5V |
| Modem Sleep | Minimum 20mA @5V |
| Light Sleep | Minimum 6.1mA @5V |
Security Support
- WPA
- WPA2
- WPA2-Enterprise
- WPS
Typical Applications
- Wireless video monitoring systems
- Smart home image transmission
- IoT embedded development projects
- QR code recognition systems
- Smart agriculture monitoring
- Wireless identification devices
- Remote image acquisition systems
- Embedded AI camera applications
Package Includes
- 1 × ESP32-CAM-MB WiFi Bluetooth Camera Development Board
