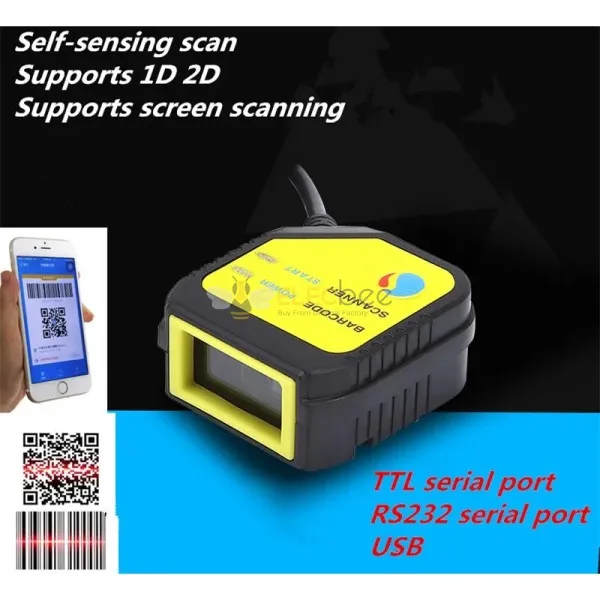

Elecbee Embedded Scanning Module 2D Code Barcode Scanner Head Fixed USB TTL RS232 SH-400 TTL
SKU: EB0042188-TTL
Favorites
Key Features
| Physical Parameterxa0 | |
| Overall dimensions | 49*43*22mm (L*W*H) |
| Package size | 190*110*80mm (L*W*H) |
| Shell material | ABS |
| Net weight | 60g |
| Package weight | 200g |
| LED indicator | Red, green |
| Performance Parameterxa0 | |
| Working voltage | 3.5-6.5V DC |
| DC power supply | Class 2, 5.2VDC@1A |
| Working power | 0.6W 150ma/3.7V |
| Standby power | 20ma/3.7V 0.07W |
| Support bar code type | Standard one-dimensional, two-dimensional barcode (PDF417, Data Matrix, QR) |
| Scanning type | Image type |
| The background light source | White LED |
| Positioning the light source | Red LED |
| The system interface | USB, RS232, TTL UART232 |
| Environmental parameterxa0 | |
| Operating temperature | xa0-10°C~50°C |
| Storage temperature | 40°C~50°C |
| Operating humidity | 5%-95% relative humidity, non-condensation |
| Electrostatic protection | 15kVDC air discharge, 8kVDC direct/indirect discharge |
| Drop test | 100/1M |
| By the light intensity | 0-100.00 LUX |
| Exercise tolerance | 100mm/s 13mil UPC |
| The IP rating | Refer to IP54 design standard |
| Dustproof | Seal against air particles |
Show More
Out-of-Stock
Qty.
1
Unit Price
$ 33.14
Ext. Price
$ 33.14
$ 33.14
Qty.
Unit Price
Ext. Price
10+
$31.48
$ 314.80
20+
$29.83
$ 596.60
100+
$26.51
$ 2651.00
