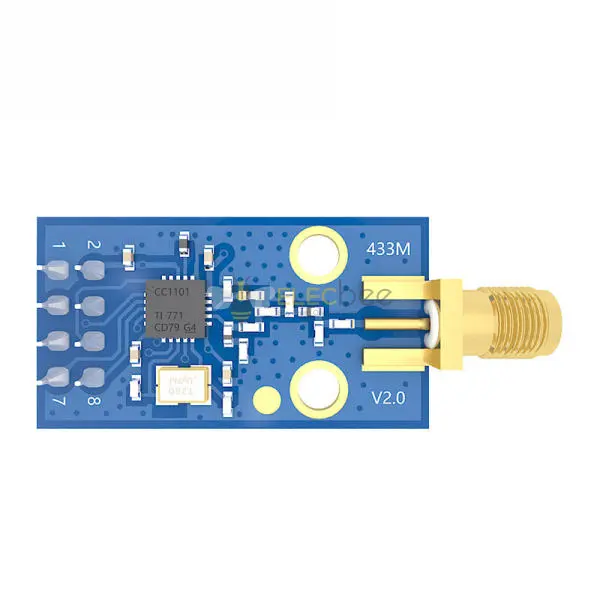

Elecbee E07-M1101D-SMA CC1101 433MHz RF Transceiver Module 10dBm 400m SPI 1.8-3.6V with SMA Antenna

CC1101 433MHz Industrial Wireless Transceiver Module

The Elecbee E07-M1101D-SMA is an industrial-grade CC1101 RF transceiver module developed for bidirectional wireless data transmission in embedded systems, telemetry equipment, remote controls and low-power IoT devices. It provides a software-adjustable 387-464MHz operating range and is optimized for 433MHz communication with the included external SMA rubber antenna.

Technical Specifications

• Product model: E07-M1101D-SMA
• RF chipset: CC1101
• Center frequency: 433MHz
• Operating frequency: 387-464MHz, software adjustable
• Recommended frequency range: 433MHz ±10MHz
• Maximum RF output power: 10dBm, approximately 10mW
• Measured communication distance: Up to 400m under suitable open-area conditions
• Air data rate: 1.2-500Kbps; up to 20Kbps recommended for 433MHz operation
• Communication interface: SPI Mode 0, up to 10Mbps
• Packet length: 1-32 bytes
• Data buffer: Three-level FIFO
• RSSI monitoring: Supported
• Receive sensitivity: -117dBm at 250Kbps
• Supply voltage: 1.8-3.6V DC
• Peak transmit current: 29.2mA
• Receive current: 14.7mA
• PCB dimensions: 15 × 28mm
• Host interface: 2 × 4-pin, 2.54mm pitch
• Antenna interface: Standard SMA
• Operating temperature: -30°C to +85°C
• Storage temperature: -40°C to +125°C
• Operating humidity: 10%-90% RH

Engineering and Industrial Applications

This CC1101 wireless module can be integrated into industrial monitoring equipment, wireless sensor nodes, data acquisition systems, telemetry terminals, home automation devices, access-control systems, remote-control equipment and battery-powered embedded products.

Stable Low-Power RF Communication

The module combines up to 10dBm RF output, RSSI monitoring and FIFO buffering to support stable bidirectional data exchange. Its 1.8-3.6V operating range and low transmit and receive currents make it suitable for compact, battery-powered wireless designs.

Embedded System Compatibility

The standard SPI Mode 0 interface enables connection to microcontrollers and embedded development boards. Its 2.54mm pin spacing supports universal PCBs, breadboards and Dupont jumper wires, while the SMA interface allows connection to the included 433MHz external antenna or another compatible 50-ohm antenna.

Package Contents

• 1 × E07-M1101D-SMA CC1101 RF transceiver module
• 1 × 433MHz external SMA rubber antenna
