Elecbee DSTIKE Deauther MINI ESP8266 Wi-Fi Development Board with OLED and NodeMCU

This tiny ESP8266 development board is a small version of our WiFideauther projects. It comes installed with the latest ESP8266 Deauther software.

With this software, you can perform different attacks to test WiFi networks.

Please note that the ESP8266 does only support 2.4GHz. For more details on the software, visit:



You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.



Display: SH1106 1.3"

OLED Display SDA: GPIO 5 (D1)

Display SCL/SCK: GPIO 4 (D2)

WS2812b LED: GPIO 15 (D8)

Button Up: GPIO 12

Button Down: GPIO 13

Button Select: GPIO 14

High Light LED: GPIO16

All ESP8266 pins break out.



I designed this development board specially for Spacehuhn's great project: ESP8266 Deauther

It has been authorized by him and is officially supported.

Thanks to every customer that leaves feedback! I will keep improving this board.



Only ~80mA power usage

LM39100 Low Voltage Low-Dropout Regulator

TP4056+PL5353A battery protection solution

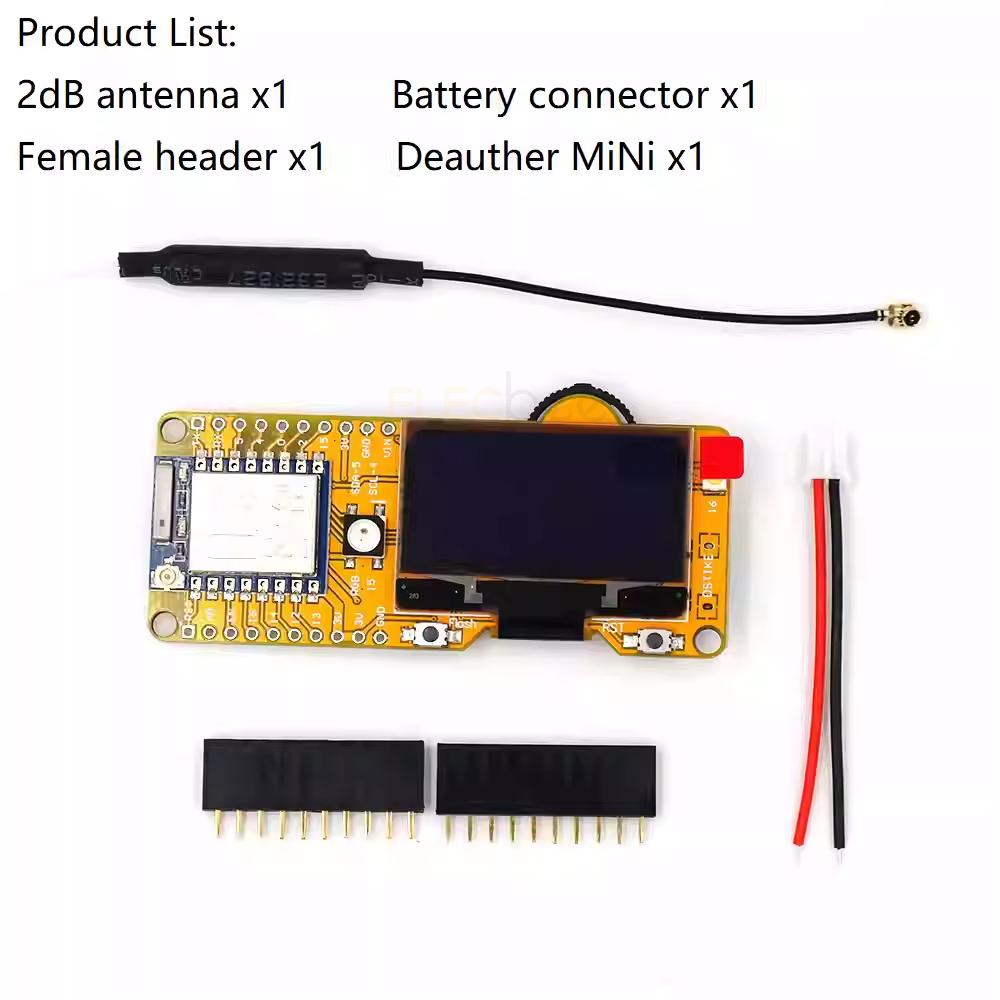

Included 2dB antenna

All GPIO breakouts and 3.3 and 5V output

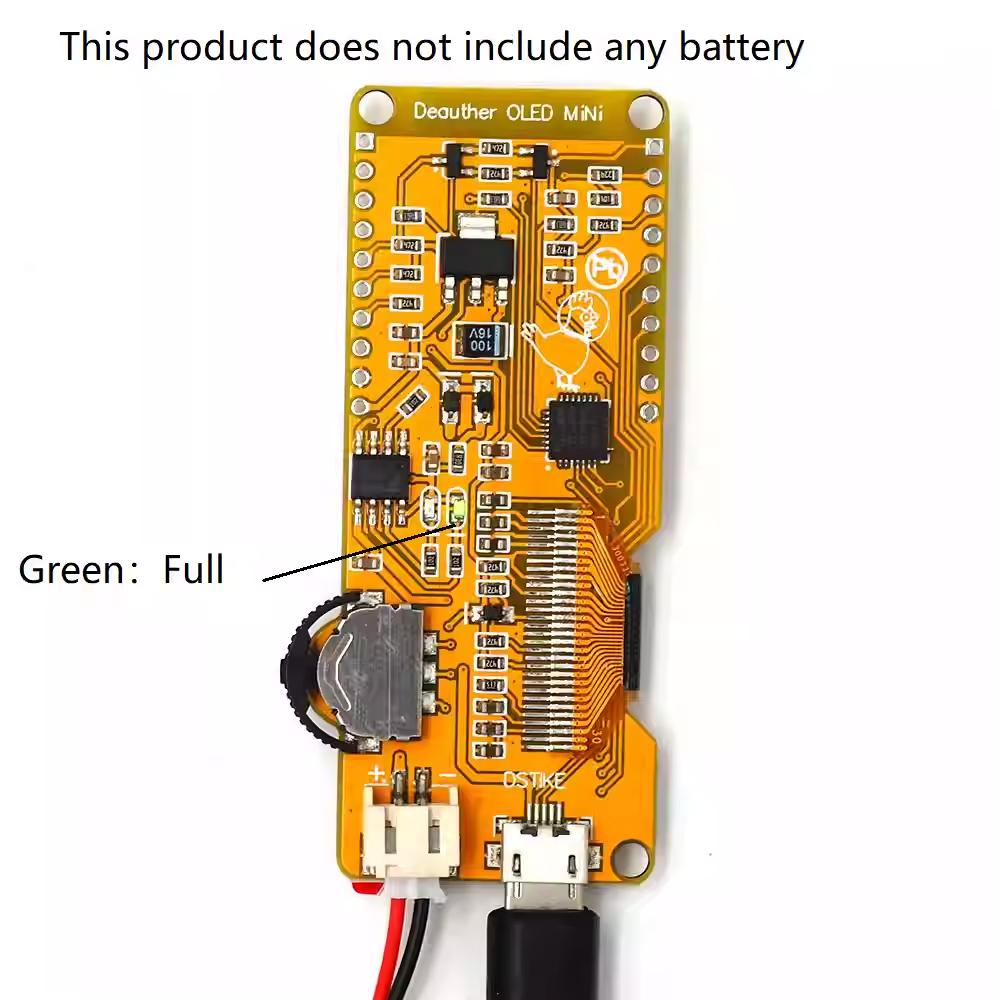

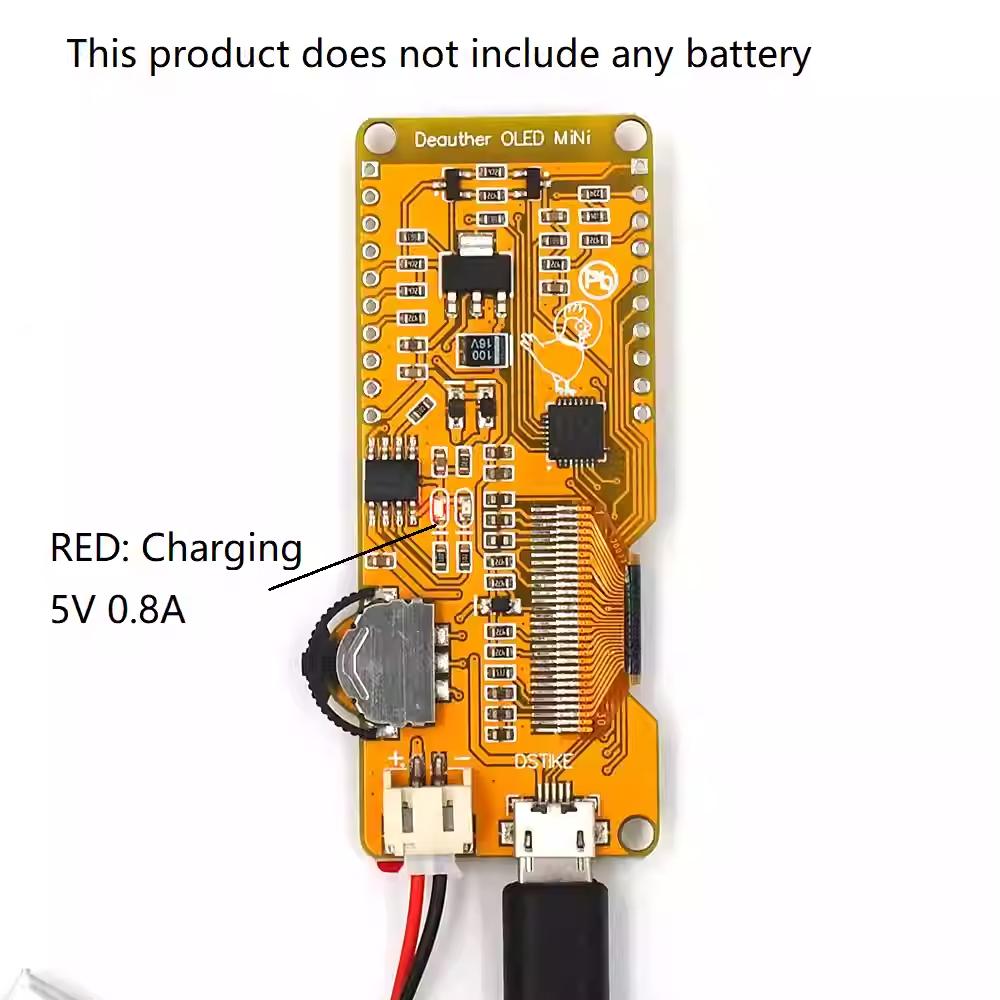

2 LEDs to indicate battery charging status (Red:Charging,Green:Full)

Protection: short, over charging, over discharging, temperature



WiKi



Blog



Use it only for testing and educational purposes against your own devices!

I don't take responsibility for what you do with it.



Please check the legal regulations for your country to make sure you don't violate any laws.
