Elecbee DP83848 Ethernet PHY Module 10/100Base-TX RMII MII 3.3V Network Transceiver for STM32 ESP32 FPGA Embedded Ethernet

DP83848 Ethernet PHY Module 10/100Base-TX RMII MII Network Transceiver for Embedded Ethernet Systems

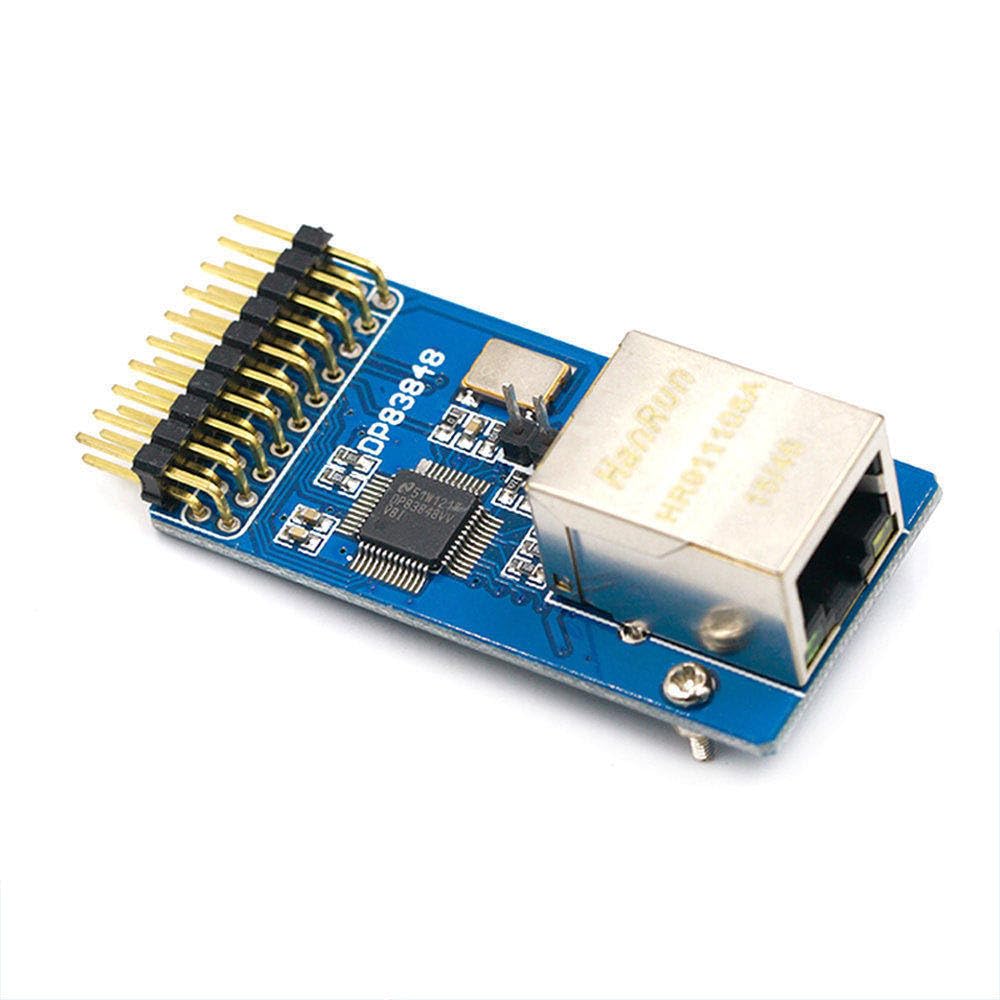

Elecbee DP83848 Ethernet PHY module is a 10/100Base-TX physical layer transceiver designed for embedded Ethernet communication, industrial networking, IoT gateways, embedded controllers, data acquisition systems, and network-enabled development platforms. Based on the DP83848 PHY architecture, the module supports RMII and MII interfaces for integration with STM32, ESP32, NXP processors, FPGA platforms, and embedded Linux systems.

Core Technical Specifications

• Chipset: DP83848
• Supported Variants: DP83848CVV, DP83848IVV
• Product Type: Ethernet PHY Module
• Ethernet Standard: IEEE 802.3 10Base-T / 100Base-TX
• Communication Interfaces: RMII, MII
• Auto-MDIX Support: Yes
• MAC Interface Voltage: 3.3V
• Operating Voltage: 3.3V ±0.3V
• Technology Process: 0.18μm CMOS
• Package Type: LQFP-48 (7mm × 7mm)
• Power Architecture: Low-Power Design

Embedded Ethernet Applications

The module is suitable for embedded web servers, industrial automation controllers, Ethernet-enabled IoT devices, industrial gateways, remote monitoring equipment, PLC communication systems, network communication modules, and embedded Ethernet development projects.

IEEE 802.3 Ethernet PHY Communication

The DP83848 PHY supports IEEE 802.3 compliant 10Base-T and 100Base-TX Ethernet communication. Auto-MDIX functionality simplifies cable deployment while RMII and MII interfaces provide flexible integration into embedded networking architectures.

Microcontroller and FPGA Integration

The Ethernet PHY module is compatible with STM32 Ethernet applications, ESP32 Ethernet projects, NXP processors, i.MX RT platforms, FPGA networking systems, ARM-based controllers, embedded Linux devices, and custom Ethernet communication equipment.

Compatibility Information

Compatible with STM32, ESP32, NXP LPC series, i.MX RT processors, FPGA platforms, industrial controllers, embedded gateways, Ethernet communication systems, and IEEE 802.3 networking applications supporting RMII or MII interfaces.
