Elecbee CK003 Capacitive Touch Switch Module 3.3–5V Active Low Digital Output HMI Relay Trigger Arduino Raspberry Pi
SKU: EB0043576
Favorites
Key Features
Industrial HMI Input Interface: Designed as a capacitive touch input switch for human-machine interaction systems and industrial control panels.
Reliable Relay Trigger Output: Provides stable active-low digital signal for direct relay triggering and automation control systems.
Wide System Compatibility: Supports Arduino, Raspberry Pi, ARM, and MCU platforms for embedded and industrial applications.
High-Sensitivity Touch Detection: Advanced capacitive sensing IC ensures fast response and stable operation in noisy environments.
Low-Power Intelligent Operation: Auto-calibration and power-saving standby mode ensure long-term stable performance.
Show More
In-Stock
Qty.
1
Unit Price
$ 2.15
Ext. Price
$ 2.15
$ 2.15
Specifications
Attribute
Value
Search
MCU/SoC Model
Digital Capacitive Touch
CPU Architecture
TIONIMAGE0
Memory
Arduino IDE
Description

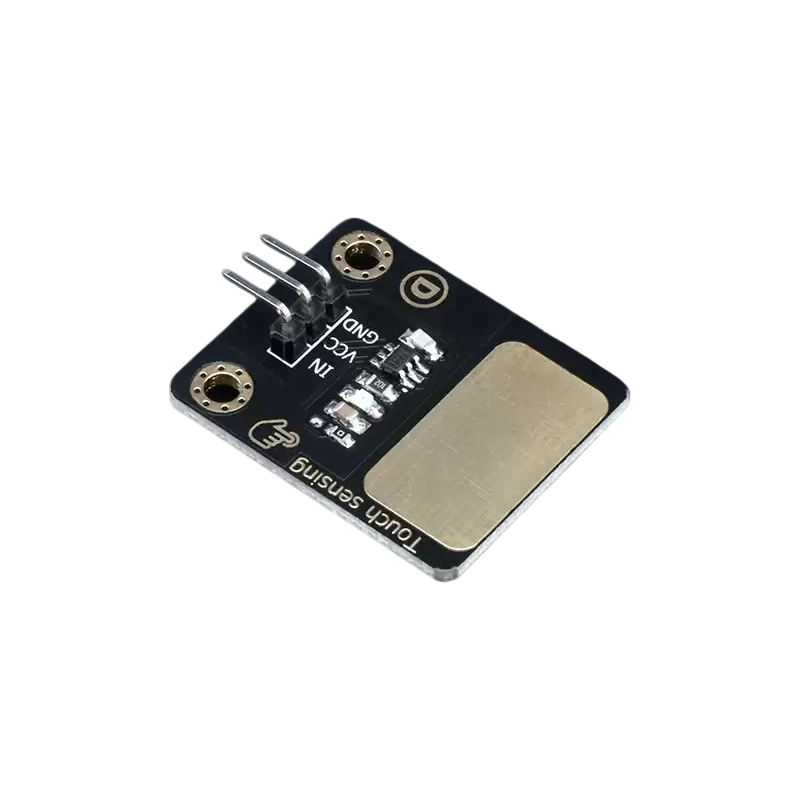

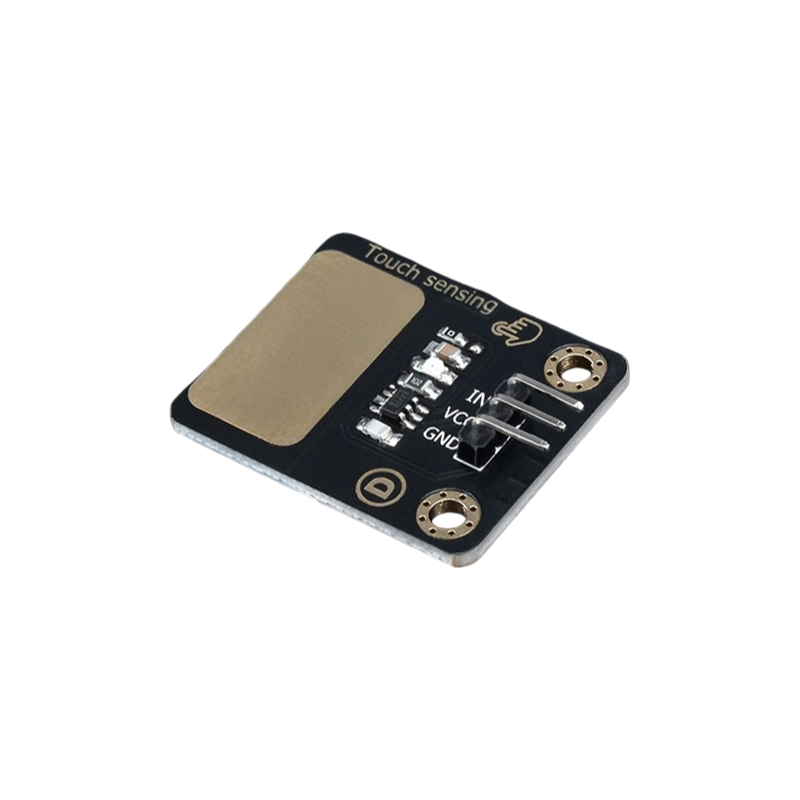

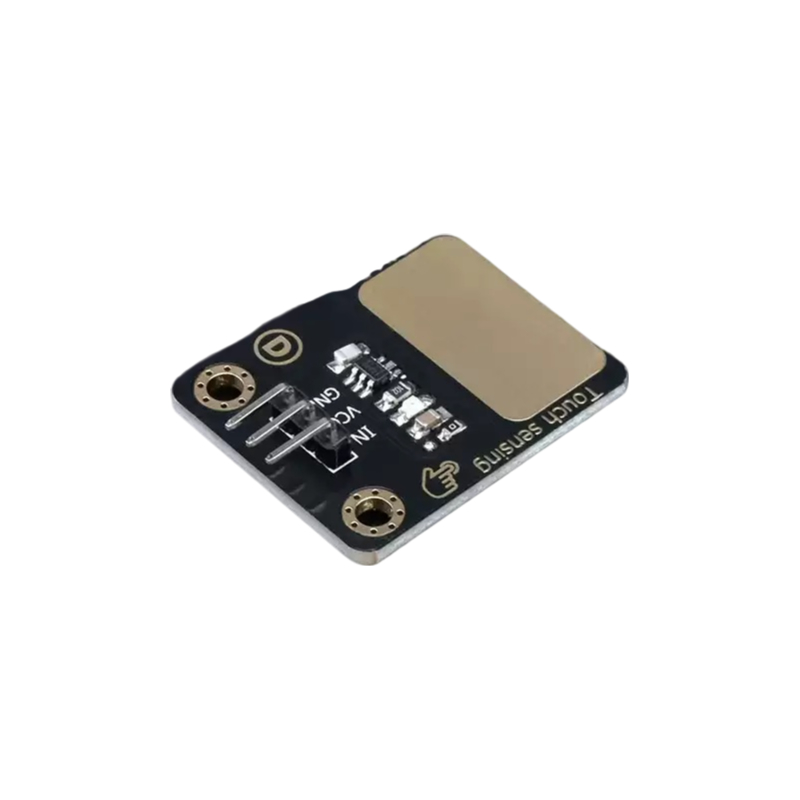

Elecbee CK003 Capacitive Touch Switch Module
The Elecbee CK003 capacitive touch switch module is designed for industrial control interfaces and human-machine interaction (HMI) systems. It provides stable active-low digital output for relay triggering, embedded control, and automation input applications across Arduino, Raspberry Pi, ARM, and MCU platforms.
Technical Specifications
- Model: CK003
- Function: Capacitive Touch Switch Input Module
- Operating Voltage: 3.3V – 5V
- Output Type: Active Low Digital Signal (Toggle Control)

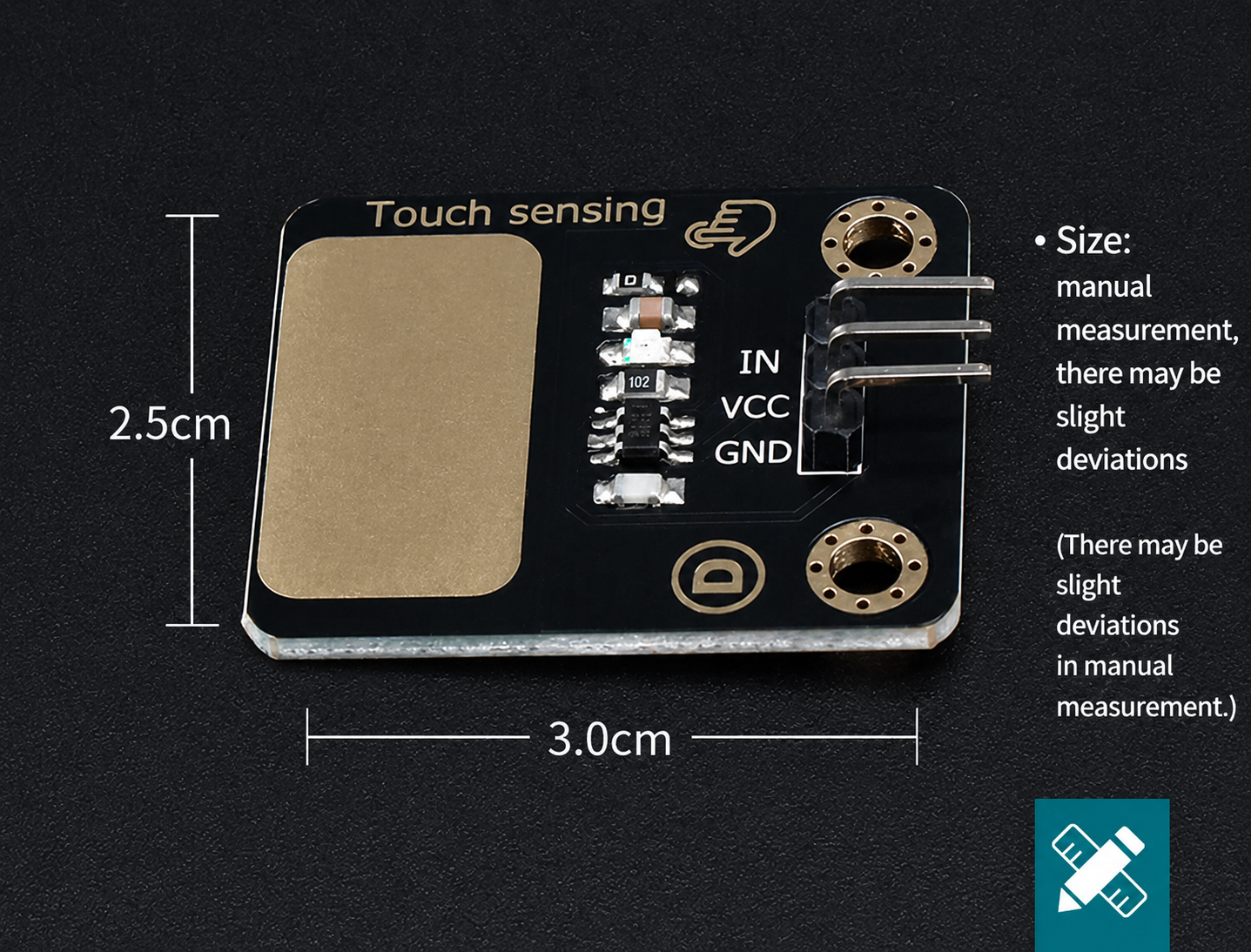

- Dimensions: 25 × 30 mm
- Process: SMT / Soldered PCB
- Interface: GPIO Digital Input
Industrial Control Features
- High-sensitivity capacitive sensing for reliable HMI input detection
- Stable digital switching output for relay control systems
- Automatic calibration on power-up for consistent performance
- LED status indicator for real-time signal monitoring
- Low-power standby mode with intelligent state switching
Application Scenarios
Widely used in industrial automation systems, relay control panels, smart lighting systems, human-machine interfaces (HMI), IoT input modules, DIY electronics, and embedded control devices.
System Compatibility
Fully compatible with Arduino development boards, Raspberry Pi GPIO systems, ARM microcontrollers, and relay modules for industrial switching and automation integration.
