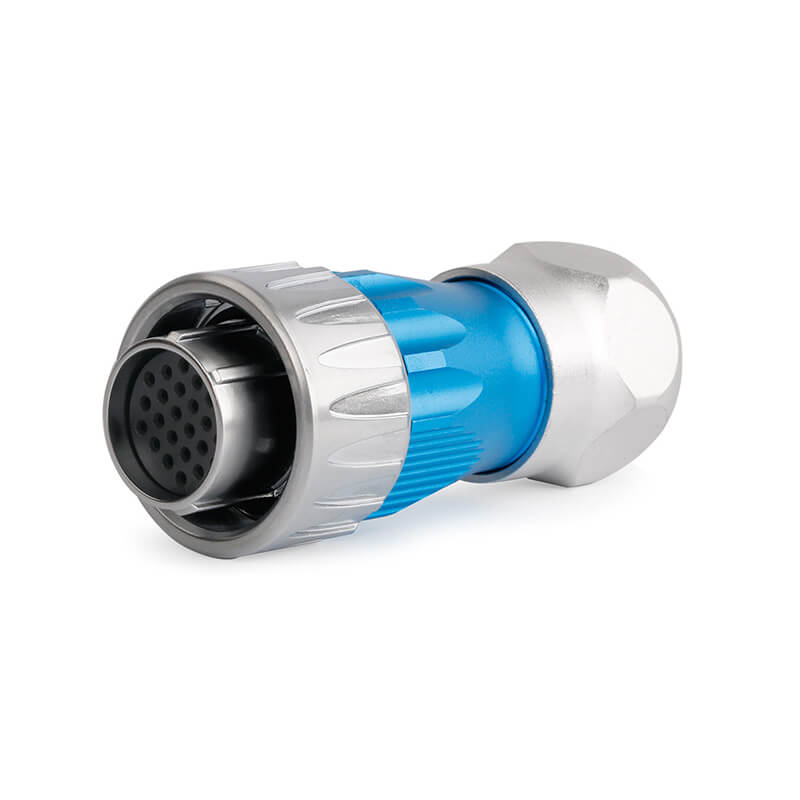

Elecbee DH24 Solder Wire Power Cable Conector Female Plug 24 Pin Metal Shell Waterproof Industrial Connector
SKU: EB-044-0054
Favorites
Key Features
Description
DH24, Metal Waterproof, Aviation Connector, Inline Cable Connector, 24 Pin Female Mating Plug
DH24 3 Pin, M20 Waterproof Circular Cable Wire Power Signal Connector, Female Plug Adapter For Truck Tractor Car Industry
The DH series is one of the best-selling series waterproof connectors made with high-performance engineering plastics. The quick plug design allows one-hand plug/unplug. The copper needle of the power is adopted gold plated technology, which can resist corrosion and suitable for high low temperatures. DH20 series connectors have been widely used in a variety of challenging environments and situations, such as audio-visual equipment, medical equipment, industrial control, inspection, and measurement, due to their small size, flexible operation and automatic insertion and removal. Compact components, simple operation, fast and stable connection, IP67 rated outdoor waterproof performance. Satisfy the quality and meet the environmental protection requirements of international industrial equipment.
Show More
In-Stock
Qty.
1
Unit Price
$ 16.88
Ext. Price
$ 16.88
$ 16.88
Qty.
Unit Price
Ext. Price
10+
$16.04
$ 160.40
20+
$15.19
$ 303.80
100+
$13.50
$ 1350.00
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder Cup
Contact Type
Female Pin
Number of Positions
24 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
250VAC
Connector Series
DH24
Color
Blue, Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
22AWG~20AWG
Description
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4 /5
All reviews come from verified purchasers
5
60%
4
20%
3
20%
2
0%
1
0%
j****d
Perfect fit for my industrial control setup. The gold-plated pins ensure a reliable connection, and the IP67 rating gives me peace of mind in wet conditions.
M****a
Solid build with a sturdy metal shell. Plug/unplug is smooth, even with gloves on. One of the better aviation connectors I've used for outdoor applications.
F****n
Used this on a tractor lighting system. After three months in harsh weather, no corrosion and zero signal loss. Great value for the quality.
s****g
Good connector overall, but the cable entry is a bit tight when using thicker gauge wires. Took extra care during installation.
D****s
Exactly as described. The one-hand quick plug design works flawlessly. Ideal for fast maintenance in my inspection equipment.
