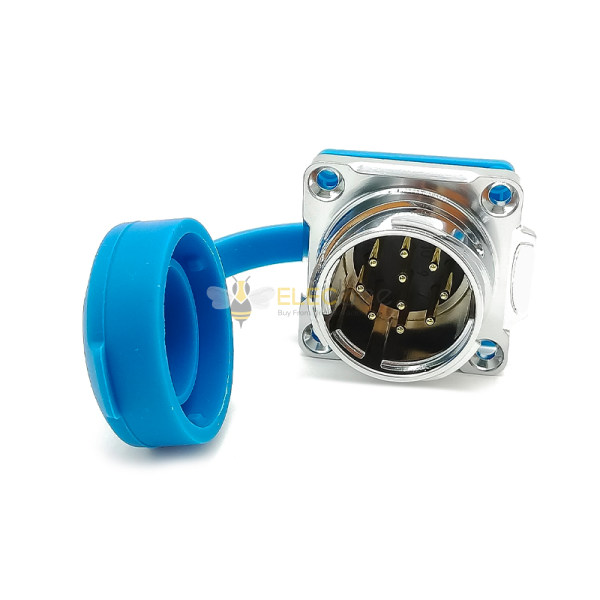

Elecbee DH24 10 Pin Waterproof Quick Connect Disconnect Electrical Connector M20 Male Socket Audio Equipment Industry Signal Connector
SKU: EB-044-0057
Favorites
Key Features
Description
DH24, Metal Waterproof, Aviation Connector, For Truck Tractor Car Industry, 10 Pin Male Socket
DH24 3 Pin, M20 Waterproof Circular Cable Wire Power Signal Connector, Female Plug Adapter For Truck Tractor Car Industry
The DH series is one of the best-selling series waterproof connectors made with high-performance engineering plastics. The quick plug design allows one-hand plug/unplug. The copper needle of the power is adopted gold plated technology, which can resist corrosion and suitable for high low temperatures. DH20 series connectors have been widely used in a variety of challenging environments and situations, such as audio-visual equipment, medical equipment, industrial control, inspection, and measurement, due to their small size, flexible operation and automatic insertion and removal. Compact components, simple operation, fast and stable connection, IP67 rated outdoor waterproof performance. Satisfy the quality and meet the environmental protection requirements of international industrial equipment.
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Male Pin
Number of Positions
10 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
10A
Rated Voltage
400VAC
Connector Series
DH24
Color
Blue, Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
18AWG~16AWG
