Elecbee PWM DC Motor Speed Controller, 10-60 V, 10 A Continuous, 20 A Limit, 25 kHz, 0-100%, 1200 W Maximum

SKU: 1727543
Favorites

Key Features

PWM DC MOTOR CONTROL: Adjusts the output to a compatible DC motor through a 0-100% PWM control range. The module supports DC 10-60 V input and operates at a 25 kHz PWM frequency.

CONTINUOUS AND MAXIMUM RATINGS: Supports up to 10 A and 450 W for long-duration operation with sufficient cooling. The 20 A output current and 1200 W power figures are maximum limits, not continuous ratings.

REMOTE POTENTIOMETER CONTROL: The linear speed-control potentiometer connects to the board through a removable 20 cm lead, allowing separate panel installation through a 7 mm mounting hole.

HEATSINK AND FUSE DESIGN: Features multiple aluminum heatsinks, an onboard glass fuse and four screw terminals for the DC supply and motor. The module measures approximately 77 × 45 × 28 mm.

COMPLETE CONTROL SET: Includes one controller module, one wired potentiometer, one control knob, one mounting nut and two washers. Maintain adequate ventilation and keep the motor, supply, current and power within the specified limits.

Show More
In-Stock
Qty.
1
Unit Price
$ 4.11
Ext. Price
$ 4.11
$ 4.11
Qty.
Unit Price
Ext. Price
10+
$3.90
$ 39.00
20+
$3.70
$ 74.00
100+
$3.29
$ 329.00
Inquiry for more quantity?
Description

DC 10-60 V · 25 kHz PWM CONTROL

20 A Maximum PWM DC Motor Speed Controller

A wide-voltage DC motor controller with remote linear potentiometer adjustment, 0-100% PWM control and clearly separated continuous and maximum operating limits.

PWM DC motor speed controller board with wired linear potentiometer

SPEED ADJUSTMENT

Remote Linear Potentiometer Control

The external potentiometer adjusts the PWM command range from 0-100%. Its removable 20 cm cable allows the control knob to be installed separately from the main board.

10-60 V DC Wide input-voltage range for compatible DC motor systems.
25 kHz PWM Fixed PWM control frequency for motor-output adjustment.
0-100% Control Potentiometer-controlled PWM adjustment range.
Front view of PWM motor controller with potentiometer knob and connection cable

TECHNICAL DATA

Key Specifications

Brand Elecbee
Product Type PWM DC motor speed controller
Input Voltage DC 10-60 V
Continuous Current Up to 10 A with sufficient cooling
Maximum Output Current 20 A limit
Continuous Load Up to 450 W
Maximum Power 1200 W limit
PWM Frequency 25 kHz
PWM Control Range 0-100%
Adjustment Method External linear potentiometer
Potentiometer Lead 20 cm
Potentiometer Hole 7 mm
Module Size Approximately 77 × 45 × 28 mm
PCB Mounting Size Approximately 73 × 40 mm
20 A PWM DC motor speed controller specifications and dimensions

WIRING

Four-Terminal Power and Motor Connection

The screw terminals provide separate connections for motor negative, motor positive, power-supply negative and power-supply positive. Verify every connection and confirm supply polarity before applying power.

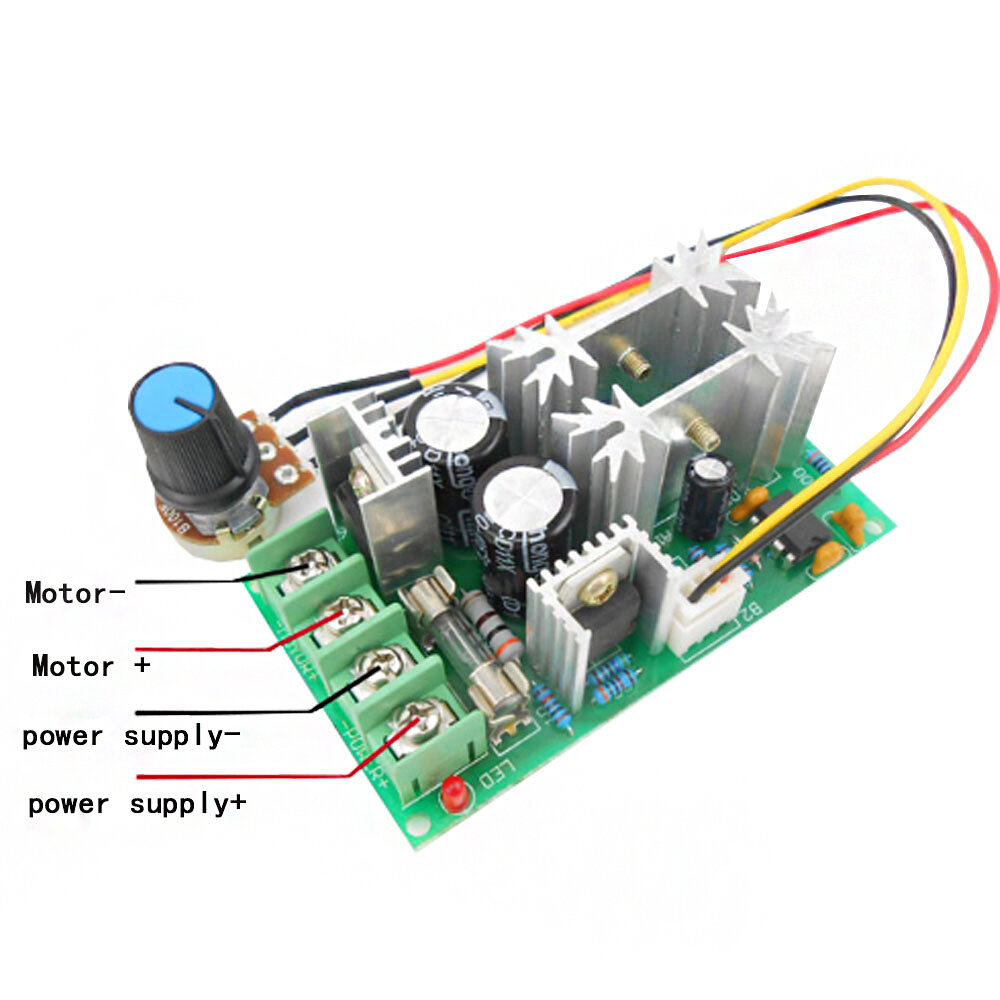

PWM motor controller terminal wiring for motor and DC power supply

BOARD CONSTRUCTION

Multiple Heatsinks and Onboard Fuse

The open-board controller uses multiple heatsinks around the power components and an onboard glass fuse. Install it in a dry location with sufficient clearance and unrestricted airflow.

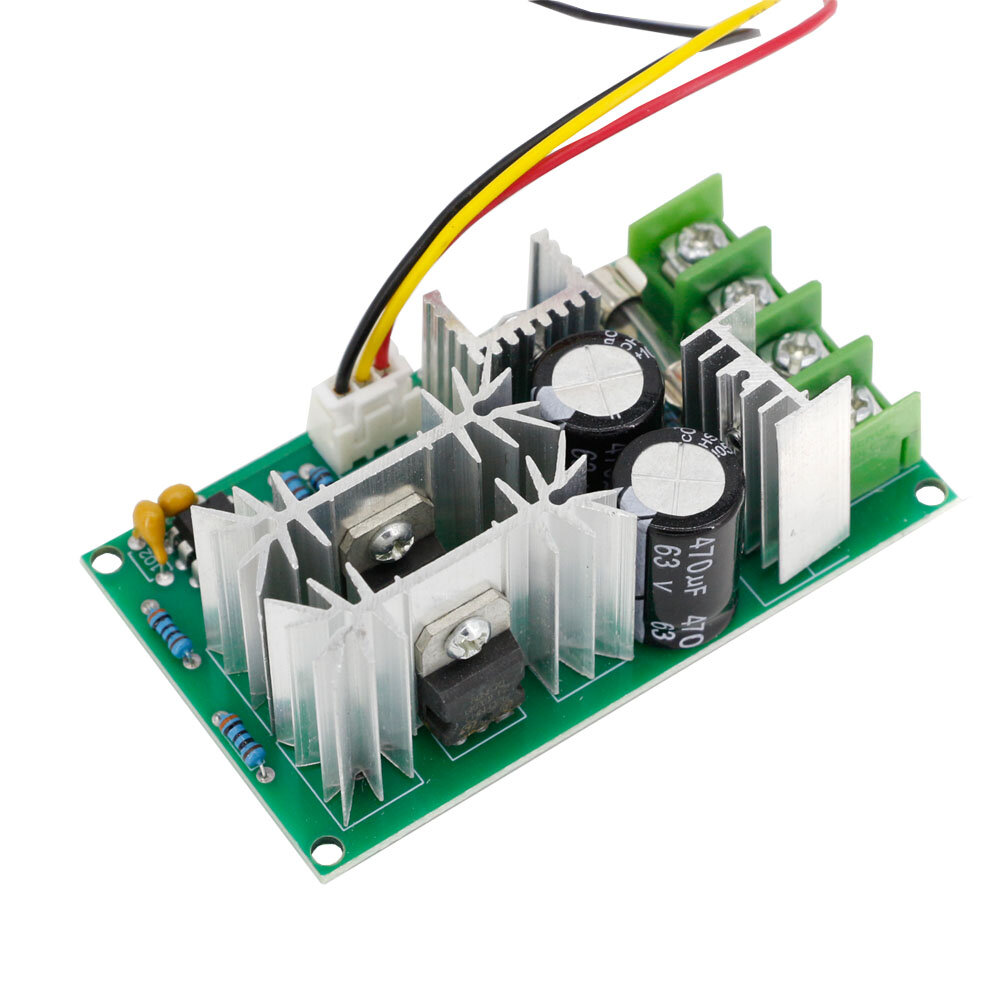

Close-up view of PWM motor controller heatsinks fuse and capacitors

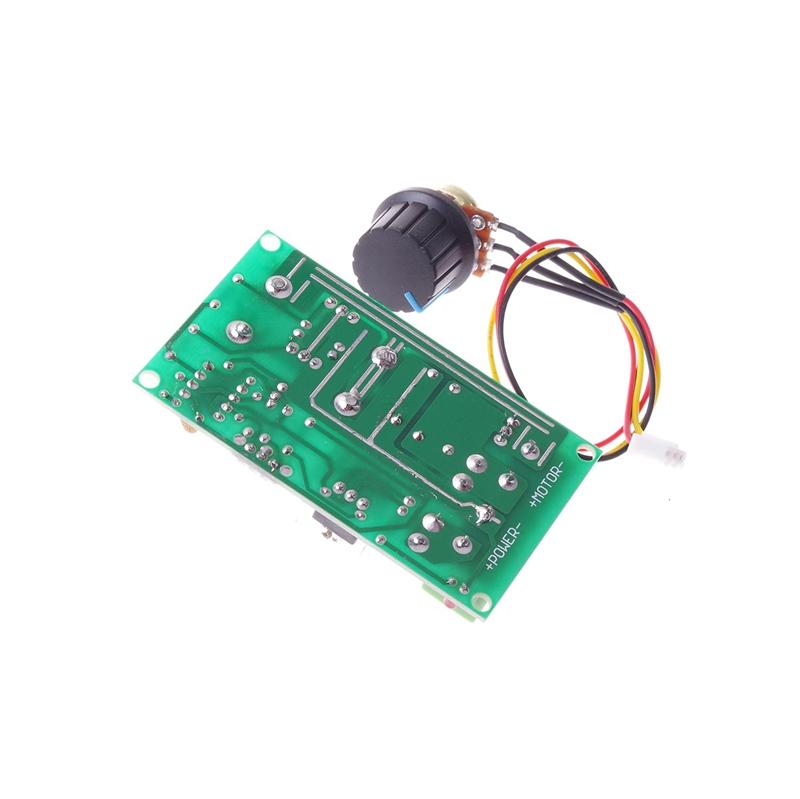

Rear PCB view of the PWM DC motor speed controller
Important Continuous-Use Limits The 20 A current and 1200 W power figures are maximum limits. For long-duration operation, keep the load at or below 10 A and 450 W and maintain sufficient ventilation. Ensure the DC supply and motor remain within the module’s voltage, current and power limits.
Package Contents 1 × PWM DC motor speed controller, 1 × potentiometer with 20 cm cable, 1 × control knob, 1 × mounting nut and 2 × mounting washers
