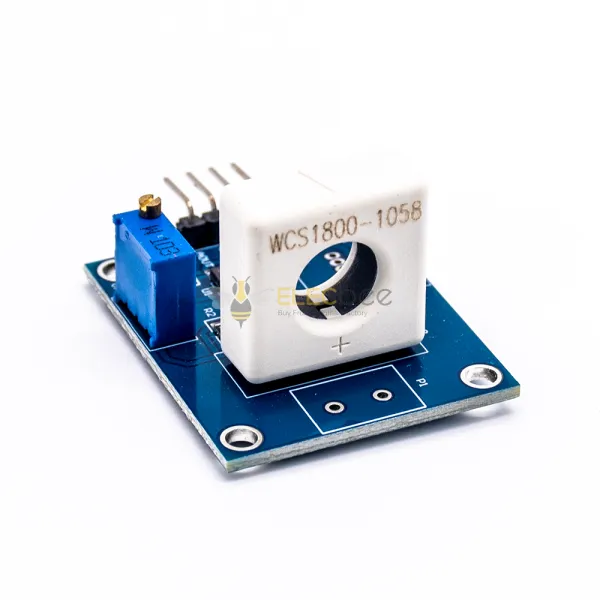

Elecbee WCS1800 Hall Effect Current Sensor Module 35A Overcurrent Protection Analog TTL Output
SKU: EB0043862
Favorites
Key Features
Dual Signal Output: Supports analog voltage output and TTL digital output for ADC acquisition, MCU monitoring, PLC integration, and overcurrent protection applications.
35A Current Monitoring: Hall-effect current sensor supports ±35A DC current detection and AC current monitoring for industrial power systems and embedded electronics.
Configurable Overcurrent Protection: Adjustable threshold detection enables overload and short-circuit monitoring with automatic TTL trigger output and onboard LED indication.
Embedded System Compatibility: Analog signal output supports direct ADC sampling while TTL signal output integrates with microcontroller IO interfaces and industrial controllers.
Industrial Automation Applications: Suitable for power monitoring, battery management, laboratory testing, instrumentation systems, smart manufacturing, and electronic development projects.
Show More
In-Stock
Qty.
1
Unit Price
$ 10.08$ 11.86
Ext. Price
$ 10.08$ 11.86
$ 10.08$ 11.86
Specifications
Attribute
Value
Search
Model
WCS1800
Description
Elecbee WCS1800 Hall Effect Current Sensor Module
Elecbee WCS1800 Hall Effect Current Sensor Module supports real-time DC and AC current monitoring, analog voltage acquisition, TTL signal output, and configurable overcurrent protection for embedded systems, industrial automation, electronic instrumentation, and power monitoring applications. The module integrates Hall-effect sensing technology with stable analog and digital signal interfaces for MCU, ADC, and PLC integration.
Technical Specifications
- Model: WCS1800
- Sensor Type: Hall Effect Current Sensor Module
- Operating Voltage: 5V DC
- DC Current Detection Range: ±35A
- AC Current Detection Range: 25A
- Linearity: 60mV/A
- Overcurrent Detection Range: 0.5A–35A
- Output Type: Analog Voltage Output + TTL Digital Output
- Signal Interface: ADC Compatible / MCU IO Compatible
- Status Indicator: Overcurrent LED Indicator
- Board Size: 37 × 31mm
Analog and TTL Dual Signal Output
The module provides analog voltage output for ADC current sampling and TTL digital output for programmable overcurrent alarm applications. The analog signal can be directly connected to microcontroller ADC interfaces, while the digital signal supports MCU and PLC logic control systems.
Hall-Effect Current Detection Technology
The WCS1800 module uses Hall-effect sensing technology for isolated current measurement and stable signal conversion. The output voltage changes proportionally with the detected current, enabling accurate electronic current monitoring and embedded power management.
Overcurrent Protection Function
The adjustable overcurrent threshold supports short-circuit protection and overload monitoring. When the measured current exceeds the configured limit, the TTL output switches from low level to high level and activates the onboard status indicator.
Industrial and Embedded Applications
Suitable for Arduino projects, STM32 development, PLC automation systems, battery monitoring equipment, industrial instrumentation, smart manufacturing systems, laboratory testing, electronic product development, and power control applications.
Compatibility Information
Compatible with ADC acquisition systems, microcontrollers, PLC controllers, embedded development boards, industrial automation equipment, IoT monitoring systems, and electronic protection circuits requiring analog and digital current sensing interfaces.
,
,
,
,
