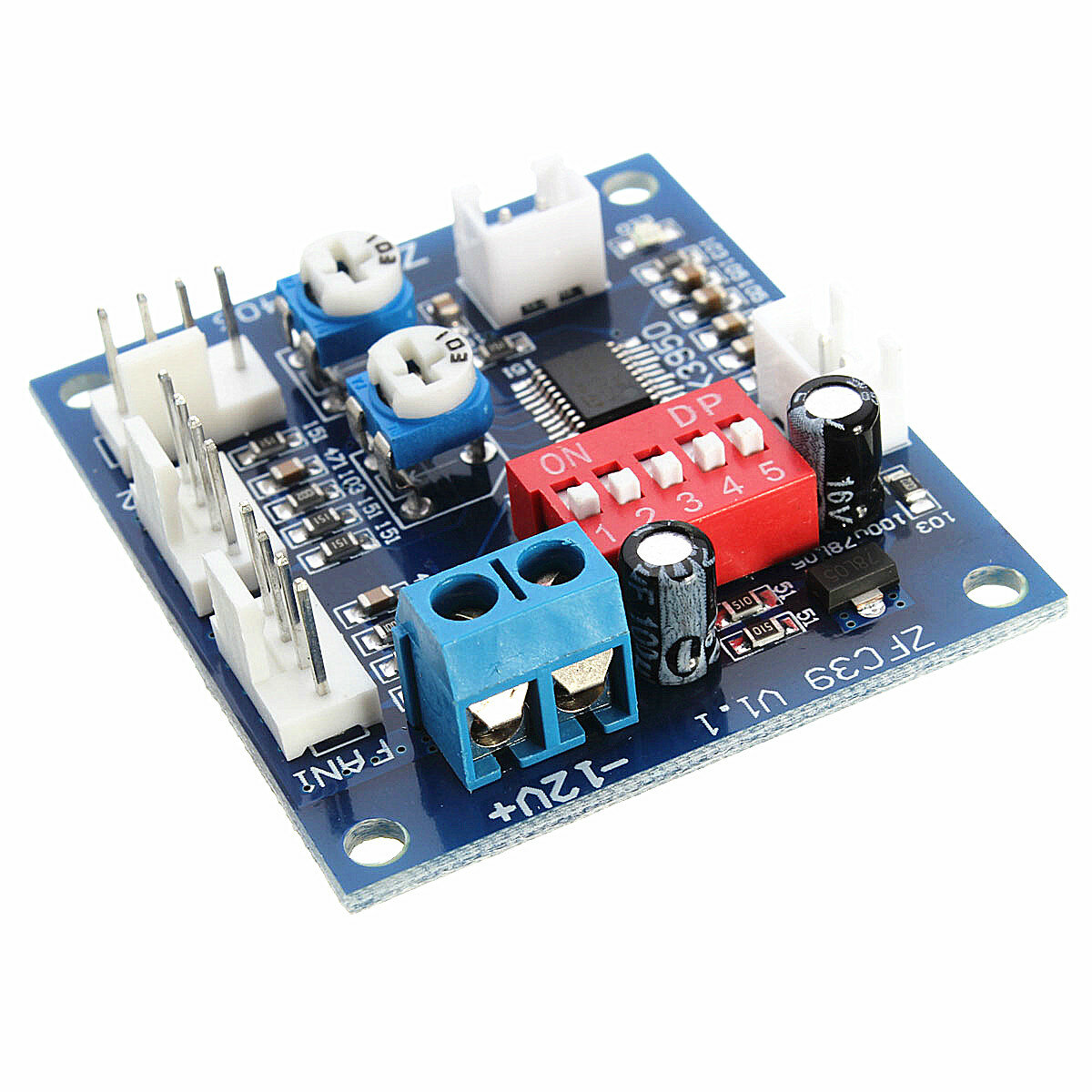

Elecbee DC 12V Four Wire Thermostat PWM PC CPU Fan Temperature Control Speed Controller Module

SKU: EB0048509

Favorites

Key Features

xa0

Board size: the length and breadth 50mm x 43mm x 13mm, the positioning hole position 44mm x 37mm, 3mm diameter

Operating voltage: DC12V

Circuit load capacity: maximum current per output 5A, the bus currents up 9A

Output Range: The first channel 20% -100%, or 40% -100% (TFL = ON)

xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa010% -100% of the second path and the third path

xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 Note: The above range only PWM range, the actual fan control effect will vary depending on the fan.

Temperature probe parameters: 50K B = 3950

Thermostat temperature zone error: error depending on the temperature probe, generally 3-5%

Stall alarm minimum speed: 700-800 rpm

Function setting switch Description:

TFL (No. 1): PWM channel with the lowest temperature setting, when ON, the lowest PWM of FAN1 is 40%.

When OFF, the minimum PWM of FAN1 is 20%
TP1 and TP2 (No. 2 and 3): Temperature channel control temperature zones are interpreted as follows (need to match the temperature probe used):

xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0

TP1	TP2	Accelerated temperature	Full temperature
OFF	OF	35℃	45℃
ON	OF	40℃	55℃
OF	ON	50℃	70℃
ON	ON	60℃	90℃

Lower than the temperature of the minimum rotation speed output accelerated over full temperature is always full output.

(BF1,xa0BF2)Correspondencexa0FAN1,xa0FAN2xa0stopxa0thexa0alarmxa0functionxa0switch.xa0Whenxa0thexa0correspondingxa0open,xa0Thexa0controllerxa0willxa0soundxa0(withxa0buzzerxa0needed)xa0andxa0lightxa0alarm,xa0Fansxa0restoredxa0afterxa0thexa0alarmxa0isxa0clearedxa0automaticallyxa0rotated.xa0Ifxa0BF1xa0andxa0BF2xa0arexa0openxa0(ON),xa0thexa0FAN1,xa0FAN2xa0havexa0anyxa0onexa0orxa0twoxa0stops,xa0thexa0controllerxa0willxa0alarm.

Note:

Please note that the controller is a four-wire PWM fan controller can control four-standardized protocols in line with Intel's four-wire fan (all four lines of the chassis and CPU fan are met, a server with more than 97% can control fan violence). Unable to control two-wire or three-wire fan, you can not completely turn off the fan!

xa0

Board size: the length and breadth 50mm x 43mm x 13mm, the positioning hole position 44mm x 37mm, 3mm diameter

Operating voltage: DC12V

Circuit load capacity: maximum current per output 5A, the bus currents up 9A

Output Range: The first channel 20% -100%, or 40% -100% (TFL = ON)

xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa010% -100% of the second path and the third path

xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0 Note: The above range only PWM range, the actual fan control effect will vary depending on the fan.

Temperature probe parameters: 50K B = 3950

Thermostat temperature zone error: error depending on the temperature probe, generally 3-5%

Stall alarm minimum speed: 700-800 rpm

Function setting switch Description:

TFL (No. 1): PWM channel with the lowest temperature setting, when ON, the lowest PWM of FAN1 is 40%.

When OFF, the minimum PWM of FAN1 is 20%
TP1 and TP2 (No. 2 and 3): Temperature channel control temperature zones are interpreted as follows (need to match the temperature probe used):

xa0 xa0 xa0 xa0 xa0 xa0 xa0 xa0

TP1	TP2	Accelerated temperature	Full temperature
OFF	OF	35℃	45℃
ON	OF	40℃	55℃
OF	ON	50℃	70℃
ON	ON	60℃	90℃

Lower than the temperature of the minimum rotation speed output accelerated over full temperature is always full output.

Show Less

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

V5A

Show Similar Products >

Description

1 x DC 12V Four Wire Thermostat PWM Fan Speed Controller Module
1 x Cable
1 x Probe

Description:

Intel standardized four-wire fan control protocol, supports all standard four-wire interface chassis fan and CPU fan control, while more than 95 percent support violent fan speed control, three-way independent control of different functions, with the way temperature shift and two-way stall detection alarm function (with accessories), the largest single-channel support 12V5A fan, the entire board supports up to 12V9A total current input

Currently recording uncontrollable four-wire Fan Model Summary:

Delt FFR0612VHE, FFR0612DHE

Dimensions 6038

Non-standard anti-timing fan (reverse adjust speed)

1 x DC 12V Four Wire Thermostat PWM Fan Speed Controller Module
1 x Cable
1 x Probe
