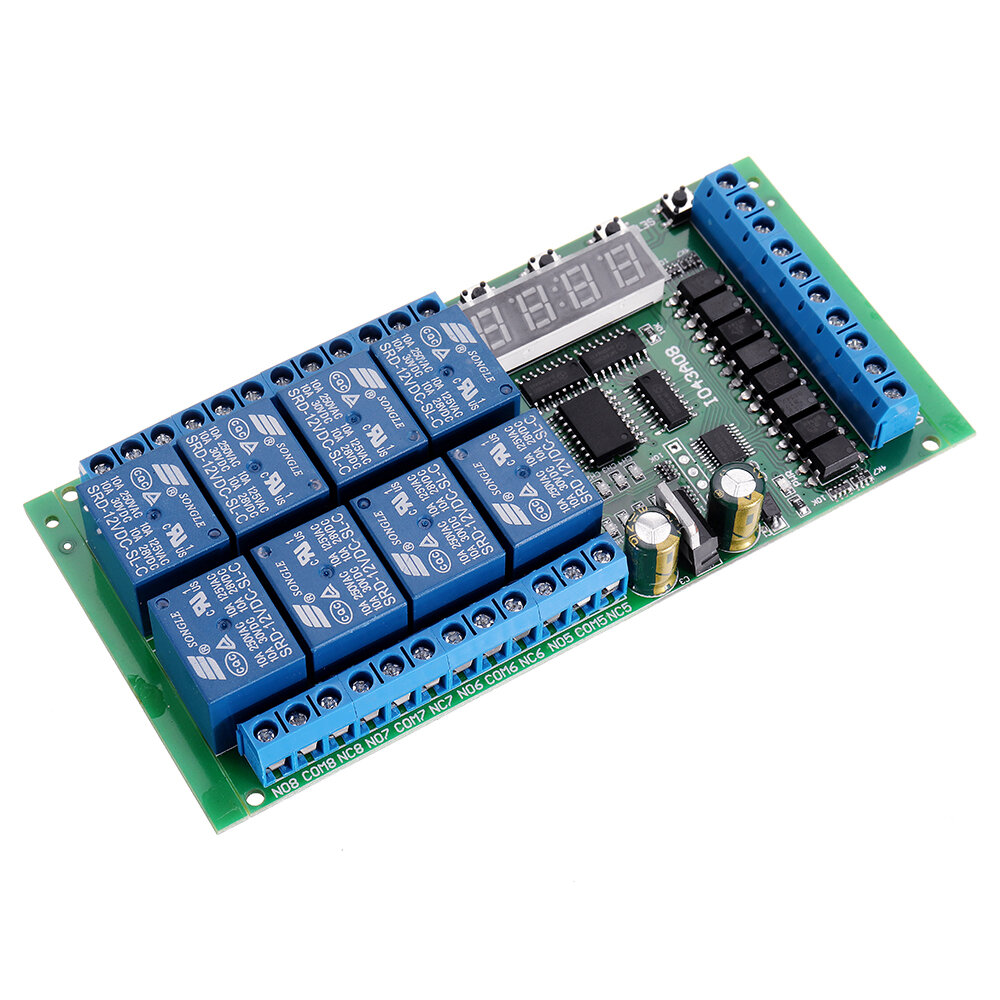

Elecbee DC 12V 8 Channel Multifunction Timer Delay Relay Board Timing Loop Interlock Bistable Time Switch

SKU: EB0046633

Favorites

Key Features

- Longest delay time : 00h:00m:01s - 99h:59m:59s

- 8 channels relay,each channel independently triggered independent delay, do not interfere with each other.

- 6 kinds of functional modules, each functional module has three sub-modes (no cycle, 2-99 cycle, always cycle).

- Input optical isolation.

- Power anti-reverse diode.

- High Q value SMD electrolytic capacitors.

- Parameter power-down save

Specifications:

Operating voltage: DC 12V

Operating Current :

Standby current (power-saving status) 7mA, Standby current 48mA ,1 relay open 75mA, 2 relays open 102mA, 3 relays open 129mA, 4 relays open 160mA, 4 relays open 160mA,5 relays open 182mA, 6 relays open 207mA, 7 relays open 253mA, 8 relays open 258mA.

Size: 120x62x20 mm

Weight : 128g

Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A

Typical Applications:

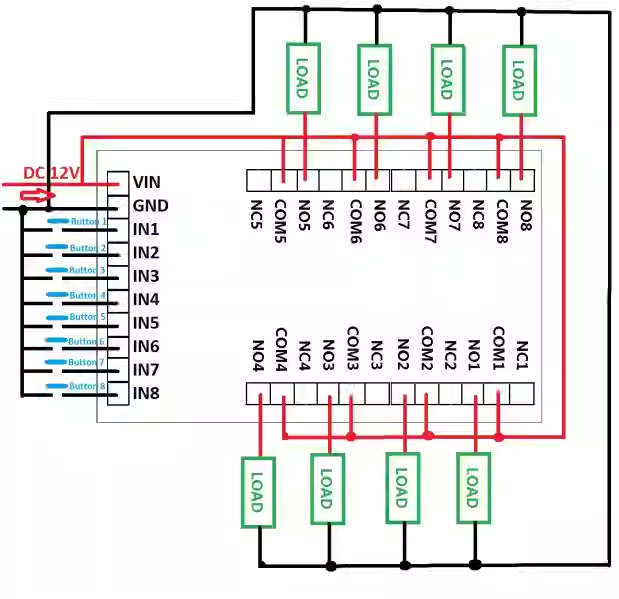

1. DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, toy car and

other DC 12V equipment.

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

FF0000

Show Similar Products >

Description

>>>Manual: Click here to open<<<

Package includes:

1 x DC 12V 8 Channel Multifunction Timer Delay Relay Board

DC-12V-8-Channel-Multifunction-Timer-Delay-Relay-Board-Timing-Loop-Interlock-Self-locking-Momentary--1652311
