Main Technical Indicators:
1. Working Voltage: DC12V
2. Static Working Current: ≤ 6mA
3. Working Temperature: -40°C 80°C
4. Receive Sensitivity: ≥-105dBm
5. Working Frequency: 433MHz
6. Output voltage: AC, DC optional
7. Output current: ≤ 3A

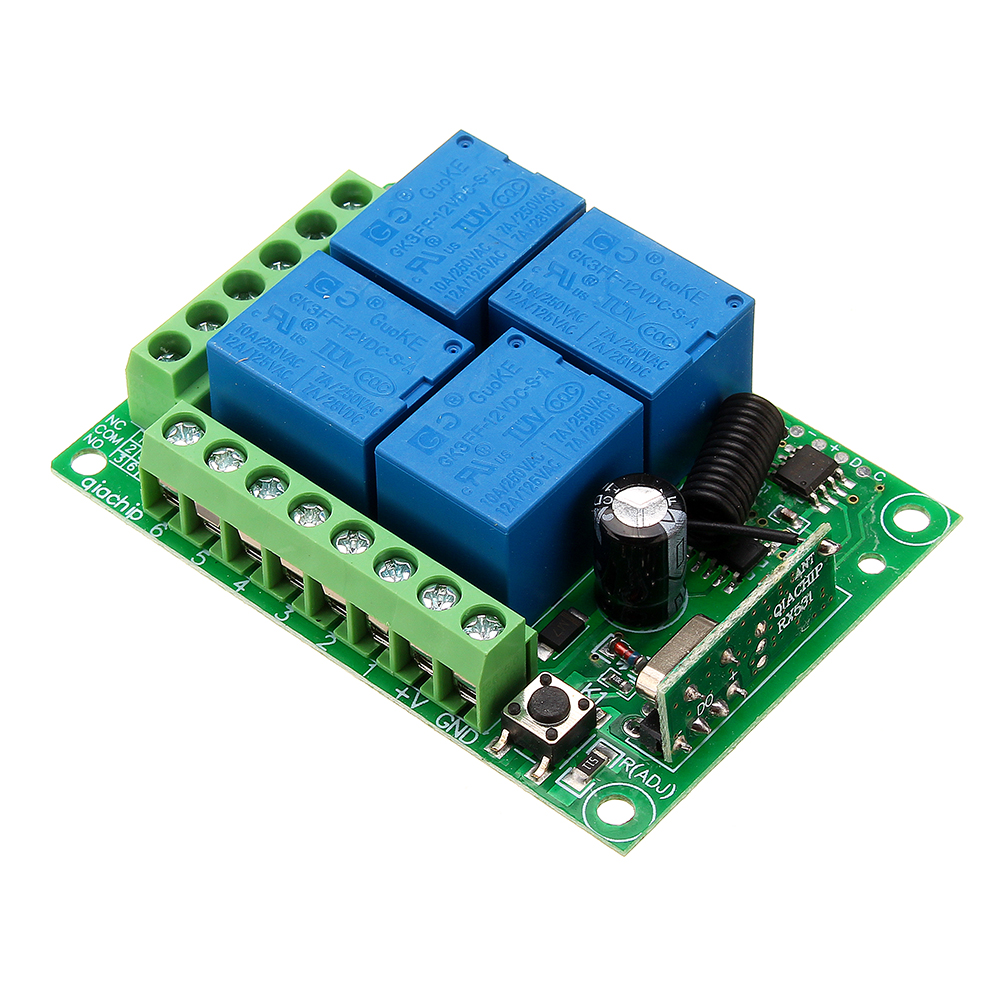

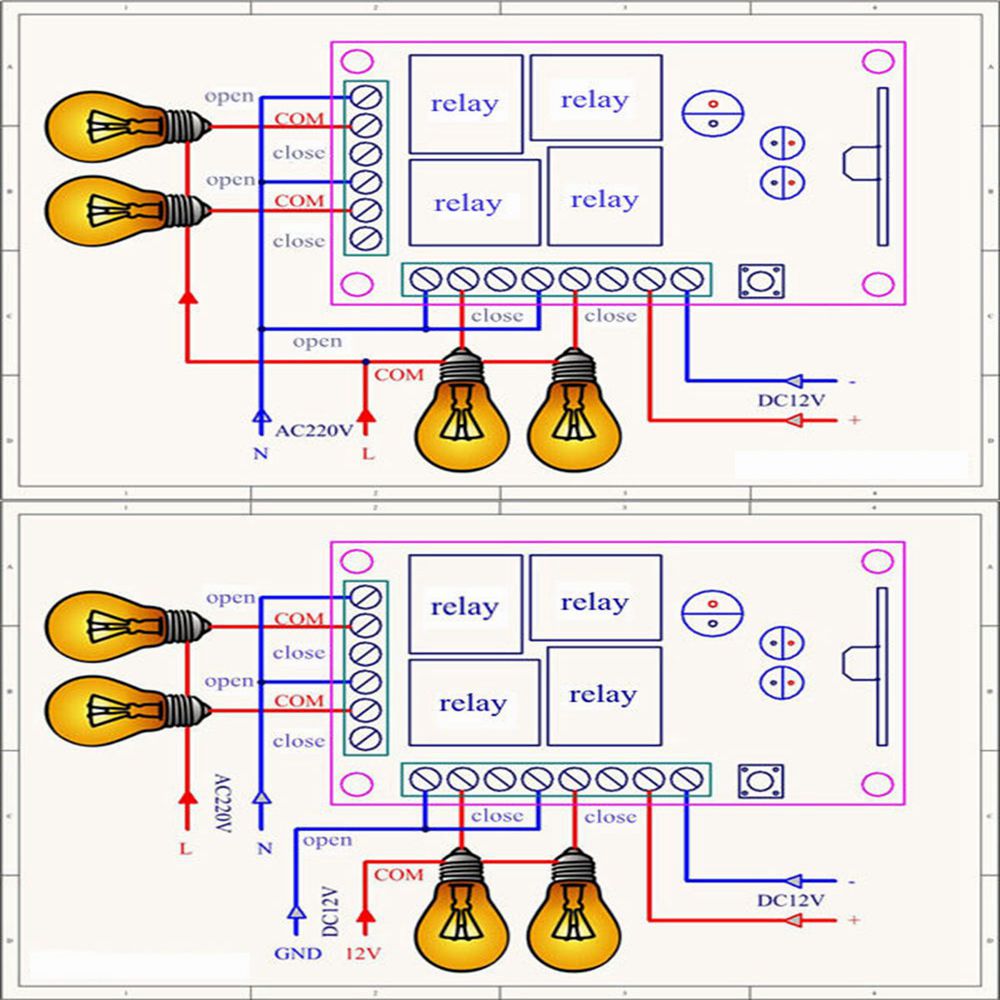

Receive Terminal Description:
V-power "positive" input
GND—power supply “negative” input
1-KC1 relay "normally closed" end
2—KC1 relay” public “end”
3-KC1 relay "Normally open" end
4-KC3 relay "normally closed" end
5-KC3 relay "public" end
6-KC3 relay "Normally open" end
7-KC2 relay "normally closed" end
8-KC2 relay "public" end
9-KC2 relay "Normally open" end
10-KC4 relay "normally closed" end
11-KC4 relay "public" end
12-KC4 relay "Normally open" end
Instructions:
1. Jog function: Press the control board code button once, the LED indicator flashes once, wait for the LED indicator to light up, press the remote control button that needs to be coded, and the control panel LED indicator flashes 3 times continuously. The code is successful.
2. Self-locking function: press the control board code button twice in succession, the LED indicator flashes 2 times, and when the LED indicator lights up, press the remote control button that needs to be coded, and the control panel LED indicator flashes 3 times continuously. The code is successful.
3. Interlock function: press the control board code button 3 times in succession, the LED indicator flashes 3 times, wait for the remote control button of the code to be pressed after the LED indicator lights up, the control panel LED indicator flashes 3 times continuously The code is successful.
4. Two-way jog and two-way self-locking: press the control board code button 4 times in succession, the LED indicator flashes 4 times, and after the LED indicator lights up, press the remote control button that needs to be coded, the control panel LED The indicator flashes continuously for 3 times and the code is successful.
5. Two-way jog and two-way interlock: press the control board code button 5 times in succession, the LED indicator flashes 5 times, and after the LED indicator lights up, press the remote control button that needs to be coded, the control panel LED The indicator flashes continuously for 3 times and the code is successful.
6. Two-way self-locking and two-way interlocking: press the control board code button 6 times in succession, the LED indicator flashes 6 times, and after the LED indicator lights up, press the remote control button that needs to be coded, the control panel LED The indicator flashes continuously for 3 times and the code is successful.
7. Two-way interlock and two-way interlock: press the control board code button 7 times in succession, the LED indicator flashes 7 times, and after the LED indicator lights up, press the remote control button that needs to be coded, the control panel LED The indicator flashes continuously for 3 times and the code is successful.
8. Clear code function: press the control board code button 8 times in succession. The LED indicator flashes 8 times. At this time, the LED indicator will automatically flash 8 times continuously. The clear code is completed, and all the remote control key codes previously learned are cleared. .
Precautions:
1. Do not operate with power. Turn off the power to operate, and use it after the test is confirmed to be correct.
2. When the voltage of the remote control is insufficient, please change the battery in time (the remote control distance becomes closer when the remote control battery voltage is insufficient).
3. When using wireless electronic products, care should be taken to avoid metal masks, large electronic devices, electromagnetic fields, etc., which have strong interference sources, to avoid remote control and short receiving distance or to work normally.
4. Do not use this electronic product abnormally. Abnormal use will reduce product performance and longevity. In severe cases, damage to the product will also pose a safety hazard.

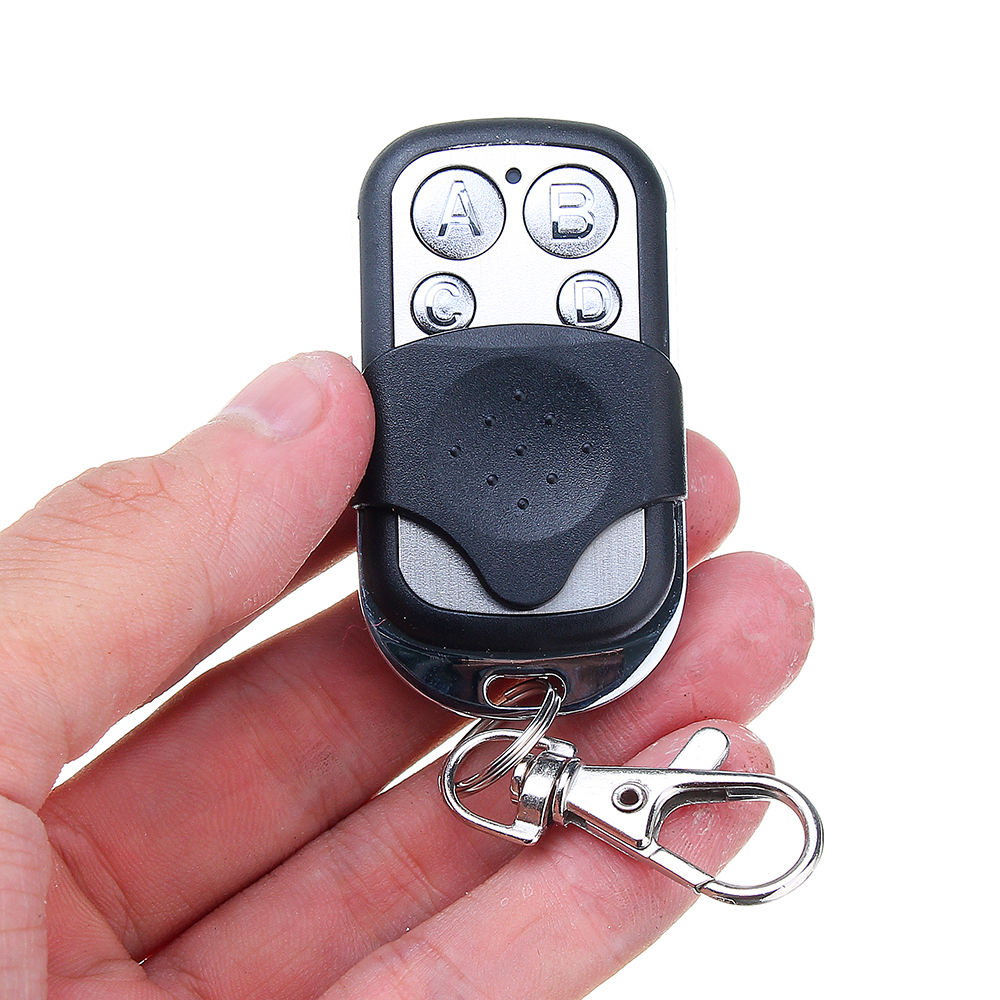

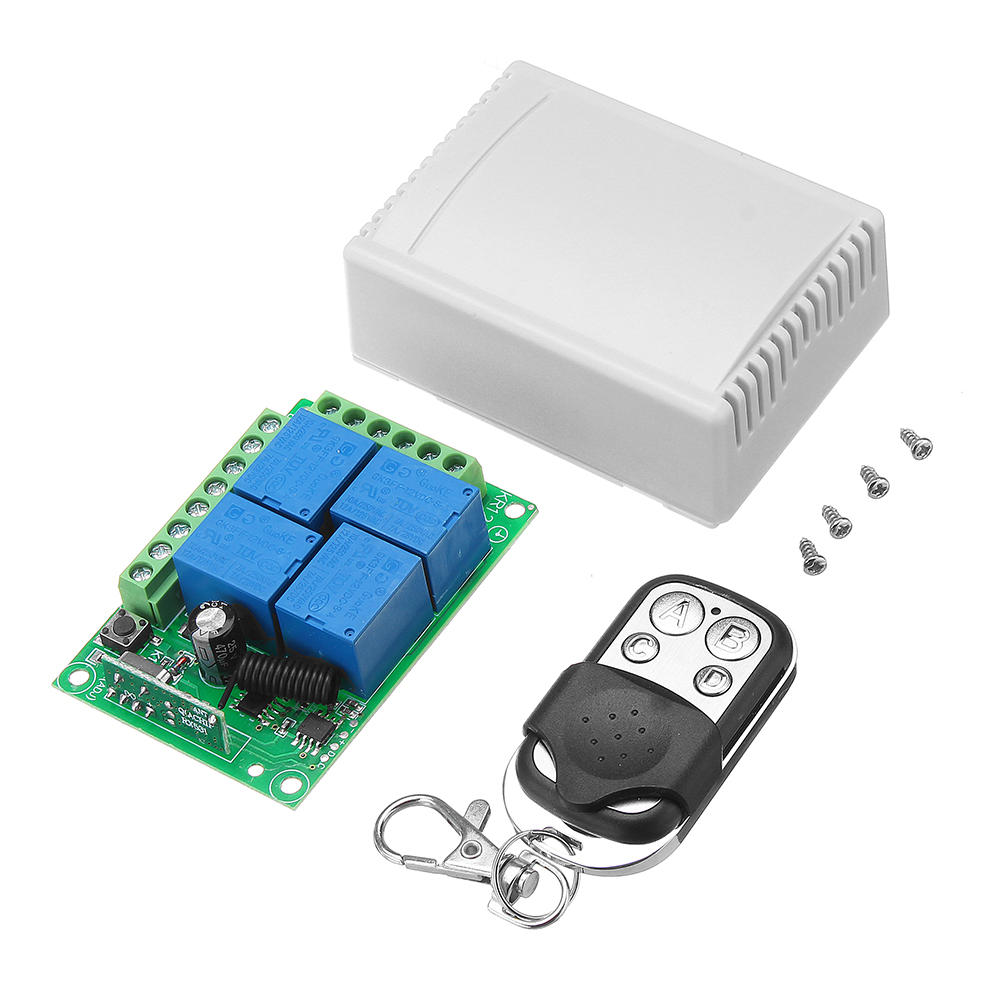

1 x 4CH Channel Wireless Learning Control Relay
