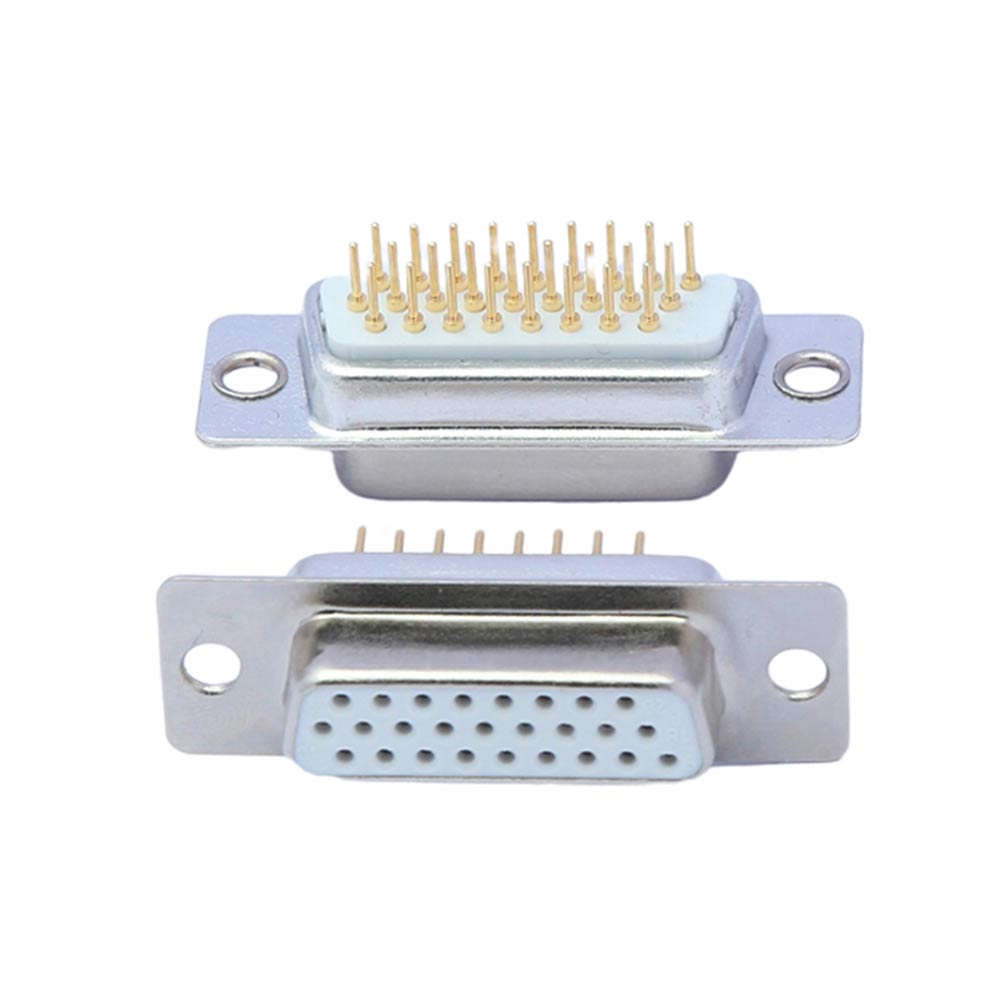

Elecbee DB 26Pin Female Straight Through Hole Gold Plated Machine pin
SKU: EB-607-0342-V
Favorites
Key Features
Features:
- D-SUB ,26Pin,Female,Straight,Through Hole,,Gold Plated,Machine pin,Single Hole
- D-Sub connectors are worldwide known as standardized V/Cinterfaces for several applications
- lndirect mating system lnternational approvals UL & CSA
- 3 different connector types available: vertical,angled and cable connectors
- Number of Pins：A=15 Pin , B=25 Pin , C=37 Pin , D=50 Pin , E=9 Pin
Applications：
- Commercial equipment
- Electronic office system
- Data communication
- Medical equipment
- Mobile communication
- Consumer electronics
Show More
Specifications
Attribute
Value
Search
Connector Style
D-Sub
Contact Function
Signal
Number of Rows
3
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Straight DIP
Contact Type
Female Pin
Number of Positions
26 Pin
Contact Finish
Gold Plated
Insulation Color
White
Contact Processing Technic
Machined
Description
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
