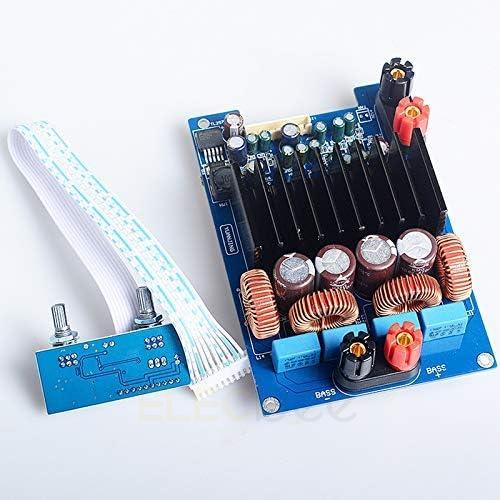

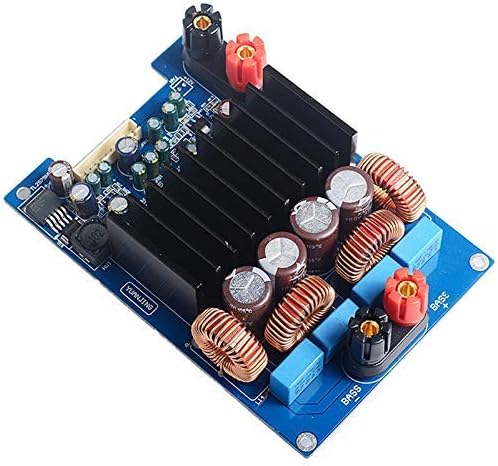

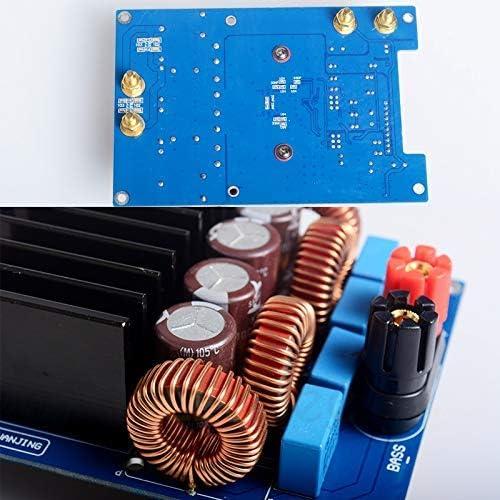

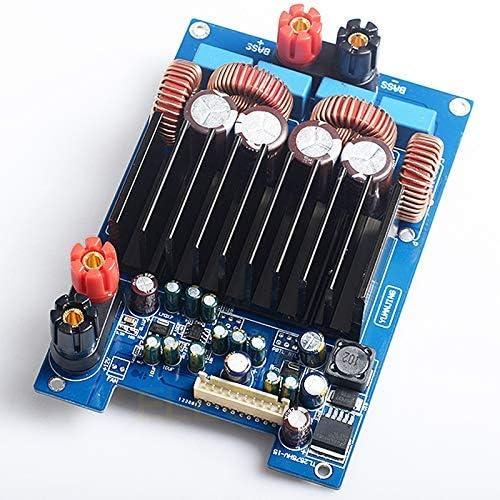

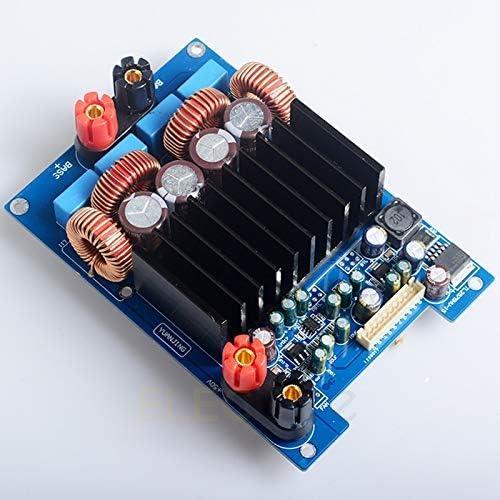

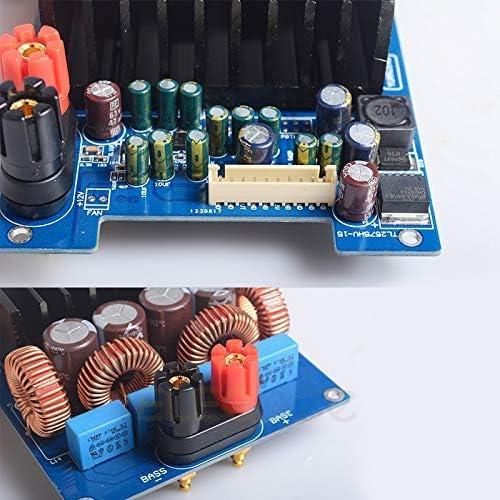

Elecbee Dac Amp Digital Audio DAC Subwoofer Amplifier Board: 600W Class D Power Amplifier Module with OPA1632DR, TAS5630 TL072 - DC48V

SKU: EB0051739

Favorites

Key Features

-Using original TAS5630, OPA1632DR, TL072

-Main electrolytic capacitors with three battalions brand, capacity 470UF / 100V * 4, to ensure strong support for a steady stream of power.

-Resistance selection Rings metal resistance, the main circuit employs a precision of ± 1% metal film resistors rings, ensure the machine a good signal to noise ratio.

-Using fully shielded high-current inductors, to ensure crisp and powerful sound.

-1.6mm thick sheet using double-sided PCB, 2.0 oz copper thickness, HASL whole process to ensure that the size of the current through the good performance. PCB-class quality.

Parameter:

Working method: class D

Quiescent current: 65mA

Working efficiency: 88%

Output: 600W/4ohm 10% THD

Frequancy response: 20Hz-20KHz

Dynamic range: >100 dB

S/D: 100dB(A-Weighted)

Working votlage: DC48V

PCB size: (L*W)14.00*9.50cm/5.51"*3.74"

Potentionmeter( left to right): 1. subwoofer frequency 2. Volume

Distance between two potentionmeter: 3.4cm

Wire length: 30cm

Weight: 440g

Specifications

Show Similar Products >

Attribute

Value

Model

OPA1632DR

Show Similar Products >

Description

Description:

OPA1632 is a fully differential amplifier used to drive high-performance audio analog-to-digital conversions (ADCs).

The highest audio quality, it provides very low noise and output drivers, this application is optimized for the characteristics of OPA1632 Excellent gain bandwidth of 180MHz 50V/μs and very fast conversion rate, producing very low distortion 0.000022%. Very low input noise of 1.3nV/√Hz further ensures the maximum signal-to-noise ratio and dynamic range. Fully differential The flexibility of the structure can easily achieve single-ended full differential output conversion. Differential output reduces even harmonics and reduces common mode noise interference.

OPA1632 provides excellent performance ADCs high-performance audio PCM1804. The driver, such as the shutdown function is also enhanced when used TI's TAS5630 is a Class D amplifier with integrated analog input 300W stereo (total power 600W), which can provide up to 300W stereo from a single power supply 50V to 4 ohm speakers, with the traditional class AB amplifier. Performance (<0.03% THD) and power efficiency of Class D amplifier. Its SNR is greater than 100dB, PSRR is 80dB, the efficiency of the power stage is as high as 88%.

Package includes:

1 x Power Amplifier Board

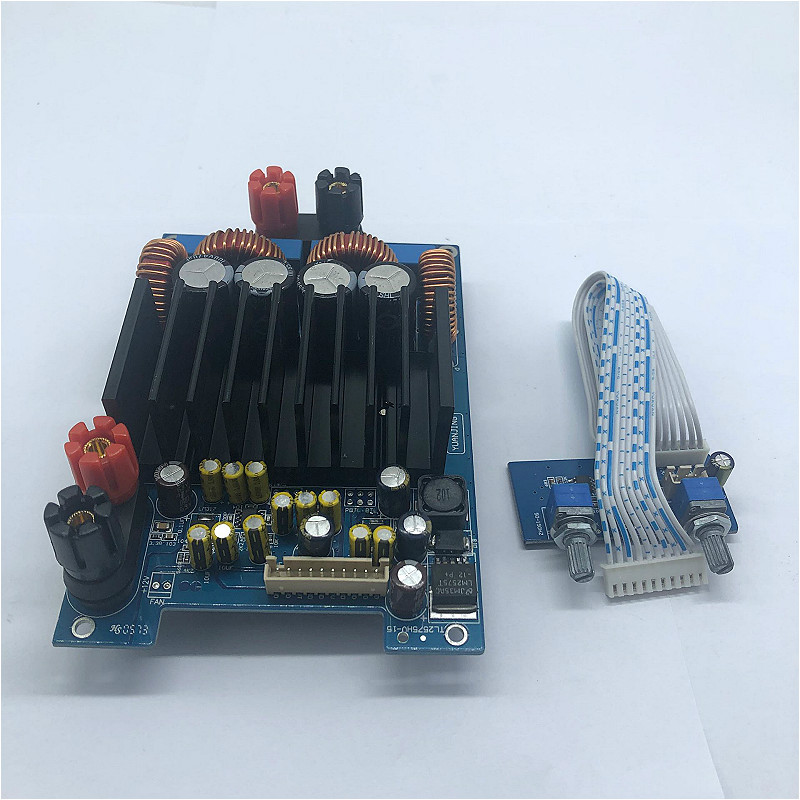

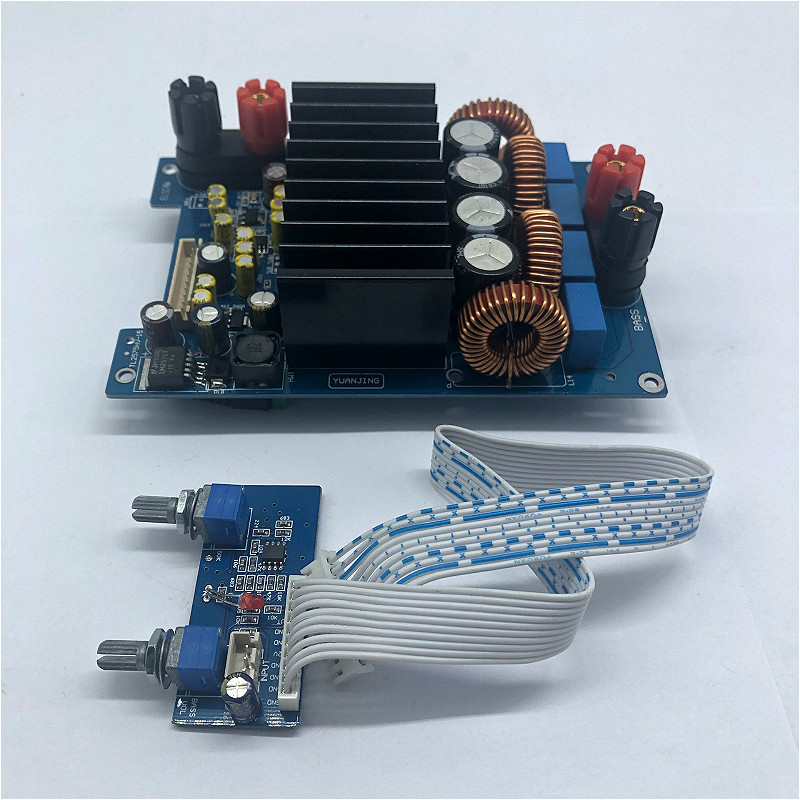

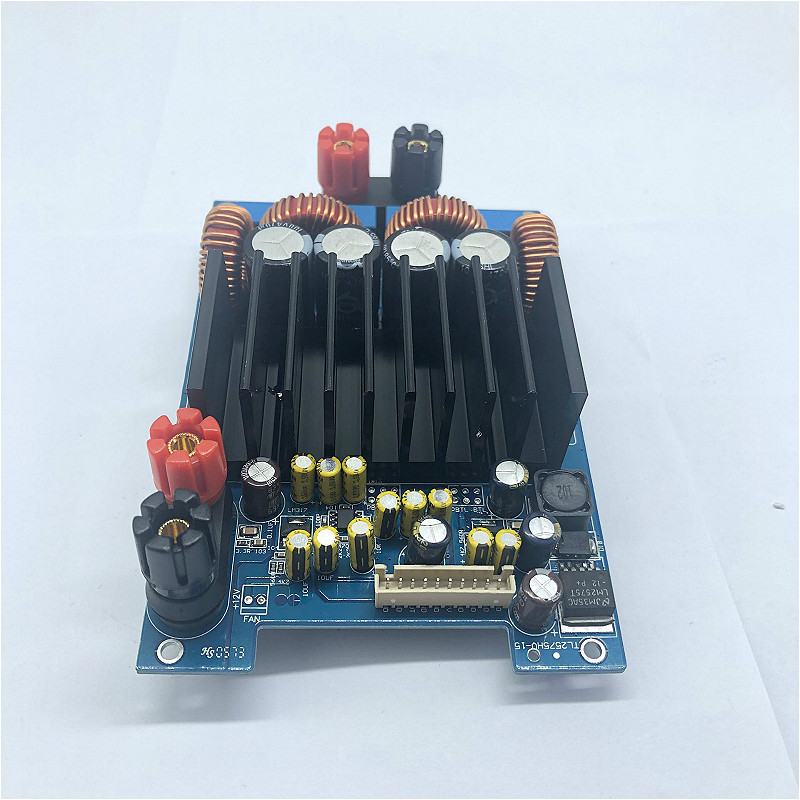

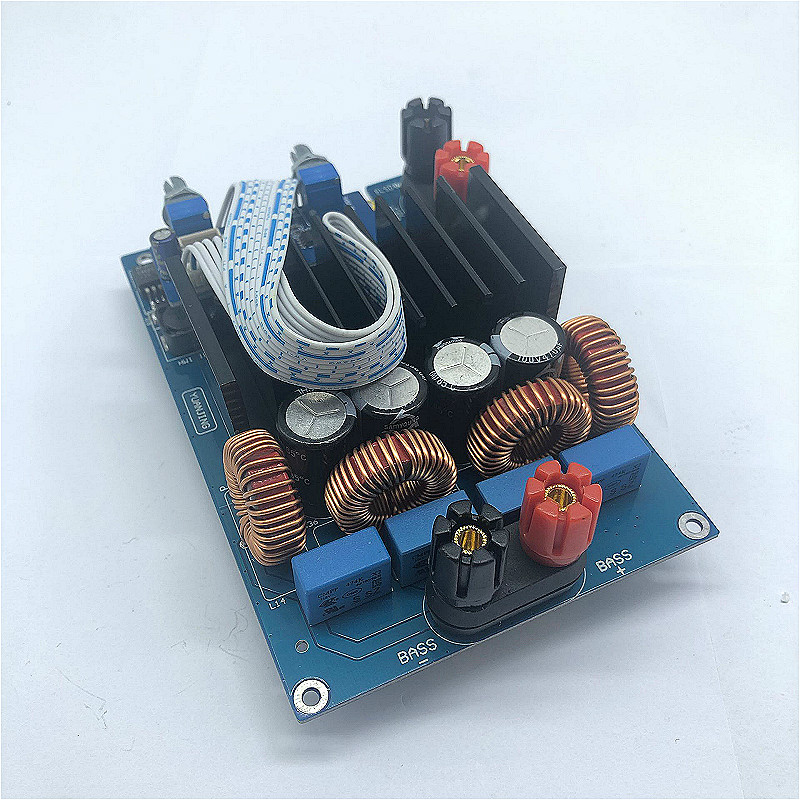

TAS5630-600W-4ohm-Class-D-Subwoofer-Power-Amplifier-Board-DC48V-1754599
