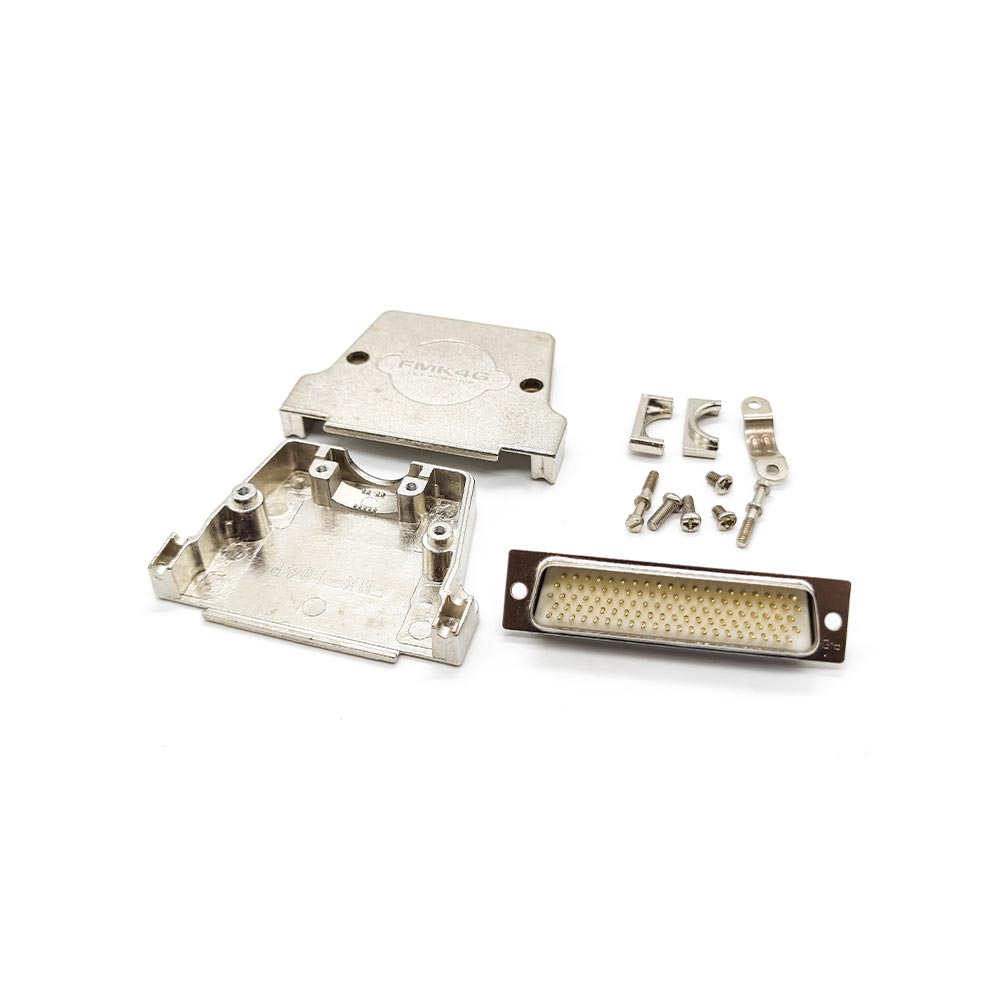

Elecbee D-sub 104Pin Solder Type Male Connector Machine Pins Straight with Metal shell

SKU: EB-607-0355-V
Favorites
Key Features

Features:

  • D-sub, 104Pin, Solder,  Male, Connector ,Machine Pins ,Straight,Metal shell
  • D-Sub connectors are worldwide known as standardized V/Cinterfaces for several applications
  • lndirect mating system lnternational approvals UL & CSA
  • 3 different connector types available: vertical,angled and cable connectors
  • Number of Pins:A=15 Pin , B=25 Pin , C=37 Pin , D=50 Pin , E=9 Pin



Applications:

  • Commercial equipment
  • Electronic office system
  • Data communication
  • Medical equipment
  • Mobile communication
  • Consumer electronics
Show More
Attribute
Value
Connector Style
D-Sub
Contact Function
Signal
Number of Rows
5
Number of Ports
1
Mounting Type
Cable Type
Mounting Feature
Screwnut
Termination
Solder
Contact Type
Male Pin
Number of Positions
104 Pin
Rated Current
5A
Contact Finish
Gold Plated
Insulation Color
White
Contact Processing Technic
Machined
