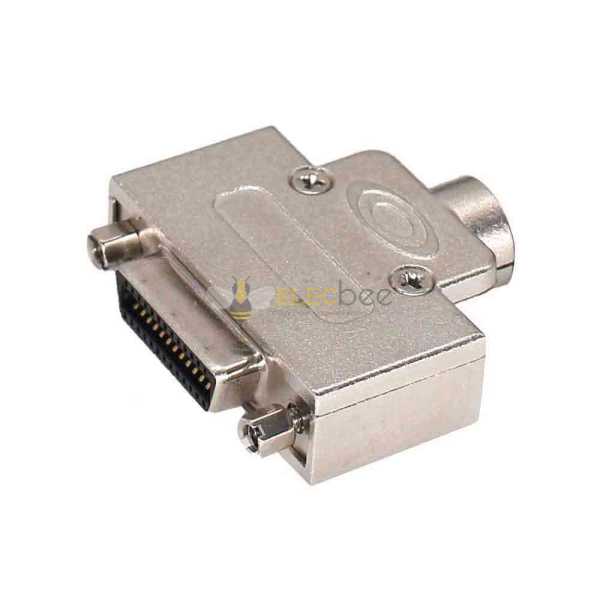

Elecbee CameraLink Connector Plug - Weldable MDR Female Plug Connector - Compatible with 12226-1150-00FR
SKU: EB-042-0043-H
Favorites
Key Features
Camera Link Compatibility: This 26 pin Camera Link connector plug is designed for compatibility with 12226-1150-00FR interfaces providing a practical replacement solution for compatible industrial imaging equipment
Weldable Connector Design: The solderable termination design supports secure wire attachment and convenient custom cable assembly for machine vision cameras image acquisition devices and Camera Link connection systems
Durable Metal Housing: The robust metal shell provides reliable mechanical protection for the internal contacts helping the connector withstand installation handling and long term use in industrial environments
Industrial Camera Applications: Suitable for high speed cameras CCTV surveillance systems machine vision equipment automated inspection devices and factory imaging applications with every connector 100 percent tested for functionality
Show More
In-Stock
Qty.
1
Unit Price
$ 14.03$ 16.50
Ext. Price
$ 14.03$ 16.50
$ 14.03$ 16.50
Specifications
Attribute
Value
Search
Connector Type
Jack
Connector Style
D-Sub
Contact Function
Signal, Power
Number of Rows
1
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Female Pin
Shell Finish
Nickel Plated
Description
Elecbee Camera Link MDR 26P Female Connector Cable Assembly
The Elecbee Camera Link MDR 26P female connector cable assembly is designed for high-speed camera systems and industrial vision applications requiring reliable data transmission. Featuring MDR/SDR 26-pin connectors, shielded cable construction, and compatibility with Camera Link interface standards, it provides stable signal connectivity for machine vision and imaging equipment.
Technical Specifications
- Connector Type: MDR 26P female connector on both ends (MDR/SDR 26-pin)
- Compatible Part Number: 12226-1150-00FR
- Interface Standard: Camera Link high-speed camera interface
- Conductor Material: Tinned copper contacts
- Shielding: Aluminum foil wrap plus tinned copper braid shielding
- Cable Structure: Twisted wire construction with PVC outer insulation
- Operating Temperature: -35°C to 85°C
Industrial Applications
This Camera Link cable assembly is suitable for industrial cameras, machine vision systems, automated inspection equipment, image processing platforms, and high-speed camera integration projects. The MDR connector design supports secure connections in industrial environments where signal integrity and mechanical reliability are required.
Signal Integrity and Reliability
The shielded cable structure with aluminum foil and tinned copper braid helps reduce electromagnetic interference and maintain stable signal transmission. Overmolded connectors provide enhanced mechanical protection and durability for repeated installation and industrial operation.
Compatibility Information
Compatible with Camera Link based imaging systems using MDR 26-pin connectors, including industrial cameras and machine vision hardware requiring standard Camera Link cable assemblies. Suitable for engineering development, equipment replacement, and industrial automation integration.
