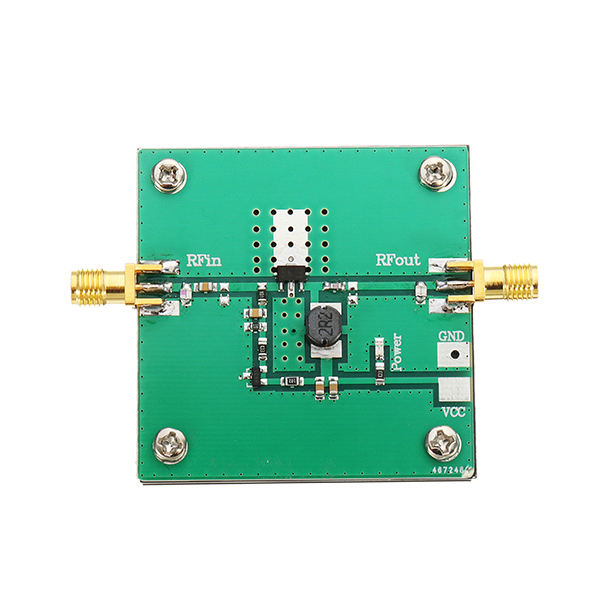

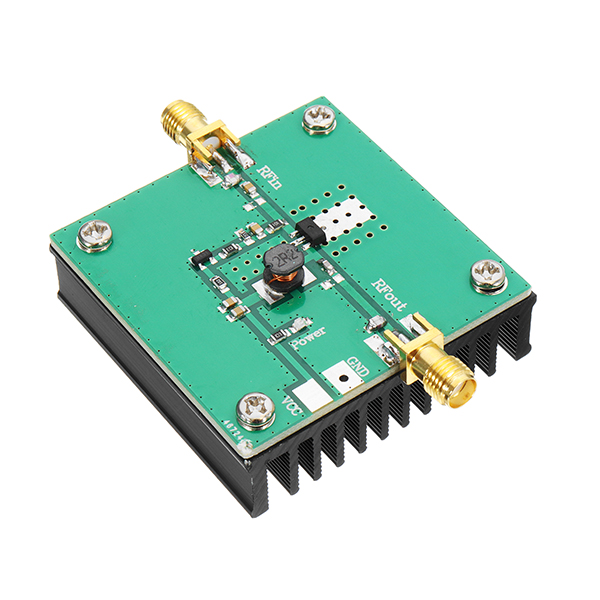

Elecbee RF Broadband Power Amplifier, 88-108MHz FM Transmitter Module, 5W Output at 7.2V with Heatsink, SMA Female Connector
SKU: 1284216
Favorites
Key Features
High Conversion Efficiency: Delivers 5.0W output at 7.2V from a 0.1W input, ideal for FM transmission research and signal boosting.

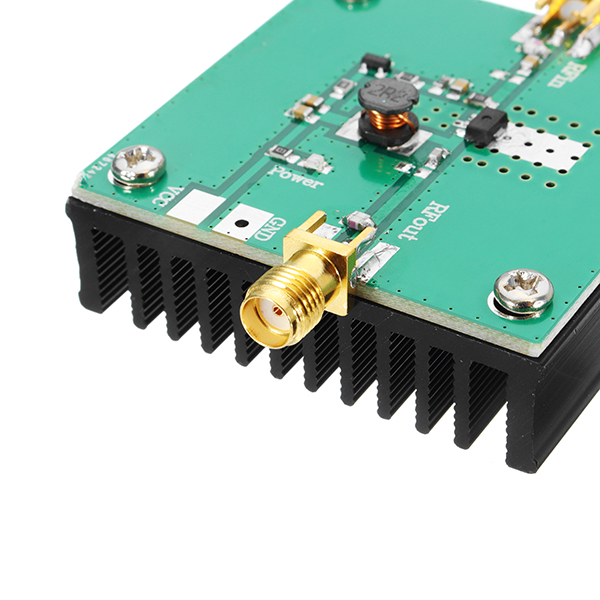

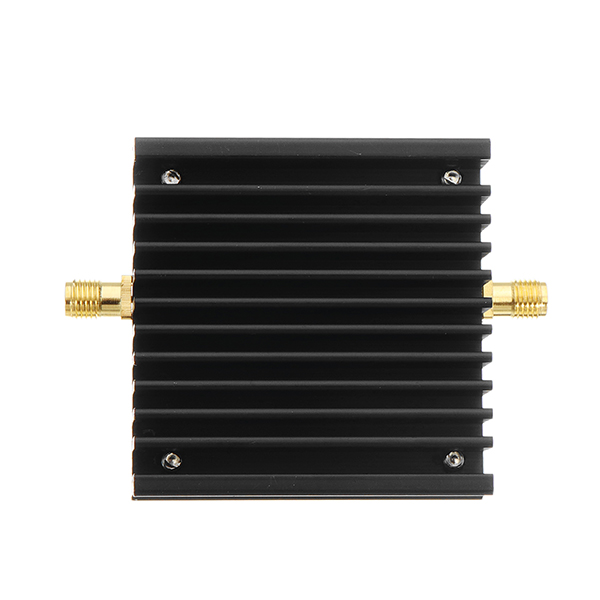

Effective Thermal Management: Features an integrated black-anodized heatsink to ensure long-term stable operation and heat dissipation.
Wide Voltage Compatibility: Operates efficiently between 5V-7.2V DC, providing flexible power levels from 2.5W to 5.0W.
Standard RF Interface: Equipped with a standard SMA-K (Female) connector for seamless integration with most RF equipment and antennas.

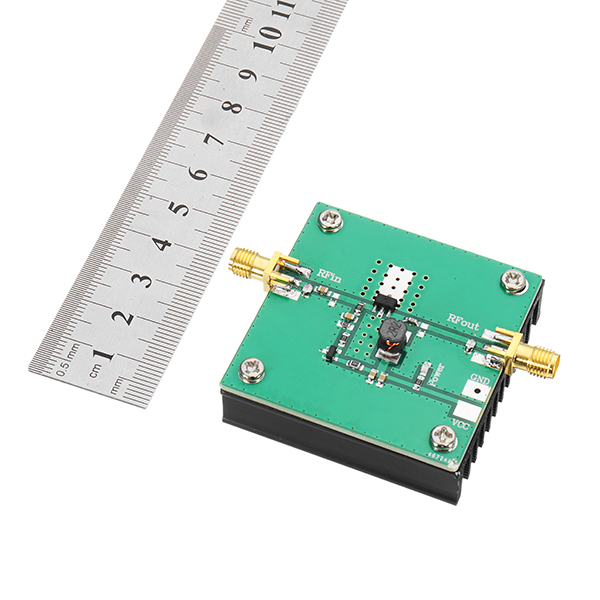

Ultra-Compact Design: Measuring only 50x50x15mm and weighing 55g, this module is perfect for portable setups and space-constrained projects.
Show More
In-Stock
Qty.
1
Unit Price
$ 15.54
Ext. Price
$ 15.54
$ 15.54
Specifications
Attribute
Value
Search
Model
DESCRIPTIONIMAGE0
Description
For researchers and enthusiasts working with FM transmission (88-108MHz), maintaining a stable signal without overheating is a common challenge. This Elecbee RF Broadband Power Amplifier solves this by providing high-efficiency amplification in a compact form factor. It is specifically engineered for learning and research applications where consistent power output and reliability are essential.
The module is designed for precision and durability. Key technical specifications include:
- Frequency Range: 88-108MHz (FM Band)
- Output Power: 2.5W (5.0V) to 5.0W (7.2V)
- Input Power: 0.01W (10dBm)
- Current Consumption: 1-2A
- Connector Type: SMA-K Female
Detailed technical product information: To ensure the longevity of the amplification tube, this unit includes a pre-installed heatsink. For safe operation, do not use the device under no-load or mismatched impedance conditions, as this can cause rapid heat accumulation. It is highly recommended to stay within the 5.0V-7.2V DC range to maintain optimal RF stability and device reliability. Always ensure a common grounding point and connect the RF interface before powering on to prevent electrostatic damage.
Package included:
1 x FM 100MHz RF Power Amplifier
