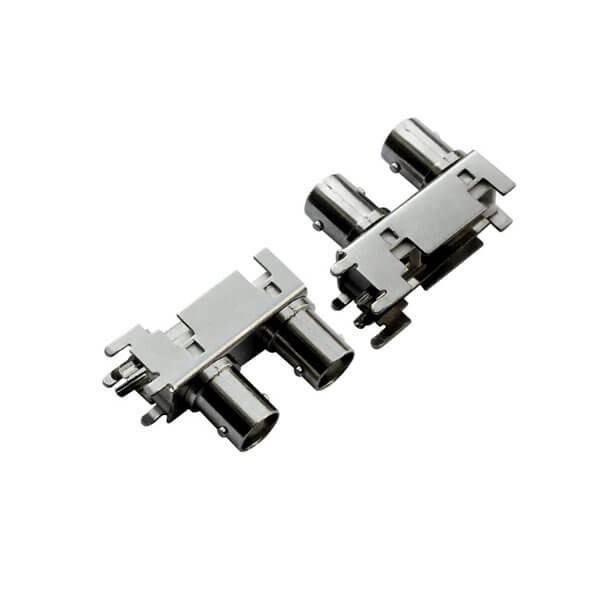

Elecbee BNC Connector CCTV Camera Jack Angled Dual for PCB 20Pcs
SKU: 20XEB-001-0053
Favorites
Key Features
- Pcb Mount, Jack/female, Angled/90°, 50Ω, dual;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of BNC Connectors:
Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
2
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
50/75 Ohms
Frequency Max
4 GHz
Connector Series
BNC
Color
Silver
Fastening Type
Bayonet
Orientation
Right Angled
Shell Material
Zinc Alloy
Packing
Individual Packaging
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PTFE
Cable Diameter
2.14mm
