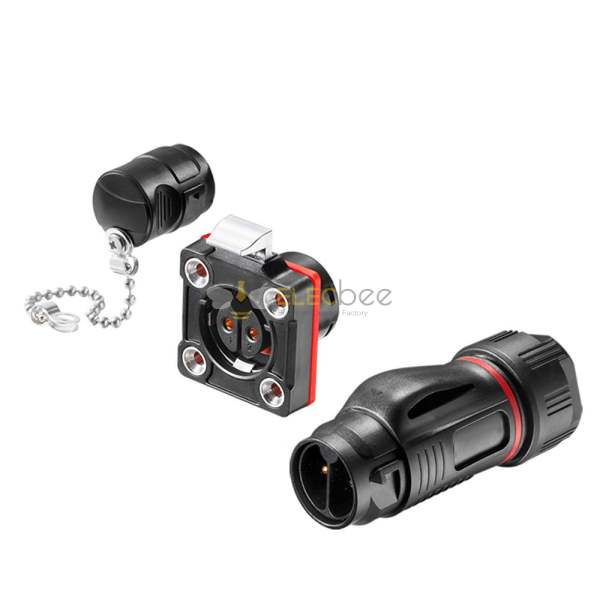

Elecbee Bd20 Plastic Shell Waterproof Aviation Connector Quick Plug Power Signal 2-Core Male Plug And Female Socket Industrial Equipment Connector
SKU: EB-045-0025
Favorites
Key Features
- This BD20 2-pin plug-and-receptacle connector set provides a compact circular interface for reliable power or signal connection in industrial equipment.
- Rated for 20A at 300VAC, it uses solder cup termination for 14–12 AWG conductors and is configured for plug and panel-mount receptacle arrangement.
- The engineering-plastic shell, engineering-plastic insulation, and copper alloy contacts with a gold-plated finish provide a durable electrical interface, while the bayonet fastening system helps maintain a secure connection.
- With an IP67 ingress-protection rating and an operating temperature range of -40°C to +85°C, this waterproof circular connector is suitable for industrial equipment, outdoor electronics, and detachable power or signal connections.
Show More
In-Stock
Qty.
1
Unit Price
$ 11.04$ 12.99
Ext. Price
$ 11.04$ 12.99
$ 11.04$ 12.99
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Male，Female Pin
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
20A
Rated Voltage
300VAC
Connector Series
BD24
Color
Black
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Engineering Plastics
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
14AWG~12AWG
Description
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
S
Perfect for my truck's trailer lighting system. The IP67 rating really holds up in rain and dust. Easy one-hand connection is a game-changer.
A
Solid build and the gold-plated pins show no corrosion after two months outside. Plug fits snug, though I wish the female socket was a bit deeper.
R
Used on my tractor PTO setup—works flawlessly. Love the compact size and how quickly I can disconnect for maintenance.
P
Does the job, but took some force to plug in at first. Once seated, it’s secure and weatherproof as advertised.
J
Great for industrial control panels. The engineering plastic shell feels durable and resists UV well. Will buy again.
