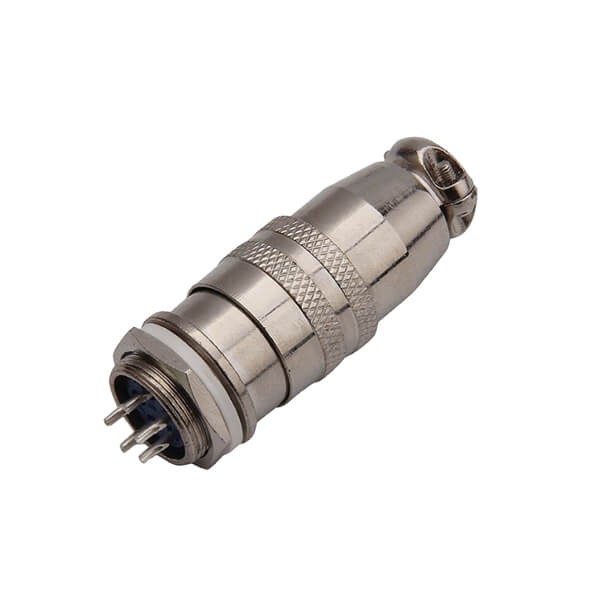

Elecbee Aviation Connector Diam 16mm XS16 5pin Push-Pull Circular Quick Connector

SKU: EB-408-7025
Favorites

Key Features

Quick Connection: This XS16 5 pin straight circular connector set uses a push-pull ball lock for fast mating and release and includes a plug and receptacle.
Contact Finish: Gold-plated copper alloy contacts provide good conductivity and resist corrosion and oxidation.
Compact Installation: The compact, lightweight design supports rear nut bulkhead mounting with solder cup termination. Rated for 5A and 250V. The receptacle is sealed.
Applications: This circular instrumentation connector supports communication, video, navigation, marine, rail and electromechanical equipment wiring.

Show More

Specifications

Number of Positions:
2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin9 Pin
In-Stock
Qty.
1
Unit Price
$ 3.42
Ext. Price
$ 3.42
$ 3.42
Qty.
Unit Price
Ext. Price
10+
$3.25
$ 32.50
100+
$2.91
$ 291.00
Inquiry for more quantity?
Specifications
Show Similar Products >
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder Cup
Contact Type
Male，Female Pin
Shell Finish
Nickel Plated
Number of Positions
5 Pin
Operating Temperature
-20℃~+85℃
Rated Current
5A
Rated Voltage
250V
Connector Series
XS16
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Bakelite
Insulation Color
Blue
Show Similar Products >
Description
XS16 · MOUNTING OPTIONS

Choose the mount.
Then match the circuit.

A metal circular connector family with inline, round and square mounting forms. Keep the mounting dimensions and contact arrangement together when choosing your connection.

Push-pull ball lockSolder terminationXS16
XS16 inline, round snap-in, square snap-in and square threaded examples
Top: inline / round snap-in. Bottom: square snap-in / square threaded.
Four mounting formsMaterials & structureDimensionsContact optionsSpecifications

Four forms for different installation positions

01

Inline type

Cable-to-cable form with a rear cable clamp at each end of the illustrated assembly.

02

Round snap-in type

Round panel-side form with a retaining nut, as illustrated in the dimensional reference.

03

Square snap-in type

Square flange with four fixing holes. Match the panel opening and hole spacing.

04

Square threaded type

Square-flange form identified separately in the product reference. Confirm the mating and fixing details for the chosen variant.

The material stack, from shell to contact

01

Nickel-plated zinc alloy

Metal shell and mating structure.

02

Silver-plated copper

Copper contacts with silver plating for the specified series construction.

03

Bakelite insulation

Insulating insert surrounding the contacts.

On the cable-side bodies, two retaining screws secure the rear cable clamp at the inlet.

Finish and contact details can vary with the supplied version; verify the selected part where the illustrated contacts differ from the series table.

Make room for the complete assembly

The reference below includes panel/flange views, cable-side dimensions and the inline assembly. Keep the drawing context when checking diameters, threads and clearance.

XS16 original dimension views for mounting and inline assemblyEnlarge drawing

Dimensions and contact patterns apply to the illustrated configurations. Match the exact part, mounting style and mating orientation before making the panel or wiring the connector.

Keep the contact pattern with its code

XS16-2XS16-3XS16-4XS16-5XS16-6XS16-7XS16-9
XS16-2, 3, 4, 5, 6, 7 and 9 contact arrangements viewed from the pin sideEnlarge drawing

The diagram is a pin-side view. For an 8-contact item, confirm its own arrangement; no 8-contact drawing is shown here. Standard and reverse contact versions require the correct mating orientation.

Connection and electrical reference

ItemReference
Panel-cutout reference16 mm
ConnectionPush-pull ball lock
TerminationSolder
Current rating5 A
Withstand voltage500 V AC / 1 min
Insulation resistance> 2000 MΩ

Withstand voltage is a test condition, not a continuous operating-voltage rating. Confirm the operating rating and contact-resistance specification for the selected part.

Complete the connection

01

Match the interface

Use the same series, contact count and compatible pin/socket arrangement on both halves.

02

Check the installation

Confirm panel thickness, opening, fixing method, cable diameter and clearance for the cable clamp.

03

Select the supplied part

Choose a plug, receptacle or matched set as listed for the selected item. Sealing and electrical ratings must be checked for that part.
