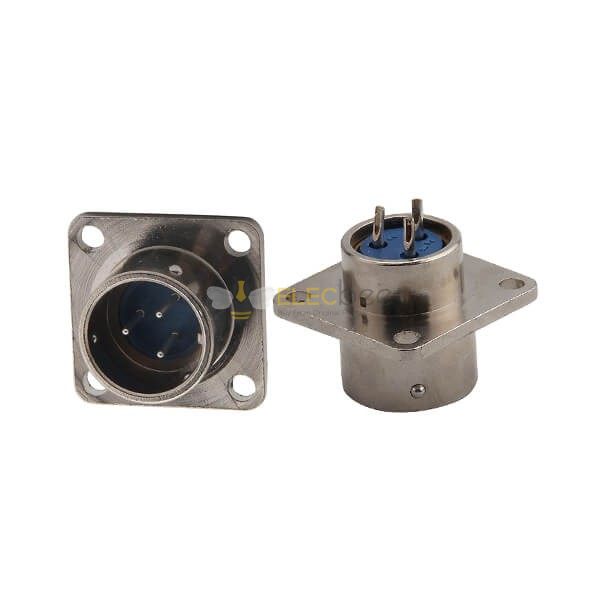

Elecbee XS16 3 Pin Male Contact Straight Circular Receptacle Push-Pull Ball Lock four hole flange mounting solder cup termination 5A 250V
SKU: EB-408-7009
Favorites
Key Features
Quick Connection: This XS16 3 pin male straight circular receptacle uses a push-pull ball lock for fast mating and release.
Contact Finish: Silver-plated copper alloy contacts provide conductive contact surfaces for stable electrical connections.
Compact Installation: The compact, lightweight design supports four hole flange mounting with solder cup termination. Rated for 5A and 250V. The receptacle is sealed.
Applications: This circular instrumentation connector supports communication, video, navigation, marine, rail and electromechanical equipment wiring.
Show More
Specifications
Number of Positions:
2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin9 PinIn-Stock
Qty.
1
Unit Price
$ 1.95
Ext. Price
$ 1.95
$ 1.95
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Male Pin
Shell Finish
Nickel Plated
Number of Positions
3 Pin
Operating Temperature
-20℃~+85℃
Rated Current
5A
Rated Voltage
250V
Connector Series
XS16
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Silver Plated
Insulating Materials
Bakelite
Insulation Color
Blue
Description
