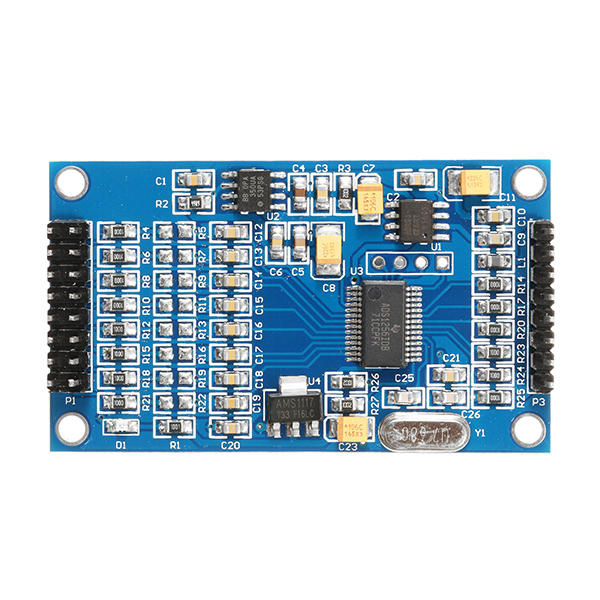

Elecbee ADS1256 24-Bit 8-Channel High-Precision ADC Module, 30ksps Data Acquisition Card with 2.5V Reference, SPI Interface for Arduino/STM32
SKU: EB0050739
Favorites
Key Features
- Ultra-High 24-Bit Resolution: Powered by the TI ADS1256IDB chip for professional-grade analog-to-digital conversion with exceptional detail.
- Precision Signal Integrity: Features an ultra-low non-linearity of ±0.0010% and an onboard 2.5V precision voltage reference for stable measurements.
- Versatile Input Modes: Fully configurable for 8-channel single-ended inputs or 4-channel differential inputs to suit diverse sensor requirements.
- High-Speed DAQ: Supports data output rates up to 30ksps, making it ideal for high-frequency data acquisition and industrial monitoring.
- Standard SPI Communication: Easily interfaces with microcontrollers like Arduino, STM32, and Raspberry Pi via high-speed SPI protocol.
Show More
Specifications
Attribute
Value
Search
Model
ADS1256
Description
Interface description:
5V, GND: 5V power input
SCLK, DIN, DOUT, CS: SPI communication Interface
DRDY: ADS1256data be ready output (Active low level)
PDWN: ADS1256 Sync / Turn off the power input (Active low level)
AIN0-AIN7: Analog voltage input, it can be configured as either 8 single-ended inputs or 4 differential inputs,
(The measured voltage should be shared with the module)
Precautions:
Because the voltage of ADS1256 is 5V, and The measured voltage should be 2V below the supply voltage,
so The module is only suitable for measuring analog voltages within 3V.
Testing Methods:
Module provides STC15W and STM32 microcontroller 8-channel serial display reference program and STC89C52 single-chip
4-channel 1602LCD display reference program, the STC89C52 Microcontroller + 1602 LCD LCD test method is as follows:
5V, GND connect to DC 5V power supply, SCLK, DIN, DOUT, DRDY, CS connect to Microcontroller P1.2, P1.3, P1.4, P1.5, P1.6 respectively,
AIN0, AIN1, AIN2, AIN3 connect to 2.5V, 2.5V, 2.5V,2.5V respectively (The measured voltage should be in common with the ADS1256),
then 1602 LCD will shows these four sets of voltage values, in which, the 1st ,2nd ,4th sets are single-ended input voltage value of
AIN0, AIN1, AIN3, and the 3rd set is the difference of AIN2-AIN3, the voltage values of these four sets are 2.5V, 2.5V, 0V, 2.5V.
5V, GND: 5V power input
SCLK, DIN, DOUT, CS: SPI communication Interface
DRDY: ADS1256data be ready output (Active low level)
PDWN: ADS1256 Sync / Turn off the power input (Active low level)
AIN0-AIN7: Analog voltage input, it can be configured as either 8 single-ended inputs or 4 differential inputs,
(The measured voltage should be shared with the module)
Precautions:
Because the voltage of ADS1256 is 5V, and The measured voltage should be 2V below the supply voltage,
so The module is only suitable for measuring analog voltages within 3V.
Testing Methods:
Module provides STC15W and STM32 microcontroller 8-channel serial display reference program and STC89C52 single-chip
4-channel 1602LCD display reference program, the STC89C52 Microcontroller + 1602 LCD LCD test method is as follows:
5V, GND connect to DC 5V power supply, SCLK, DIN, DOUT, DRDY, CS connect to Microcontroller P1.2, P1.3, P1.4, P1.5, P1.6 respectively,
AIN0, AIN1, AIN2, AIN3 connect to 2.5V, 2.5V, 2.5V,2.5V respectively (The measured voltage should be in common with the ADS1256),
then 1602 LCD will shows these four sets of voltage values, in which, the 1st ,2nd ,4th sets are single-ended input voltage value of
AIN0, AIN1, AIN3, and the 3rd set is the difference of AIN2-AIN3, the voltage values of these four sets are 2.5V, 2.5V, 0V, 2.5V.
