Elecbee ADMP401 MEMS Microphone Module Board for Arduino - products that work with official Arduino boards
SKU: EB0048872
Favorites
Key Features
xa0

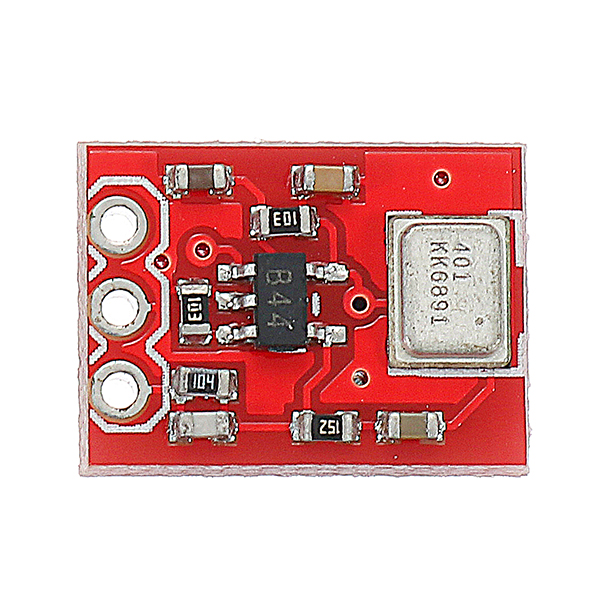

This tiny breakout board features the ADMP401 MEMs microphone. One of the key advantages to this breakout and microphone is the bottom ported input. This means the microphone's input can fit flush against the enclosure of your project. Plus you will not have to deal with trying to solder the microphone's wacky footprint.

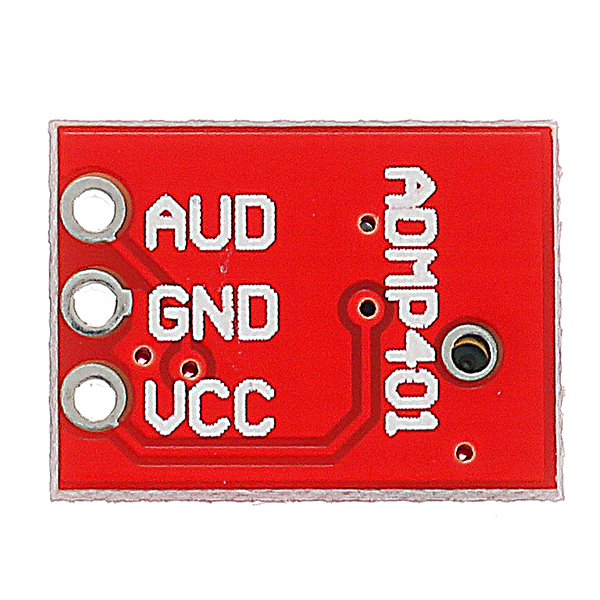

The amplifier on the breakout has a gain of 67 and more than meets the bandwidth requirements of the mic. The amplifier's AUD output will float at one half Vcc when no sound is being picked up. The amplifier produces a peak-to-peak output of about 200mV when the microphone is held at arms length and is being talked into at normal conversational volume levels. So the AUD output can easily be connected to the ADC of a micro.
xa0
Specification:
xa0
-3dB roll off at 100Hz and 15kHz
1.5 to 3.3VDC supply voltage
Should comfortably output 40mW
SNR of -62dBA
xa0
Show More
In-Stock
Qty.
1
Unit Price
$ 17.14
Ext. Price
$ 17.14
$ 17.14
Qty.
Unit Price
Ext. Price
10+
$16.28
$ 162.80
20+
$15.43
$ 308.60
100+
$13.71
$ 1371.00
Specifications
Attribute
Value
Search
Model
ADMP401
Description
1 x ADMP401 Microphone Breakout Module with pins
,
,
