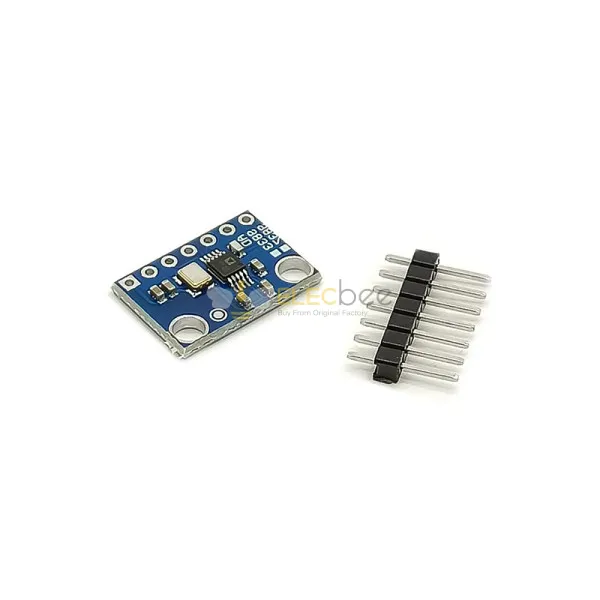

Elecbee AD9833 DDS Signal Generator Module - Programmable Sine, Triangle, Square Wave - 0-12.5MHz SPI Interface
SKU: EB0043194
Favorites
Key Features
Precision Waveform Synthesis: Digitally programmable frequency and phase generator supporting Sine, Triangle, and Square wave outputs.
Wide Frequency Range: Capable of generating output frequencies from 0MHz up to 12.5MHz with a 0.1Hz resolution.
Energy Efficient: Low power consumption of 12.65mW at 3V, suitable for battery-operated or low-power embedded designs.
Flexible SPI Integration: Uses a standard 3-wire SPI interface for easy communication with microcontrollers like Arduino, STM32, or ESP32.
Robust Design: Operates across a wide temperature range (-40°C to +105°C) with no external components required for basic operation.
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth
Model
AD9833
Description
The AD9833 DDS (Direct Digital Synthesis) module is a powerful, programmable waveform generator capable of producing sine, triangular, and square wave outputs. Engineered for high-precision applications, this module solves the need for reliable signal generation in electronic projects, communication systems, and laboratory testing setups without the bulk of traditional signal generators.
Technical specifications include:
- Output Frequencies: 0MHz to 12.5MHz
- Supply Voltage: 2.3V to 5.5V
- Resolution: 0.1Hz resolution with a 25MHz reference clock
- Output Range: 0.65V peak-to-peak maximum output
This module features a 3-wire SPI interface for seamless digital control, allowing you to manipulate frequency and phase via software. Its compact, integrated design removes the need for external components, making it ideal for rapid prototyping. The AD9833 is rated for industrial temperature ranges, ensuring consistent performance in varying environmental conditions.
