Elecbee 10DOF IMU Motion Sensor Module - 9-Axis Gyroscope Accelerometer Magnetometer for Drone & Robot Navigation - IIC/SPI Compatible
SKU: EB0043803
Favorites
Key Features
Comprehensive 10-Axis Sensing: Combines a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer with a high-precision barometer to capture full spatial orientation and altitude data.
High Precision & Adjustable Scales: Features customizable sensitivity ranges: Gyroscope (±250°/s to ±2000°/s), Accelerometer (±2g to ±16g), and Magnetometer (±1.3 to ±8.1 gauss).
Dual Communication Protocols: Supports both IIC and SPI interfaces, ensuring seamless integration with popular development platforms like Arduino, Raspberry Pi, and STM32.
Wide Voltage Compatibility: Built-in voltage regulator supports a 3-5V power input, providing stable performance and protecting sensitive components during operation.
Compact & Ready-to-Use: Ultra-small form factor (38mm × 23mm) with standard 2.54mm headers, making it an ideal "plug-and-play" solution for drones, VR, and wearable tech.
Show More
Specifications
Attribute
Value
Search
Model
DESCRIPTIONIMAGE0
Description

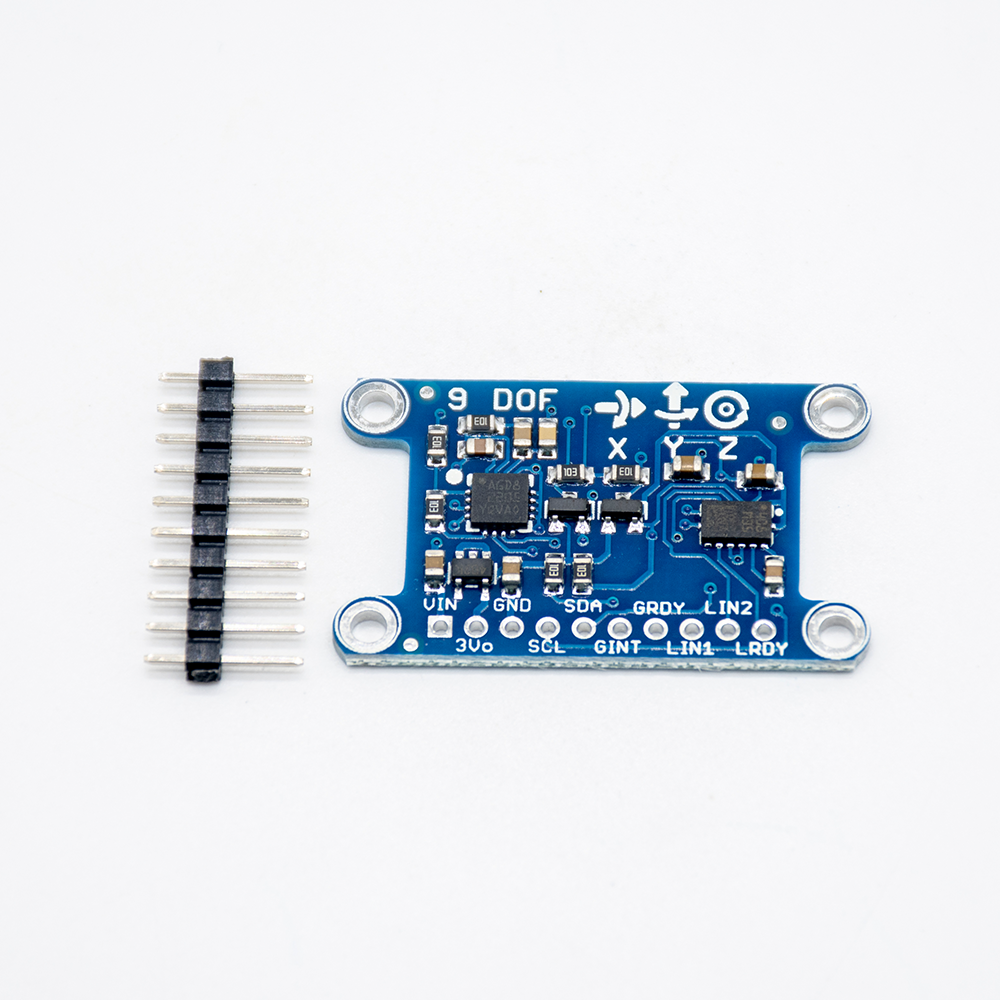

9DOF/10DOF IMU Breakout
The 9DOF/10DOF IMU Breakout is a high-performance, all-in-one motion sensor module. It integrates a 3-axis gyroscope, a 3-axis accelerometer, and a 3-axis magnetometer to capture motion and orientation data across 9 dimensions in real-time (angular velocity, acceleration, and magnetic field direction). This module is widely used in drone stabilization, robot navigation, Virtual Reality (VR), and wearable smart devices. Supporting both I2C and SPI communication protocols, it is compatible with 3-5V wide-voltage power supplies. With its built-in voltage regulation and plug-and-play design, it is the ideal solution for motion sensing and spatial positioning.
Product Features:
- Full-Dimensional Motion Sensing: Integrated 3-axis gyroscope, accelerometer, and magnetometer for precise measurement of angular velocity, acceleration, and magnetic heading.
- High-Precision Adjustable Ranges:
- Gyroscope: ±250°/s to ±2000°/s
- Accelerometer: ±2g to ±16g
- Magnetometer: ±1.3 to ±8.1 Gauss
- Wide Voltage & Stable Supply: Supports 3-5V input with an onboard voltage regulator chip to ensure stable and reliable data output.
- Plug-and-Play Design: Uses standard 2.54mm headers; compatible with I2C/SPI for fast integration with Arduino, Raspberry Pi, and other development platforms.
- Compact & Easy to Integrate: Small footprint (38mm × 23mm), perfect for embedded applications in drones, robotics, and VR.
USB 2.0 High-Speed Hub (4-Port)
This section outlines the high-speed expansion capabilities for peripheral connectivity.
Key Specifications:
- High-Speed Stability: Follows USB 2.0 protocol standards with transmission rates up to 480Mbps for fast and reliable data transfer.
- 1-to-4 Expansion: Features a 1-in, 4-out design, expanding a single port into four independent USB 2.0 interfaces without device conflict.
- Plug and Play: Driver-free design compatible with Windows, macOS, and Linux; automatically recognized upon connection.
- Compact & Portable: Mini chassis design saves space and makes it effortless to carry for business travel or office use.
- Broad Compatibility: Supports desktops, laptops, and All-in-One PCs; compatible with USB drives, keyboards, mice, and external hard drives.
- Stable Power Management: Built-in intelligent circuit protection ensures stable multi-device connections and prevents current fluctuations or data loss.
