Elecbee SSD1306 0.96" OLED Display Module 128x64 7-Pin SPI I2C Dual Color

Elecbee 0.96 Inch OLED Display Module (SSD1306)

The Elecbee 0.96-inch OLED Display Module is a high-contrast, dual-color (Yellow & Blue) screen featuring 128x64 resolution. Driven by the industry-standard SSD1306 controller, this versatile module supports both 7-pin SPI and IIC (I2C) serial interfaces, making it an ideal choice for Arduino, Raspberry Pi, ESP32, and STM32 development projects.

Technical Specifications

• Display Technology: OLED (Self-Emissive, no backlight required)
• Resolution: 128 x 64 Pixels
• Color: Yellow & Blue Dual Color (Yellow top header, Blue main body)
• Driver IC: SSD1306
• Interface Type: 7-Pin SPI & IIC (Default SPI, configurable to IIC)
• Operating Voltage: 3.3V to 5.0V DC
• Viewing Angle: >160°
• Working Temperature: -30°C to 70°C

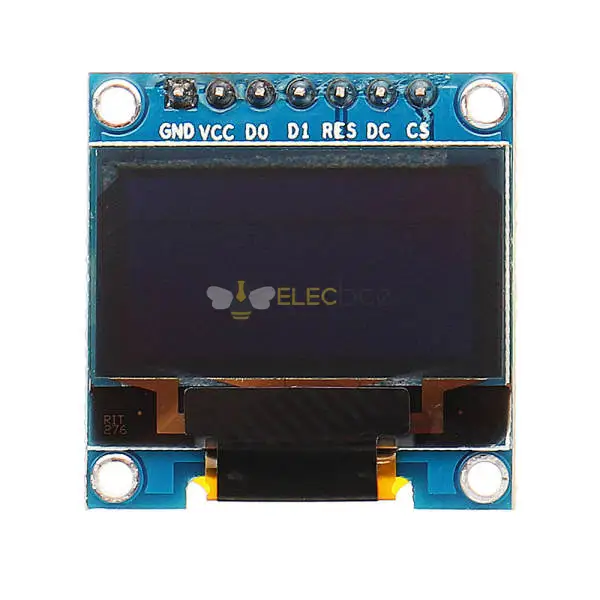

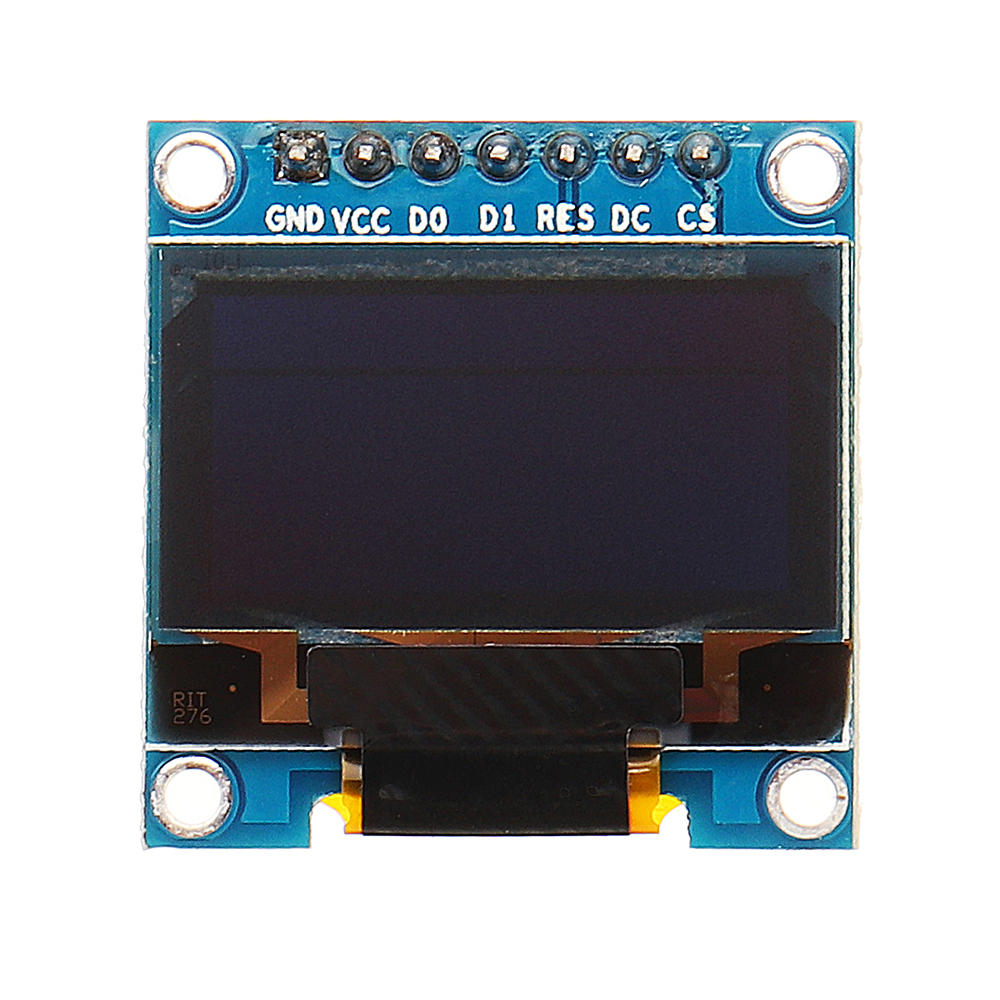

Interface Pin Definitions

• GND: Power Ground
• VCC: Power Positive (3.3V - 5V)
• D0: SPI Clock Line (SCL for IIC)
• D1: SPI Data Line (SDA for IIC)
• RES: OLED Reset (Required once after power-on)
• DC: SPI Data/Command Selection (Sets IIC address in IIC mode)
• CS: SPI Chip Select (Active Low; can be grounded if not in use)

Compatibility & Integration

This module is highly compatible with a wide range of microcontrollers (MCU). It supports both hardware SPI/IIC and software (IO analog) communication methods. For IIC configuration, the DC pin determines the address:

• DC Low: IIC Address 0x78
• DC High: IIC Address 0x7A

Applications

Perfect for industrial instrumentation, smart wearable devices, IoT prototypes, and DIY electronics projects requiring a compact, low-power display solution.

Package Includes

• 1 x 0.96 Inch OLED Display Module (128x64 Yellow & Blue)
