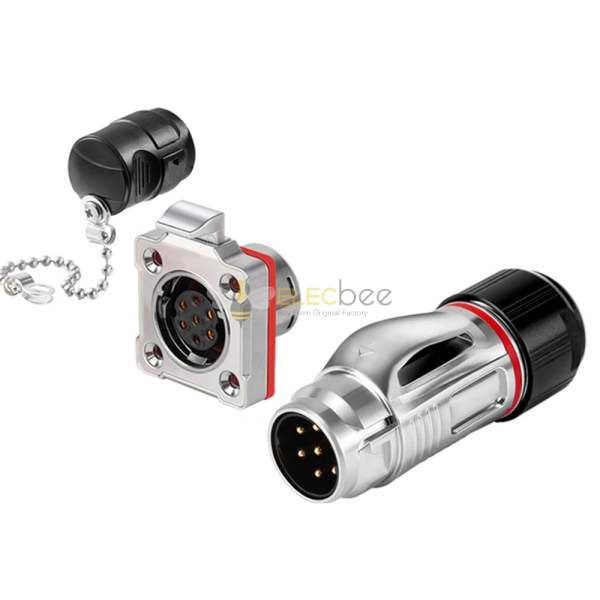

Elecbee 7 Pin Ip65 Waterproof Solder Copper Pin Connector Plug And Socket
SKU: EB-045-0005
Favorites
Key Features
- Designed as a BD20 7-pin plug-and-receptacle connector set, this circular connector supports dependable power or signal interconnection for industrial systems.
- Rated for 10A at 300VAC, it uses solder cup termination for 18–16 AWG conductors and is configured for plug and panel-mount receptacle arrangement.
- The zinc alloy shell, engineering-plastic insulation, and copper alloy contacts with a gold-plated finish provide a durable electrical interface, while the bayonet fastening system helps maintain a secure connection.
- With an IP68 ingress-protection rating and an operating temperature range of -40°C to +85°C, this waterproof circular connector is suitable for industrial equipment, outdoor electronics, and detachable power or signal connections.
Show More
In-Stock
Qty.
1
Unit Price
$ 17.15$ 20.18
Ext. Price
$ 17.15$ 20.18
$ 17.15$ 20.18
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Male，Female Pin
Number of Positions
7 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
10A
Rated Voltage
300VAC
Connector Series
BD20
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
18AWG~16AWG
Description
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
Y
Perfect for my truck's trailer wiring. The IP67 rating really holds up in rain and mud. Easy one-hand connection and the gold-plated pins haven’t corroded after months outside.
U
Solid metal housing feels durable. Took a bit to solder the 7 pins neatly, but once done, the connection is stable. Waterproof seal kept everything dry during a heavy washdown.
D
Used this in an industrial control setup. The compact size fits tight spaces and the quick plug design saves so much time during maintenance checks.
L
Works well overall, but wish it came pre-wired. Soldering the small copper pins was tedious. Still, the waterproof performance is legit.
D
Exactly what I needed for my tractor’s lighting system. Metal BD20 connector locks in securely and handles vibrations no problem.
