Elecbee CJMCU-6814 MiCS-6814 3-Channel Analog Gas Sensor Module, 5 V, CO NO2 NH3 Air Quality Detection

SKU: EB0043047
Favorites

Key Features

3-CHANNEL GAS SENSOR MODULE: The CJMCU-6814 breakout uses a MiCS-6814 MEMS metal-oxide sensor with three independent sensing elements for reducing gases, oxidizing gases and ammonia-related response.

REGULATED 5 V OPERATION: Connect a regulated DC 4.9–5.1 V supply to the +5V and GND pads. The specified operating environment is -30 to 85°C and 5–95% RH; sensor readings vary with temperature, humidity, airflow and warm-up conditions.

THREE ANALOG CHANNELS: Separate CO, NH3 and NO2 pads provide analog resistance-derived signals for a host ADC or measurement circuit. Typical detectable ranges are CO 1–1000 ppm, NO2 0.05–10 ppm and NH3 1–500 ppm; calibration is required for concentration estimates.

COMPACT PURPLE BREAKOUT: The module measures approximately 16.9 x 14.1 x 3.2 mm and includes two M3 mounting holes. Its five through-hole connections are labeled CO, NH3, NO2, GND and +5V. Package includes 1 gas sensor module.

DEVELOPMENT AND MONITORING PROJECTS: Suitable for prototyping air-quality, exhaust, industrial-odor and agricultural-odor monitoring systems. Gas responses overlap, so this module is not a selective laboratory analyzer or a certified life-safety, fire or gas-alarm device.

Show More
In-Stock
Qty.
1
Unit Price
$ 32.99
Ext. Price
$ 32.99
$ 32.99
Qty.
Unit Price
Ext. Price
10+
$32.00
$ 320.00
100+
$30.35
$ 3035.00
Inquiry for more quantity?
Description

MiCS-6814 · 3 ANALOG CHANNELS · 5 V

Compact Multi-Gas Sensing for Development Projects

The Elecbee CJMCU-6814 module combines a MiCS-6814 MEMS metal-oxide sensor with separate CO, NH3 and NO2 analog signal connections for experimental air-quality and odor-monitoring systems.

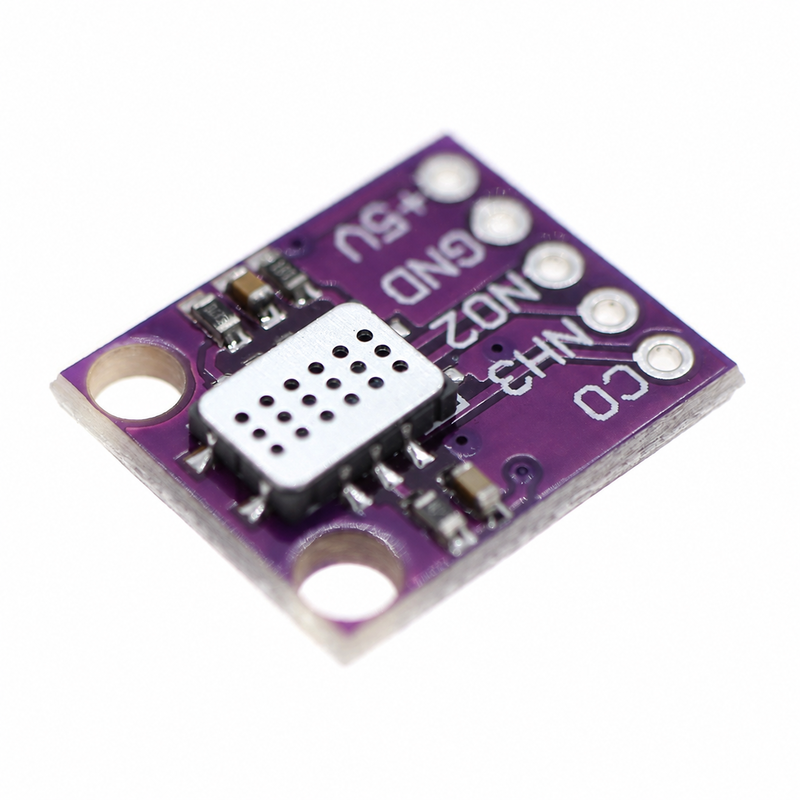

Angled view of the purple CJMCU-6814 module with shielded MiCS-6814 gas sensor

SENSING STRUCTURE

Three Independent Metal-Oxide Elements

The MiCS-6814 package contains three independent heated sensing elements: one for oxidizing-gas response, one for reducing-gas response and one optimized for ammonia-related response. The module exposes these channels as CO, NO2 and NH3 analog connections for measurement by an external controller or ADC circuit.

CO ChannelReducing-gas response; also cross-sensitive to gases such as ethanol and hydrogen.
NO2 ChannelOxidizing-gas sensing channel with a typical NO2 range of 0.05–10 ppm.
NH3 ChannelAmmonia-oriented response with a typical detectable range of 1–500 ppm.

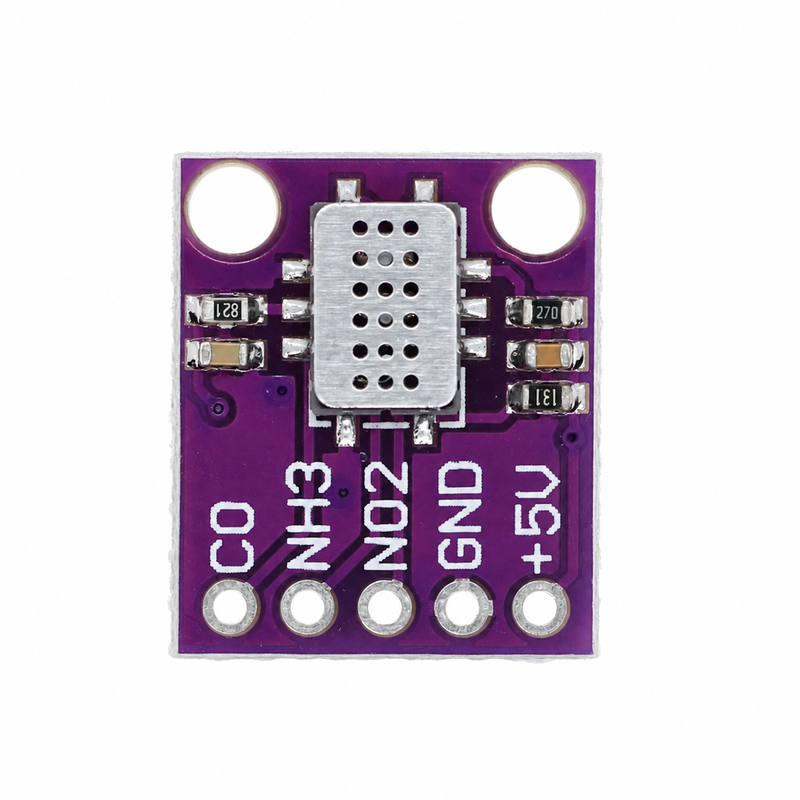

Front view showing CO NH3 NO2 GND and 5V labels on the CJMCU-6814 board

TECHNICAL DATA

Key Specifications

Listing Brand Elecbee
Module Model CJMCU-6814
Sensor MiCS-6814, three independent MOS sensing elements
Supply Voltage DC 4.9–5.1 V
Signal Type Three analog resistance-derived channels
Connection Labels CO, NH3, NO2, GND and +5V
Typical CO Range 1–1000 ppm
Typical NO2 Range 0.05–10 ppm
Typical NH3 Range 1–500 ppm
Other Responsive Gases Ethanol 10–500 ppm; hydrogen 1–1000 ppm; methane, propane and iso-butane above 1000 ppm
Operating Temperature -30 to 85°C
Operating Humidity 5–95% RH
Module Size Approximately 16.9 x 14.1 x 3.2 mm
Mounting Two M3 mounting holes

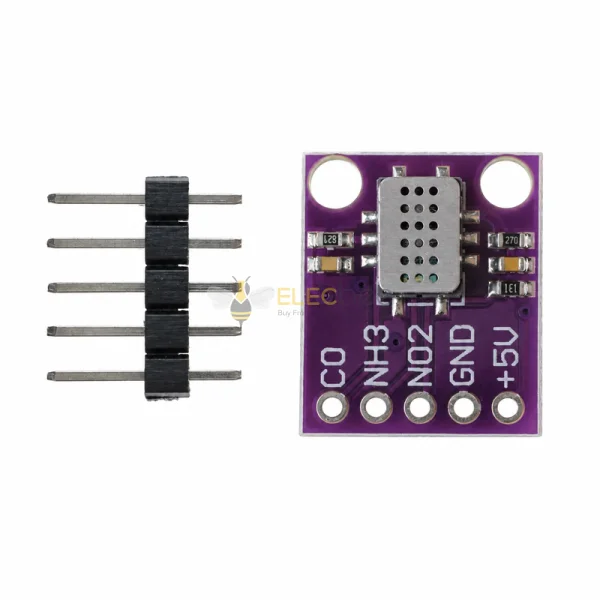

CJMCU-6814 analog gas sensor board shown beside a loose five-pin header

CONNECTION AND MEASUREMENT

Read Each Analog Channel with a Host ADC

Supply regulated 5 V power through +5V and GND, then connect the CO, NH3 and NO2 signal pads to suitable analog inputs. The outputs reflect sensing-resistance changes rather than ready-calculated concentration values.

Allow the heated sensor to stabilize and establish application-specific baselines. Converting the signals into estimated ppm values requires calibration against known gas concentrations while accounting for temperature, humidity, airflow, sensor-to-sensor variation and cross-sensitivity.

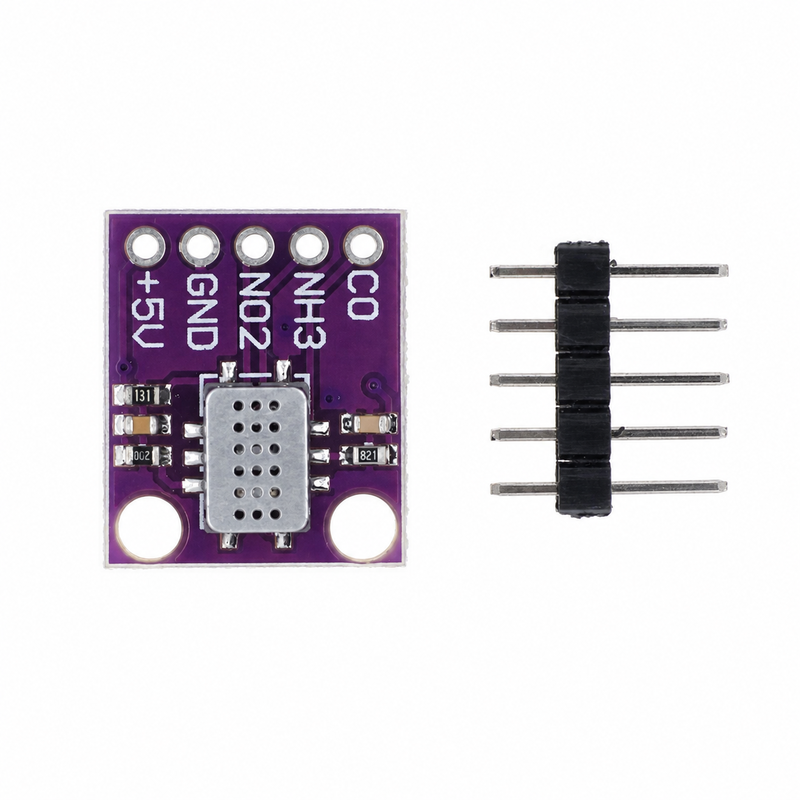

Rotated CJMCU-6814 module view showing the five labeled through-hole connections

APPLICATIONS

For Air-Quality and Odor-Monitoring Prototypes

The compact board can be integrated into development projects involving vehicle-exhaust trends, indoor or outdoor air-quality experiments, industrial odors, agricultural odors and multi-gas response logging. Use the individual channels as response indicators unless the complete system has been calibrated for the intended gases and environment.

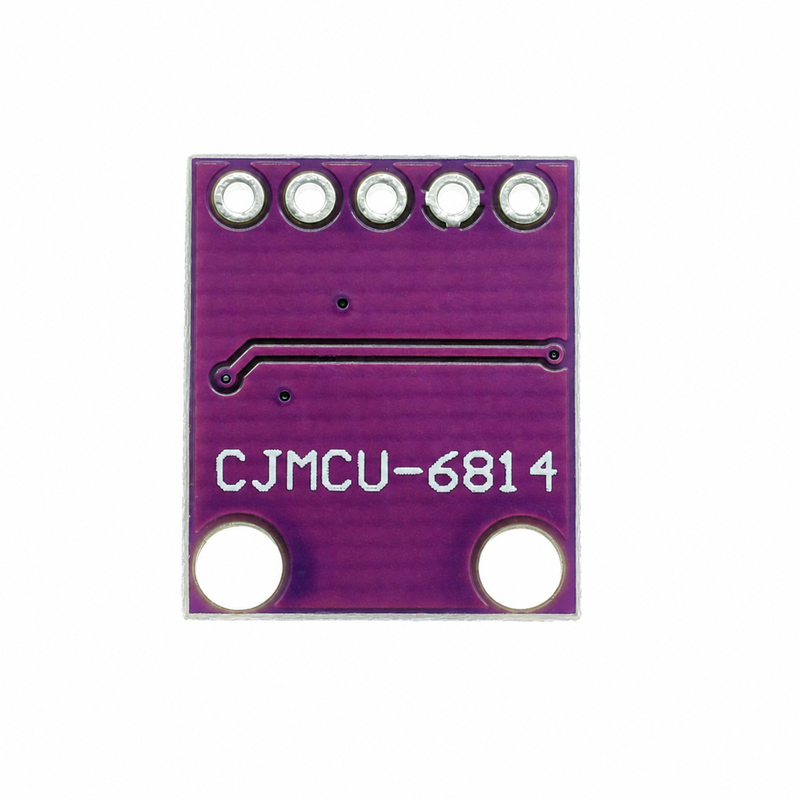

Rear view of the purple gas sensor PCB with CJMCU-6814 model marking
Important Measurement LimitationThe stated ppm values are typical detectable ranges, not guaranteed accuracy specifications. The sensing channels are cross-sensitive and require warm-up, signal conditioning and calibration. Do not use this module as the sole basis for life-safety decisions or as a replacement for a certified CO, combustible-gas, fire or industrial safety alarm.
Package Contents1 x CJMCU-6814 MiCS-6814 gas sensor module
